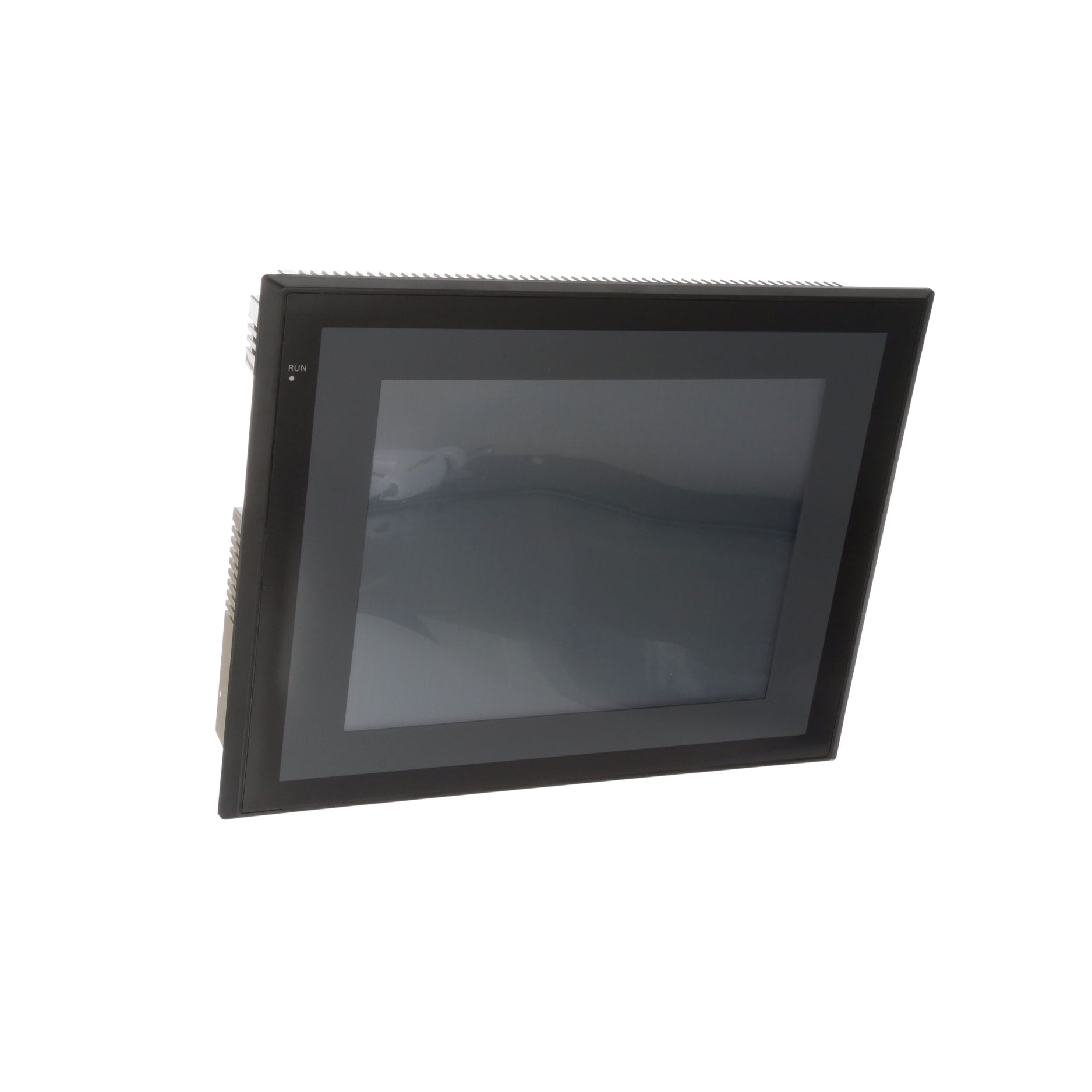

Omron NS10-TV01B-V2 | 10.4" HMI Touchscreen

Omron NS10-TV01B-V2 | 10.4" HMI Touchscreen – NS Series Operator Interface

Overview

The Omron NS10-TV01B-V2 is a 10.4-inch HMI touchscreen from the NS Series, designed to provide a high-performance interface for machine automation. Featuring a TFT color LCD, built-in Ethernet, and RS-232C ports, it ensures seamless communication with Omron PLCs and other industrial devices. Its robust design and versatile features make it suitable for a wide range of industrial applications.

Key Features

• Display Size: 10.4 inches

• Display Type: TFT color LCD

• Resolution: 640 × 480 pixels (VGA)

• Backlight: LED backlight

• Touch Panel: Analog resistive

• Ports:

  • 2 × RS-232C

  • 1 × Ethernet (10Base-T/100Base-TX)

• Memory: Approximately 60 MB for screen data

• Software Compatibility: Works with Omron CX-Designer

• Alarm and Data Logging: Supports alarm handling and data logging functions

• Expansion Options: Supports optional video input units for camera integration

Technical Specifications

• Model Number: NS10-TV01B-V2

• Series: NS Series

• Display Size: 10.4 inches

• Display Type: TFT color LCD

• Resolution: 640 × 480 pixels (VGA)

• Touch Panel: Analog resistive

• Interface Ports:

  • 2 × RS-232C

  • 1 × Ethernet (10Base-T/100Base-TX)

• Rated Power Supply Voltage: 24V DC

• Power Consumption: 25 W max

• Operating Temperature: 0°C to +50°C

• Mounting Type: Panel mount

• Protection Rating: IP65 front panel (when properly mounted)

• Weight: Approximately 2.0 kg

• Certifications: CE, UL, RoHS

Applications

• Factory Automation: Provides intuitive control and monitoring for automated systems

• Process Control: Facilitates real-time data visualization and control in process industries

• Packaging Machinery: Enhances user interaction with packaging equipment

• OEM Equipment: Ideal for integration into custom machinery requiring a graphical interface

Why Choose Omron NS10-TV01B-V2?

• Clear and Spacious Display: 10.4-inch screen with VGA resolution for detailed visuals

• Versatile Communication: Multiple ports including Ethernet and RS-232C for flexible connectivity

• Robust Design: IP65-rated front panel ensures durability in industrial environments

• Expandable Functionality: Supports additional modules for video input and other features

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron PLCs, CX-Designer software, communication cables, and accessories to complete your automation setup.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
