Omron NB7W-TW01B-V1 | 7" Color Touchscreen HMI

Omron NB7W-TW01B-V1 | Versatile 7-Inch HMI for Industrial Automation

Overview

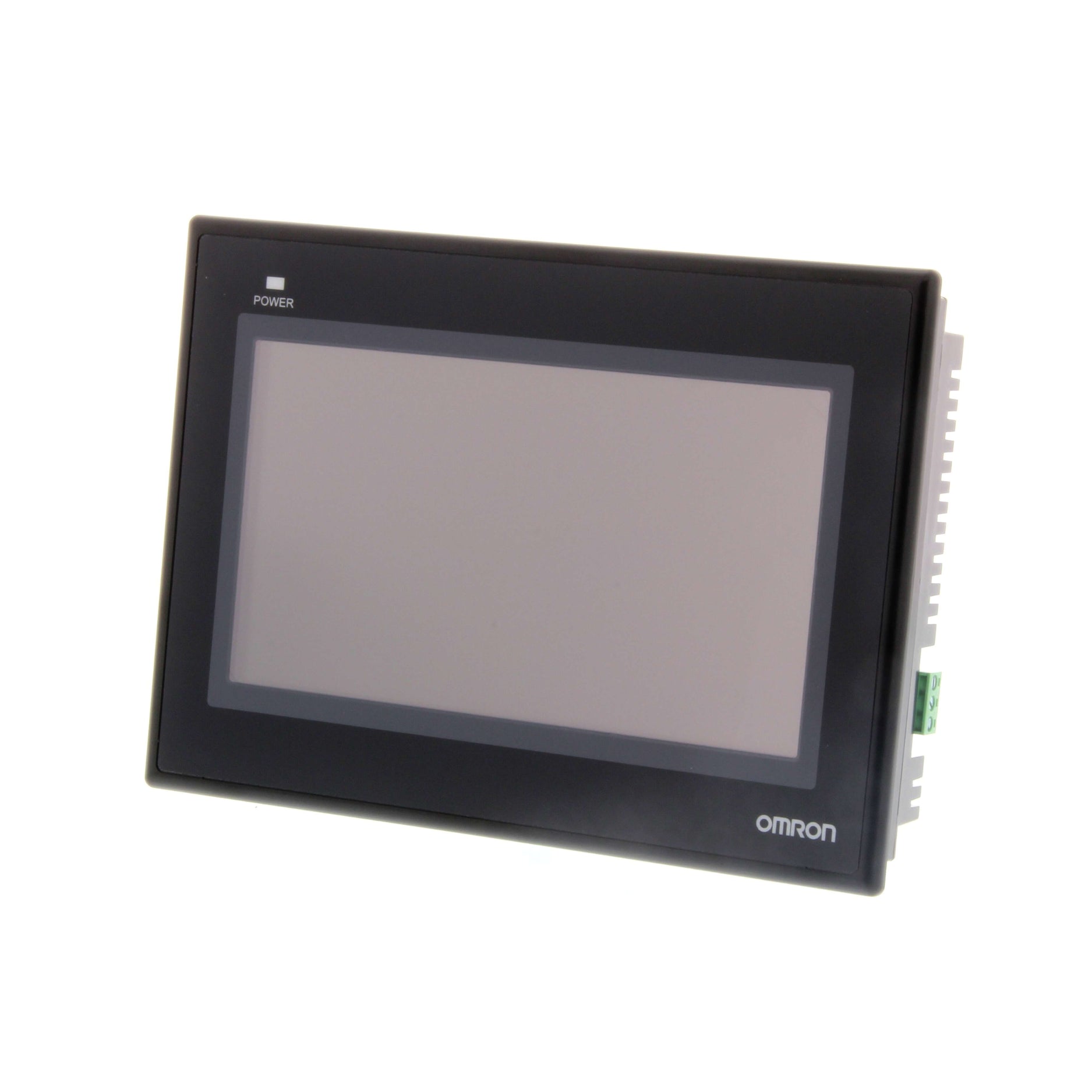

The Omron NB7W-TW01B-V1 is a feature-rich 7-inch TFT color touchscreen Human-Machine Interface (HMI) designed to provide intuitive and efficient control in industrial automation systems. With a resolution of 800×480 pixels, built-in Ethernet and USB host ports, and a robust IP65-rated front panel, this HMI ensures reliable performance and seamless integration into various industrial environments.

Key Features

• Display: 7-inch TFT color LCD with 65,536 colors and 800×480 pixel resolution, delivering clear and vibrant visuals.

• Touchscreen: Analog resistive membrane type with a resolution of 1024×1024 and a lifespan of 1 million touch operations.

• Connectivity:

  • Ethernet Port: 10/100 Base-T for network communication.

  • USB Host Port: Supports USB memory devices for data transfer and storage.

  • Serial Ports: Two RS-232 ports and one RS-422/485 port for versatile device connections.

• Backlight: Long-life LED with an estimated lifespan of 50,000 hours at normal temperature (25°C).

• Durability: IP65-rated front panel, offering protection against dust and water ingress.

• Compact Design: Dimensions of 148 mm (H) × 202 mm (W) × 46 mm (D), with a panel cutout size of 137 mm (H) × 191 mm (W).

• Operating Temperature: Suitable for environments ranging from 0°C to 50°C.

• Power Supply: Operates on 24 VDC with a power consumption of 7 W.

Technical Specifications

• Model Number: NB7W-TW01B-V1

• Display Type: 7-inch TFT color LCD

• Resolution: 800×480 pixels

• Number of Colors: 65,536

• Touch Panel Type: Analog resistive membrane

• Touch Panel Resolution: 1024×1024

• Touch Panel Lifespan: 1 million operations

• Ethernet Port: 1 (10/100 Base-T)

• USB Host Port: 1 (Type A, USB 2.0 full speed, output power 5 V, 150 mA)

• Serial Ports:

  • COM1: RS-232C

  • COM2: RS-232C/RS-422/RS-485 (not isolated)

• Backlight Type: LED

• Backlight Lifespan: 50,000 hours at 25°C

• Front Panel Protection: IP65

• Dimensions: 148 mm (H) × 202 mm (W) × 46 mm (D)

• Panel Cutout Dimensions: 137 mm (H) × 191 mm (W)

• Weight: Approximately 705 g

• Operating Temperature Range: 0°C to 50°C

• Storage Temperature Range: -20°C to 60°C

• Operating Humidity Range: 10% to 90% RH (non-condensing)

• Power Supply Voltage: 24 VDC (20.4 to 27.6 VDC)

• Power Consumption: 7 W

• Certifications: CE, cUL508, KC

Applications

• Manufacturing: Provides operators with real-time data visualization and control over production processes.

• Packaging: Facilitates user-friendly interfaces for packaging machinery, enhancing efficiency and reducing downtime.

• Process Control: Enables monitoring and control of various process parameters in industries such as chemical, pharmaceutical, and food processing.

• Building Automation: Serves as an interface for managing HVAC systems, lighting, and other building controls.

Why Choose Omron NB7W-TW01B-V1?

• High-Quality Display: The 7-inch TFT screen offers clear and vibrant visuals, enhancing user experience.

• Versatile Connectivity: Multiple communication ports, including Ethernet and USB host, allow seamless integration with various devices and networks.

• Durable and Reliable: The IP65-rated front panel ensures durability in harsh industrial environments.

• User-Friendly Interface: The resistive touchscreen provides responsive and accurate control, suitable for various applications.

• Compact and Efficient: Its compact design allows for easy installation in space-constrained panels, while the efficient power consumption ensures cost-effectiveness.

Order Now

The Omron NB7W-TW01B-V1 is available for immediate shipping worldwide. Enhance your industrial automation systems with this reliable and versatile HMI. Contact us today to place your order or to learn more about compatible accessories and support services.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
