Omron NA5-7W001B-V1

Omron NA5-7W001B-V1 | Advanced 7-Inch Widescreen HMI for Enhanced Machine Interaction

Overview

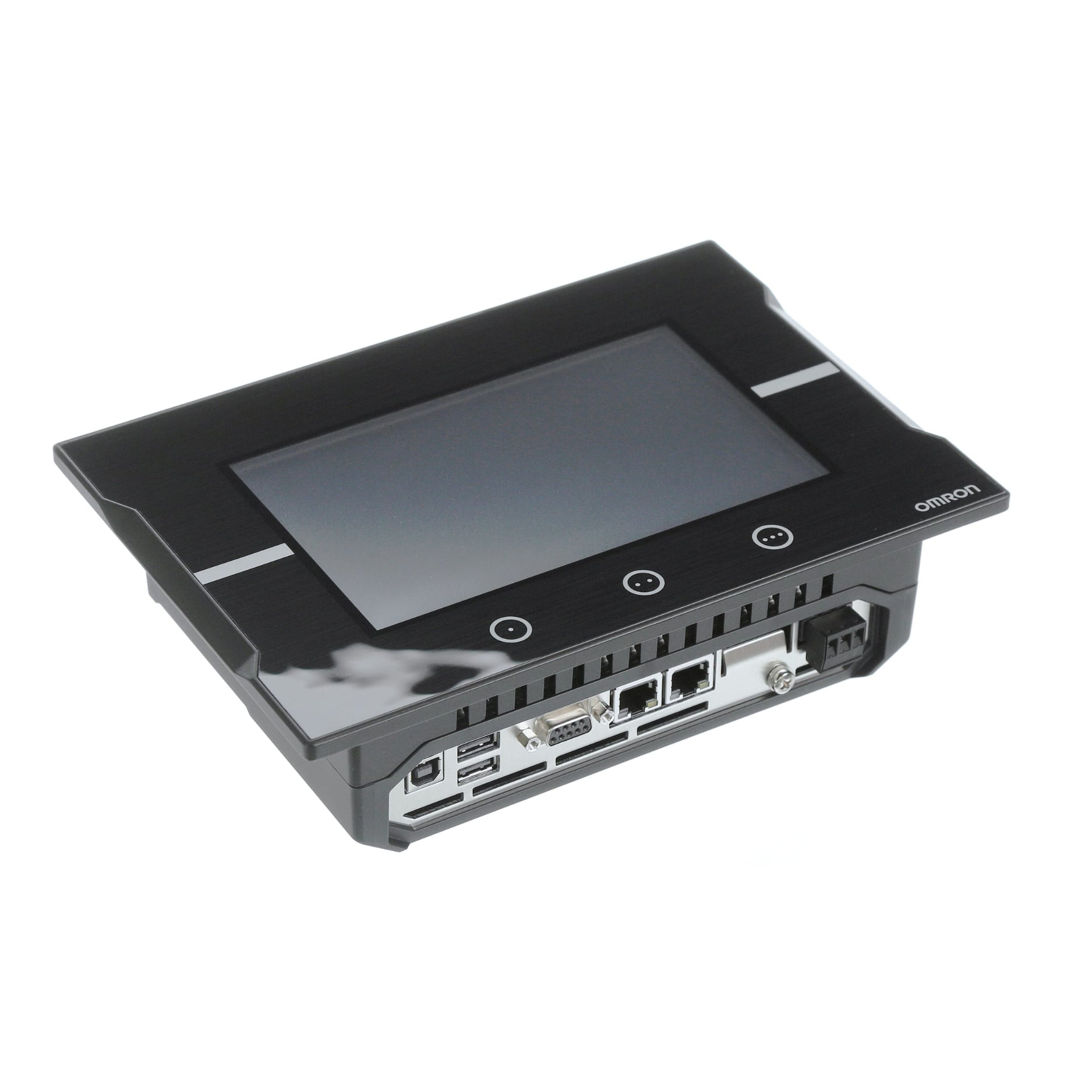

The Omron NA5-7W001B-V1 is a state-of-the-art Human-Machine Interface (HMI) designed to provide intuitive and efficient control over industrial automation systems. Featuring a 7-inch widescreen TFT LCD with a resolution of 800×480 pixels and support for 16.7 million colors, this HMI delivers clear and vibrant displays for enhanced user experience. Its robust design and versatile connectivity options make it suitable for a wide range of industrial applications.

Key Features

• Display: 7-inch widescreen TFT LCD with 800×480 resolution and 16.7 million colors for detailed and vivid visuals.

• Touchscreen Interface: Analog resistive touch panel supporting precise and responsive user interactions.

• Durable Construction: Front panel rated IP65, providing protection against dust and water, suitable for harsh industrial environments.

• Multiple Communication Ports:

  • Ethernet Ports: Two ports for network connectivity and integration with other devices.

  • USB Ports: Three ports (two host, one slave) for peripheral connections and data transfer.

  • RS-232C Port: One port for serial communication with compatible devices.

• Power Supply: Operates on 24 VDC, aligning with standard industrial power systems.

• Compact Design: Dimensions of 236 mm (W) × 165 mm (H) × 69 mm (D), facilitating easy installation in control panels.

Technical Specifications

• Model Number: NA5-7W001B-V1

• Display Size: 7 inches

• Display Resolution: 800×480 pixels

• Display Colors: 16,770,000 colors (24-bit full color)

• Touch Panel: Analog resistive membrane (pressure-sensitive)

• Communication Ports:

  • Ethernet: 2 ports

  • USB: 3 ports (2 host, 1 slave)

  • RS-232C: 1 port

• Power Supply Voltage: 24 VDC

• Power Consumption: 19 W max

• Operating Temperature Range: 0°C to 50°C

• Front Panel Protection: IP65

• Dimensions: 236 mm (W) × 165 mm (H) × 69 mm (D)

• Panel Cutout Dimensions: 197 mm (W) × 141 mm (H)

• Weight: Approximately 1.4 kg

• Certifications: CE, cULus, KC, RCM

Applications

• Industrial Automation: Provides operators with intuitive control and monitoring interfaces for machinery and processes.

• Process Control: Facilitates real-time data visualization and interaction in various process industries.

• Machine Control Panels: Enhances user experience with clear displays and responsive controls in machine interfaces.

• Building Automation: Enables centralized control and monitoring of building systems such as HVAC, lighting, and security.

Why Choose Omron NA5-7W001B-V1?

• High-Quality Display: Delivers crisp and vibrant visuals, enhancing operator interaction and reducing errors.

• Robust and Reliable: Built to withstand industrial environments with IP65-rated front panel protection.

• Versatile Connectivity: Multiple communication ports ensure seamless integration with various devices and networks.

• User-Friendly Interface: Intuitive touchscreen and customizable display options improve operational efficiency.

• Compact and Efficient: Space-saving design allows for easy installation without compromising on functionality.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron PLCs, sensors, and other automation components to complete your system setup.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
