Omron CP1W-ADB21 | 2-Channel Analog Input Option Board for CP1L-EL/EM PLCs

Overview

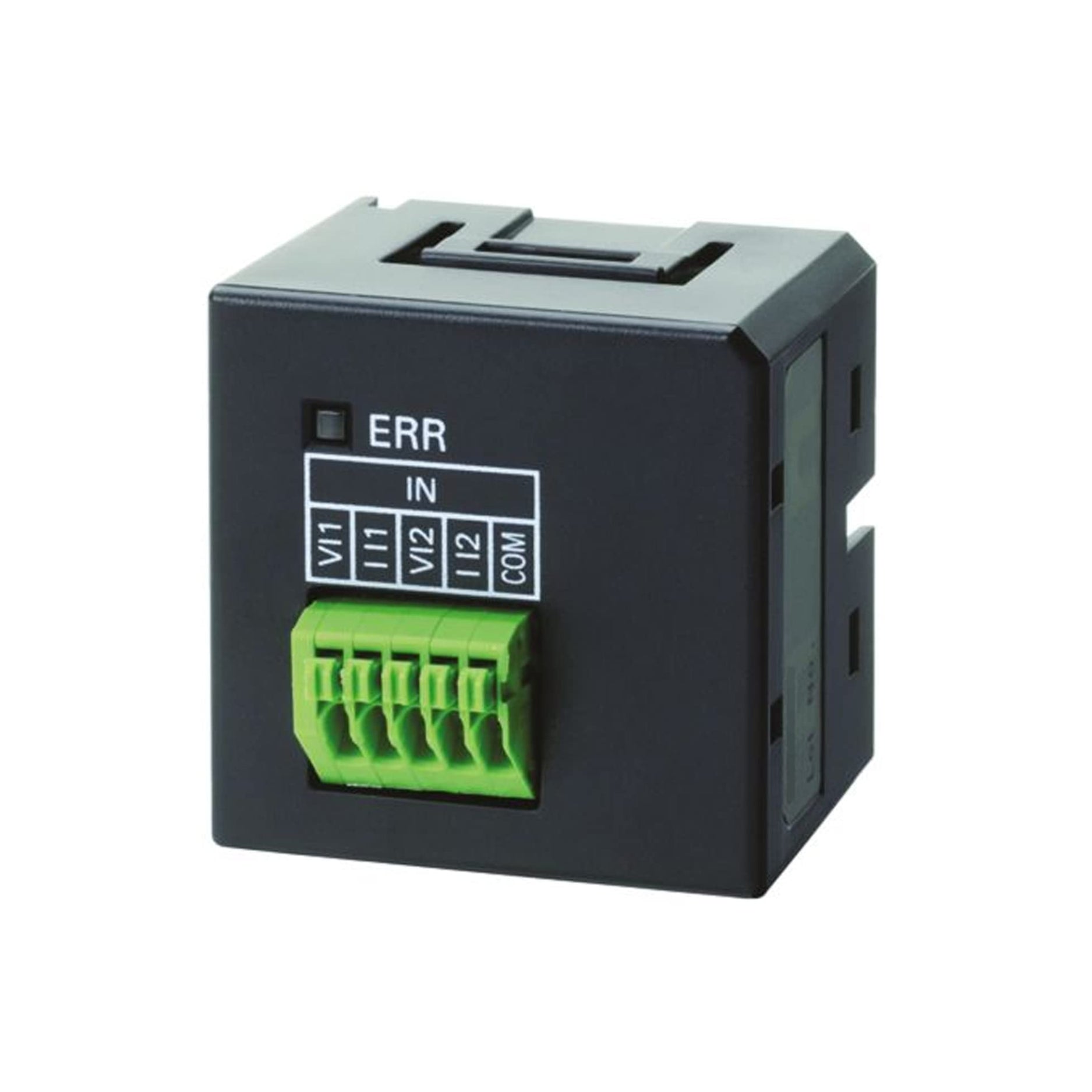

The Omron CP1W-ADB21 is a 2-channel analog input option board designed to expand the input capabilities of Omron CP1L-EL/EM series Programmable Logic Controllers (PLCs). It supports both 0–10 VDC and 4–20 mA input signals, offering high-resolution data acquisition for precise analog signal processing in various industrial applications.

Key Features

• Dual Analog Input Channels: Allows for simultaneous measurement of two analog signals.

• Versatile Input Ranges:

  • Voltage Input: 0 to 10 VDC with a resolution of 1/4000.

  • Current Input: 4 to 20 mA with a resolution of 1/2000.

• High Accuracy: Ensures precise data acquisition for critical control processes.

• Compact Integration: Designed to fit seamlessly into CP1L-EL/EM PLCs without increasing the overall footprint.

• Easy Installation: Mounts directly onto the PLC, simplifying system expansion.

Technical Specifications

• Model Number: CP1W-ADB21

• Number of Analog Inputs: 2

• Input Signal Ranges:

  • Voltage: 0 to 10 VDC (1/4000 resolution)

  • Current: 4 to 20 mA (1/2000 resolution)

• Input Impedance:

  • Voltage Input: 1 MΩ minimum

  • Current Input: Approximately 250 Ω

• Conversion Time: 2 ms per point

• Overall Accuracy:

  • Voltage Input: ±0.6% of full scale at 0 to 55°C

  • Current Input: ±0.8% of full scale at 0 to 55°C

• Power Consumption: 5 VDC, 40 mA max.

• Operating Temperature Range: 0°C to 55°C

• Storage Temperature Range: -20°C to 75°C

• Operating Humidity Range: 10% to 90% (non-condensing)

• Mounting Method: Directly onto CP1L-EL/EM PLCs

• Certifications: CE

Applications

• Process Monitoring: Enables precise measurement of analog variables such as temperature, pressure, and flow in industrial processes.

• Machine Automation: Facilitates accurate data acquisition from analog sensors for enhanced machine control and diagnostics.

• Energy Management: Assists in monitoring and analyzing energy consumption by interfacing with various analog transducers.

Why Choose Omron CP1W-ADB21?

• Enhanced Input Capability: Expands the analog input capacity of CP1L-EL/EM PLCs, allowing for more comprehensive data collection.

• High-Resolution Measurements: Provides detailed and accurate analog signal readings essential for precise control applications.

• Seamless Integration: Specifically designed for compatibility with CP1L-EL/EM PLCs, ensuring easy installation and reliable operation.

• Compact Design: Adds functionality without increasing the physical size of the PLC system, maintaining space efficiency in control panels.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CP1L-EL/EM PLCs, analog output modules, and other automation components to complete your system configuration.
