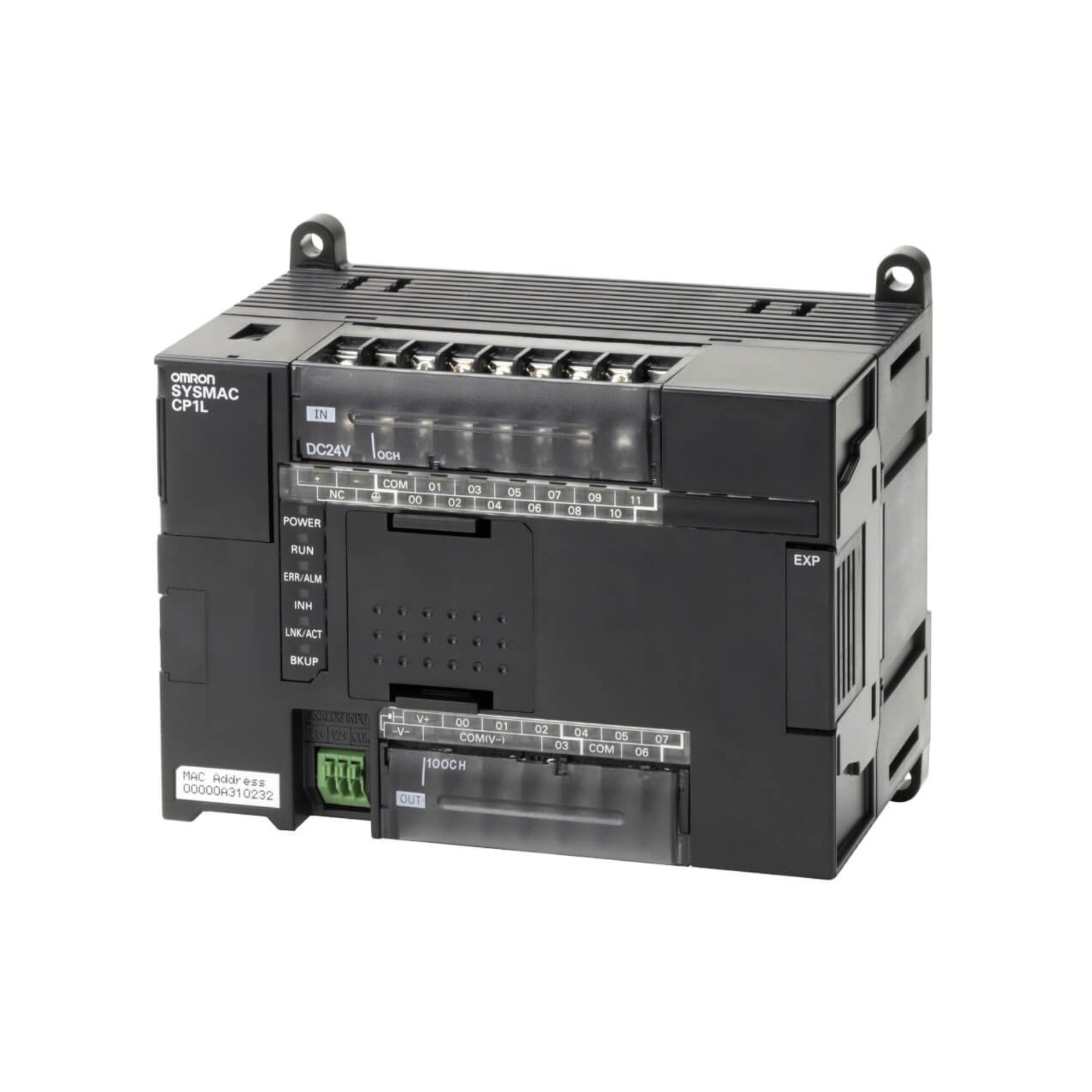

Omron CP1L-EL20DR-D | 20 I/O PLC

Omron CP1L-EL20DR-D | Compact Programmable Logic Controller with Relay Outputs and Ethernet

Overview

The Omron CP1L-EL20DR-D is a 20 I/O compact PLC equipped with 12 digital inputs and 8 relay outputs. Designed with built-in Ethernet and USB programming ports, it’s perfect for small to mid-sized automation projects. The controller is compatible with CP1W and CJ1W expansion units, offering flexible scalability for various applications.

Key Features

• Digital Inputs: 12

• Relay Outputs: 8

• Built-in Ethernet Port for networking and remote access

• USB Port for easy programming

• Expandable: Supports CP1W and CJ1W I/O units

• Program Capacity: 10K steps

• Data Memory: 10K words

• Compact DIN Rail Mounting Design

Technical Specifications

• Model: CP1L-EL20DR-D

• Power Supply: 24 VDC

• Input Type: DC (PNP/NPN selectable)

• Output Type: Relay (max. 2 A per point)

• Max I/O Expansion: Up to 160 I/O points

• Communication: Ethernet, USB

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus

Applications

• Small Machines & OEM Panels

• Conveyor and Material Handling Systems

• Packaging Equipment

• Building Automation

Why Choose CP1L-EL20DR-D?

• Affordable and Expandable

• Integrated Networking

• Reliable Omron Quality

• Flexible I/O Options

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
