Overview

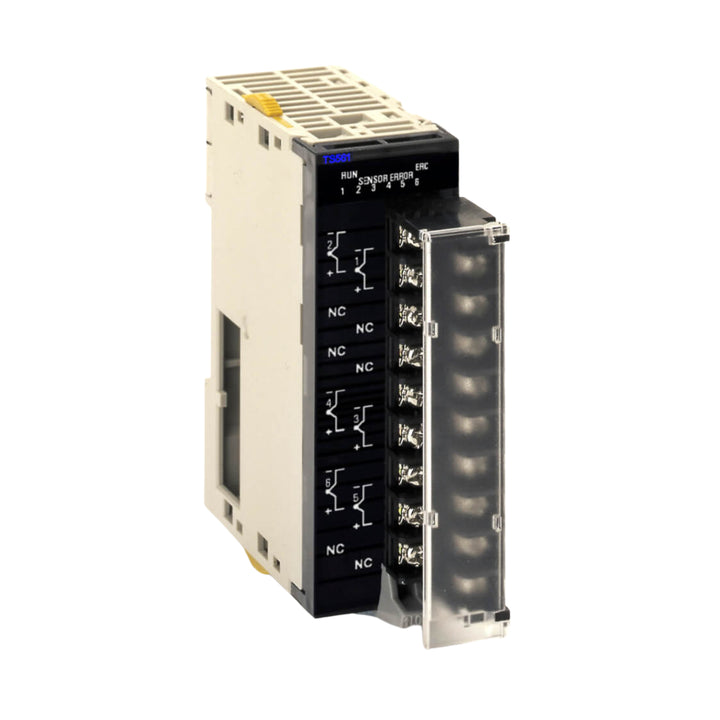

The Omron CJ1W-TS561 is a 6-channel thermocouple input unit designed for seamless integration with Omron's CJ-series Programmable Logic Controllers (PLCs). It supports J-type and K-type thermocouples, providing precise temperature measurements with a resolution of 0.1°C, making it ideal for applications requiring accurate thermal monitoring and control.

Key Features

• Multiple Input Channels: Accommodates up to 6 thermocouple inputs, allowing for comprehensive temperature data collection.

• Thermocouple Compatibility: Supports both J-type (-100.0 to +850.0°C) and K-type (-200.0 to +1300.0°C) thermocouples.

• High Resolution: Delivers temperature readings with a 0.1°C resolution, ensuring detailed and accurate monitoring.

• Cold Junction Compensation: Internal measurement of terminal temperature for enhanced accuracy.

• Configurable Filtering: Adjustable input filtering to suppress noise at 10 Hz, 50 Hz, 60 Hz, or 100 Hz, optimizing response times.

• Compact Design: Dimensions of 31 mm (W) × 90 mm (H) × 65 mm (D), facilitating easy installation within control panels.

• Easy Integration: Occupies 48, 64, or 96 I/O points, depending on the number of active inputs, and integrates seamlessly into the CJ-series PLC I/O architecture.

Technical Specifications

• Model Number: CJ1W-TS561

• Number of Inputs: 6

• Supported Thermocouple Types: J-type, K-type

• Measurement Range:

  • J-type: -100.0 to +850.0°C

  • K-type: -200.0 to +1300.0°C

• Resolution: 0.1°C

• Indication Accuracy: ±0.5% of indicated value or ±0.7°C (whichever is larger) ±1 digit max.

• Input Response Time: Configurable per active input:

  • 40 ms (100 Hz suppression)

  • 67 ms (60 Hz suppression)

  • 80 ms (50 Hz suppression)

  • 400 ms (10 Hz suppression)

• Input Update Cycle Time: Calculated as [number of active inputs + 1] × [input response time] + 40 ms

• Internal Current Consumption: 220 mA max. at 5 VDC

• Mounting: DIN rail

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus

Applications

• Industrial Process Control: Monitor and regulate temperatures in processes such as chemical production, food processing, and metal treatment.

• Machine Temperature Monitoring: Track thermal conditions in machinery to prevent overheating and ensure optimal performance.

• Environmental Chambers: Precisely control temperatures within test chambers for product testing and quality assurance.

• HVAC Systems: Integrate into heating, ventilation, and air conditioning systems for accurate temperature management.

Why Choose Omron CJ1W-TS561?

• Enhanced Accuracy: High-resolution measurements with cold junction compensation ensure precise temperature readings.

• Flexible Configuration: Supports both J-type and K-type thermocouples with configurable filtering options to suit various applications.

• Seamless Integration: Designed specifically for CJ-series PLCs, ensuring compatibility and straightforward installation.

• Compact and Efficient: Small form factor allows for efficient use of control panel space without compromising functionality.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CJ-series PLCs, additional I/O modules, and other automation components to complete your system setup.
