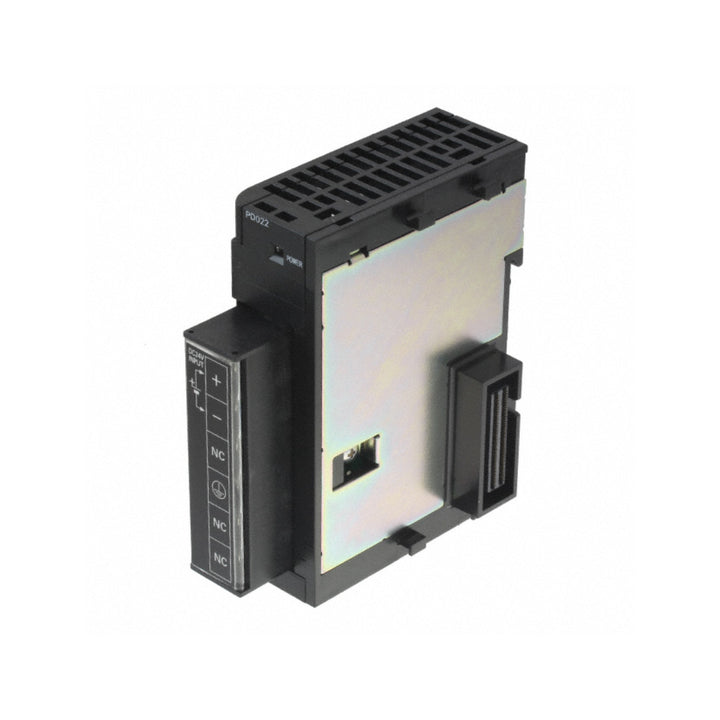

Omron CJ1W-PD022

Omron CJ1W-PD022 | Compact and Reliable 24 VDC Power Supply for CJ-Series PLCs

Overview

The CJ1W-PD022 is a DC power supply unit designed specifically for Omron’s CJ-Series PLC systems. Delivering stable output voltages of 5 VDC and 24 VDC, this unit is essential for powering CPU, I/O, and communication modules in compact and mid-sized automation setups.

Key Features

• Input Voltage: Accepts 24 VDC input

• Output Power: Delivers 2 A at 5 VDC and 0.4 A at 24 VDC, totaling 19.6 W

• Compact Design: Narrow width (27 mm) ideal for limited panel space

• Mounting Style: DIN rail mount

• Terminal Type: Screw terminals for easy and secure wiring

• Operating Temp Range: 0°C to 55°C

Technical Specifications

• Model Number: CJ1W-PD022

• Input Voltage: 24 VDC (21.6 to 26.4 VDC range)

• Output Voltage: 5 VDC (2 A), 24 VDC (0.4 A)

• Total Output Power: 19.6 W

• Inrush Current: 30 A max. at power-on

• Mounting: DIN rail

• Dimensions: 90 mm (H) × 27 mm (W) × 81.6 mm (D)

• Weight: Approx. 130 g

• Certifications: CE, cULus

Applications

• CJ-Series PLC Systems

• Compact Control Panels

• Factory Automation Equipment

• Powering CPU and I/O Modules

Why Choose Omron CJ1W-PD022?

• Reliable and stable power for your CJ-Series system

• Space-saving design for efficient panel layouts

• Quick and easy wiring via screw terminals

• Trusted Omron quality and compliance with global standards

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
