Omron CJ1W-PA202

Omron CJ1W-PA202 | Compact Power Supply Module for CJ-Series PLCs

Overview

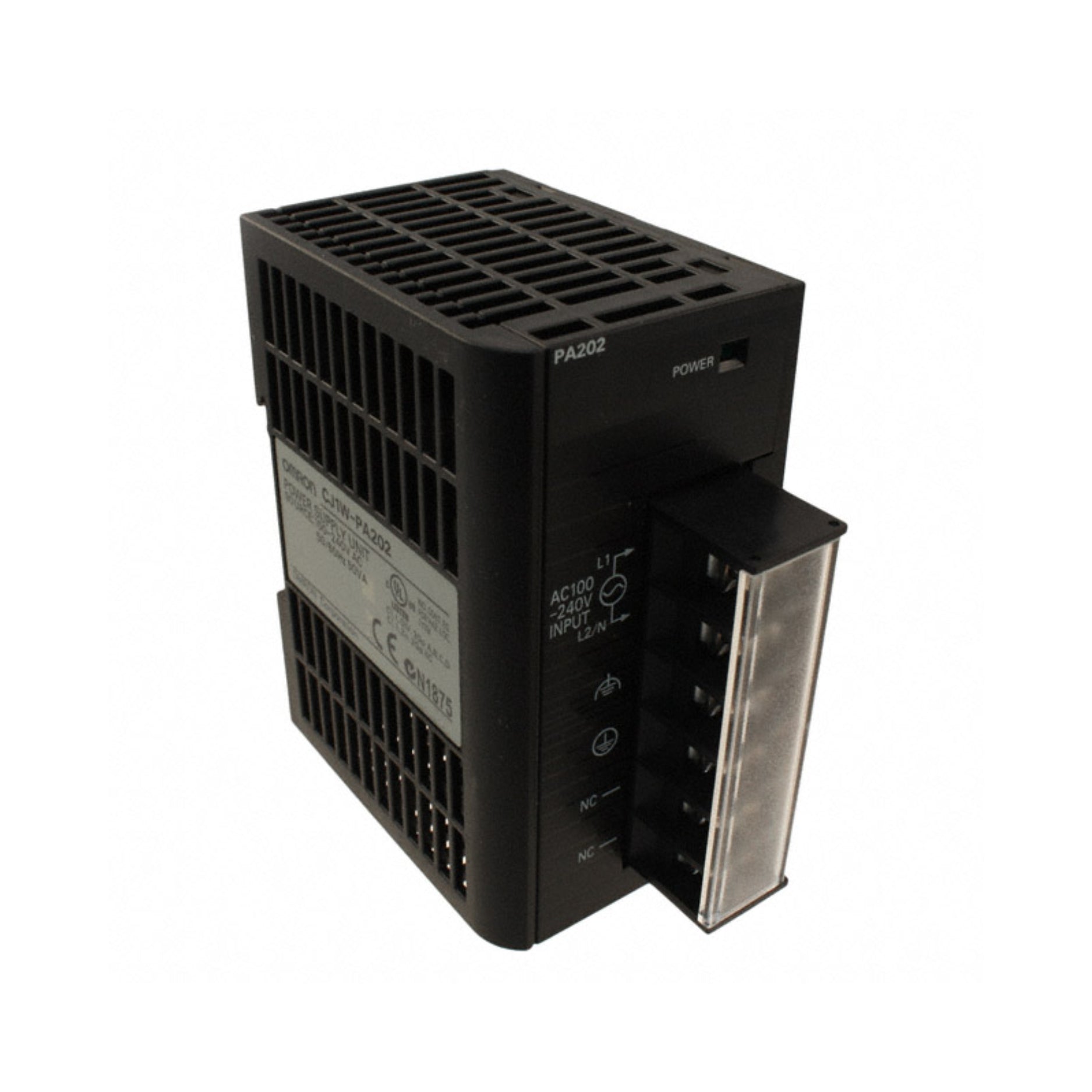

The Omron CJ1W-PA202 is a power supply module designed for use with Omron's CJ-series Programmable Logic Controllers (PLCs). Accepting a wide-range 100 to 240 VAC input, it provides stable 5 VDC and 24 VDC outputs, ensuring reliable operation of the PLC system and its associated components.

Key Features

• Input Voltage: 100 to 240 VAC (wide-range), 50/60 Hz

• Output Voltage and Current:

  • 5 VDC: 2.8 A (including supply to CPU Unit)

  • 24 VDC: 0.4 A

• Total Output Power: 14 W

• Compact Design: Measures 90 mm (H) x 45 mm (W) x 81.6 mm (D)

• Lightweight: Weighs approximately 200 g

• Easy Installation: DIN rail mounting with screw terminal connections

• Status Indicator: POWER LED indicates 5 V output status

Technical Specifications

• Model Number: CJ1W-PA202

• Series: CJ1W

• Input Voltage Range: 85 to 264 VAC, 47 to 63 Hz

• Power Consumption: 50 VA max.

• Inrush Current:

  • At 100 to 120 VAC: 20 A/8 ms max. for cold start at room temperature

  • At 200 to 240 VAC: 40 A/8 ms max. for cold start at room temperature

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 70°C

• Operating Humidity: 10% to 90% (non-condensing)

• Certifications: CE, UL, cULus, NK, Lloyd

Applications

• Industrial Automation: Provides reliable power to CJ-series PLCs in manufacturing and process control environments

• Machine Control: Ensures stable operation of PLCs in various machinery applications

• Process Monitoring: Supplies consistent power for PLCs used in monitoring and controlling industrial processes

Why Choose the Omron CJ1W-PA202?

• Wide Input Voltage Range: Accommodates global power standards with 100 to 240 VAC input

• Reliable Output: Delivers stable 5 VDC and 24 VDC outputs to support PLC and peripheral devices

• Compact and Lightweight: Saves space in control panels and simplifies installation

• Trusted Brand: Manufactured by Omron, a leader in industrial automation solutions

Order Now

Available for immediate worldwide shipping. Contact us for pricing, availability, and technical support to ensure seamless integration into your PLC systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
