Omron CJ1W-OC201

Omron CJ1W-OC201 | Reliable 8-Point Relay Output Module for Industrial Automation

Overview

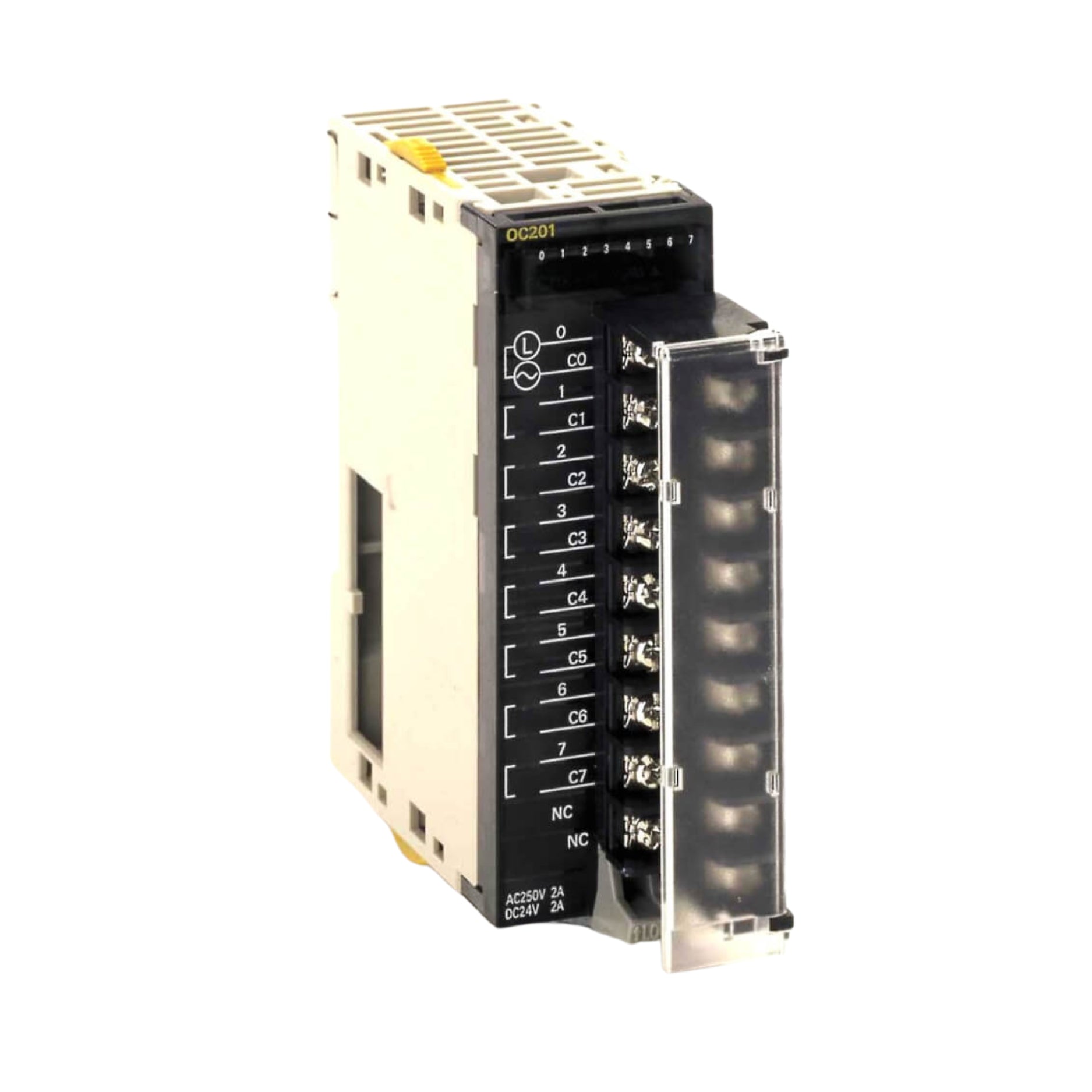

The Omron CJ1W-OC201 is an 8-point relay output unit designed for seamless integration with Omron's CJ and NJ series Programmable Logic Controllers (PLCs). Each output point can handle up to 2 A at 5 to 250 VAC or 5 to 24 VDC, making it suitable for controlling a variety of devices such as motors, solenoids, and indicators. The unit features independent commons for each output, enhancing isolation and flexibility in wiring configurations.

Key Features

• Output Channels: 8 relay outputs with independent commons, allowing for versatile wiring and isolation.

• Switching Capacity: Supports up to 2 A per point at 5–250 VAC or 5–24 VDC, accommodating various load types.

• Response Time: Maximum ON and OFF response times of 15 ms, ensuring timely operation.

• Durability: Electrical service life of 150,000 operations at 24 VDC (resistive load) and mechanical service life of 20 million operations, providing long-term reliability.

• Compact Design: Dimensions of 90 mm (H) × 31 mm (W) × 89 mm (D) and a weight of approximately 88 g, facilitating easy installation in control panels.

Technical Specifications

• Model Number: CJ1W-OC201

• Number of Outputs: 8

• Output Type: Relay (Normally Open)

• Permitted Voltage at Output: 5–250 VAC, 5–24 VDC

• Output Current: 2 A per point (maximum 16 A per unit)

• ON Response Time: 15 ms max.

• OFF Response Time: 15 ms max.

• Insulation Resistance: 20 MΩ between external terminals and the GR terminal (500 VDC)

• Dielectric Strength: 2,000 VAC between external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.

• Internal Current Consumption: 90 mA at 5 VDC max.; 48 mA at 24 VDC max. (6 mA × number of ON points)

• Mounting: DIN rail

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus

Applications

• Motor Control: Efficiently manage motor operations in manufacturing processes.

• Lighting Systems: Control industrial lighting with precision and reliability.

• Solenoid Activation: Operate solenoids in pneumatic and hydraulic systems.

• Alarm Systems: Trigger alarms and indicators in response to system conditions.

Why Choose Omron CJ1W-OC201?

• Versatile Output Handling: Capable of switching both AC and DC loads, providing flexibility across applications.

• Independent Commons: Enhances isolation between outputs, allowing for diverse wiring configurations.

• Compact and Lightweight: Facilitates easy integration into existing control panels without requiring significant space.

• Proven Reliability: Backed by Omron's reputation for quality and durability in industrial automation components.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CJ/NJ series PLCs, input units, and other automation accessories to complete your system setup.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
