Omron CJ1W-ID262 | 64-Channel 24 VDC Digital Input Module

Omron CJ1W-ID262 | High-Density 64-Channel Digital Input Module for CJ-Series PLCs

Overview

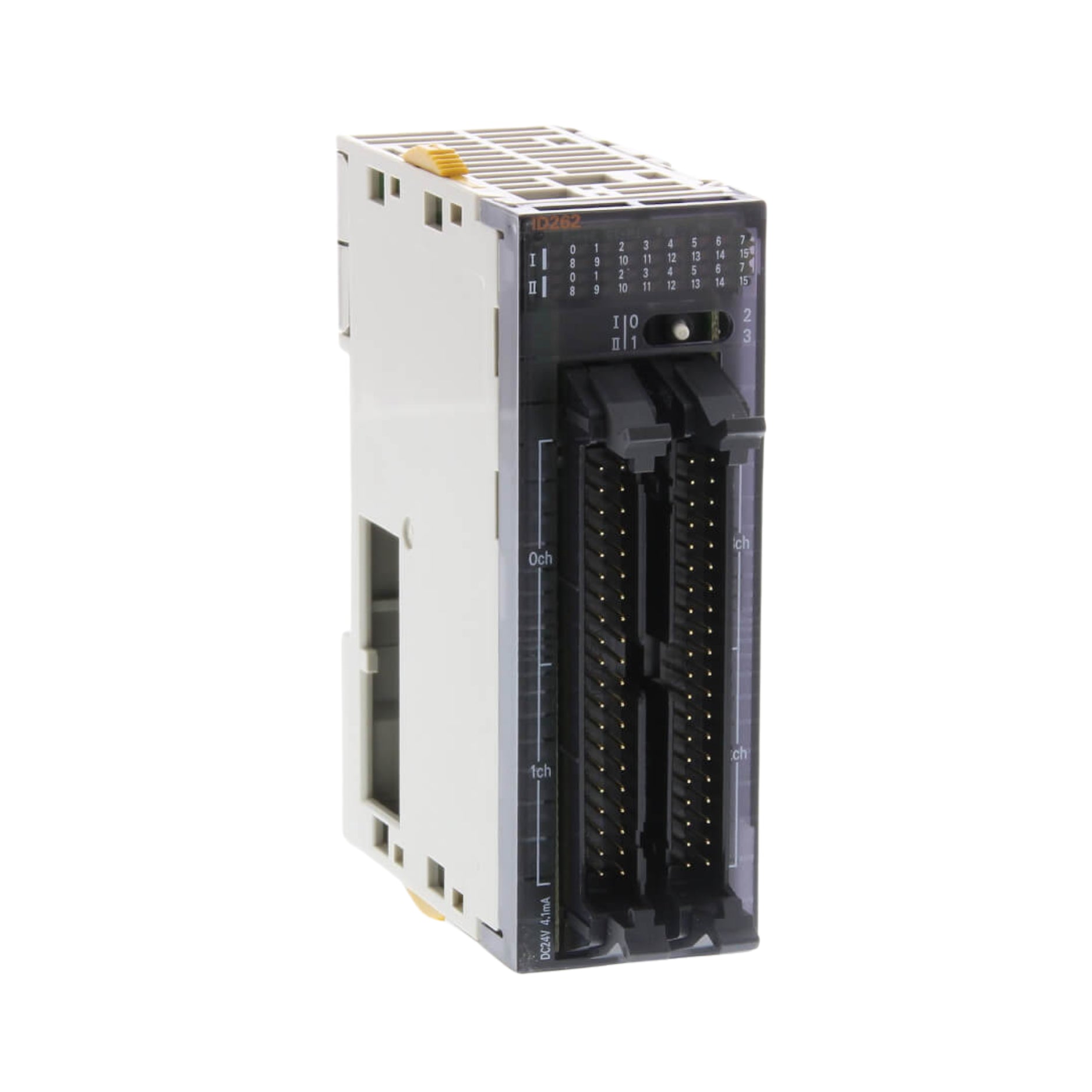

The Omron CJ1W-ID262 is a 64-channel digital input module designed for seamless integration with Omron's CJ-Series Programmable Logic Controllers (PLCs). It accepts 24 VDC input signals and features MIL connectors, providing a reliable and organized wiring interface. With a 5.6 kΩ input impedance and configurable response times, this module is ideal for applications requiring high-density input processing and precise control.

Key Features

• High-Density Input: Accommodates 64 digital inputs, enabling extensive signal processing within a compact module.

• Standard Input Voltage: Operates with 24 VDC input signals, compatible with a wide range of industrial devices.

• Configurable Response Time: Default response time of 8.0 ms, adjustable between 0 to 32 ms to suit various application requirements.

• Flexible Input Type: Compatible with both PNP and NPN input devices, providing versatility in system design.

• MIL Connectors: Utilizes MIL connectors (connectors not included), facilitating organized and reliable wiring.

• Compact Design: Measures 90 mm (H) × 31 mm (W) × 83.6 mm (D), conserving space in control panels.

Technical Specifications

• Model Number: CJ1W-ID262

• Number of Inputs: 64

• Rated Input Voltage: 24 VDC

• Input Voltage Range: 20.4 to 26.4 VDC

• Input Impedance: 5.6 kΩ

• Input Current: 4.1 mA typical at 24 VDC

• ON Voltage/Current: 19.0 VDC min. / 3 mA min.

• OFF Voltage/Current: 5 VDC max. / 1 mA max.

• Response Time: 8.0 ms max. (adjustable between 0 to 32 ms)

• Number of Circuits: 64 (16 points/common, 4 circuits)

• Simultaneously ON Points: 50% (8 points/common) simultaneously ON at 24 VDC

• Internal Current Consumption: 90 mA max. at 5 VDC

• Mounting Method: DIN rail

• Operating Temperature Range: 0°C to 55°C

• Storage Temperature Range: -20°C to 75°C

• Operating Humidity Range: 10% to 90% (non-condensing)

• Dimensions: 90 mm (H) × 31 mm (W) × 83.6 mm (D)

• Weight: Approximately 96 g

• Certifications: CE, cULus, Lloyd, NK

Applications

• Industrial Automation: Facilitates the integration of multiple digital input signals from sensors, switches, and other devices into CJ-Series PLCs.

• Process Monitoring: Enables real-time monitoring and control of various processes by capturing numerous input signals.

• Machine Control: Supports complex machine operations by processing a high number of input signals efficiently.

Why Choose Omron CJ1W-ID262?

• High Input Capacity: Offers a substantial number of input channels within a single module, reducing the need for multiple input units.

• Adjustable Response Time: Allows customization of response times to match specific application needs, enhancing system performance.

• Versatile Compatibility: Supports both PNP and NPN input types, providing flexibility in connecting different devices.

• Reliable Integration: Designed specifically for seamless operation with Omron CJ-Series PLCs, ensuring system compatibility and reliability.

• Space-Efficient Design: Compact module size aids in conserving valuable space within control panels.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CJ-Series PLCs, output modules, and other automation components to complete your system configuration.
