Mitsubishi GT1155‑QSBD‑C

Mitsubishi GT1155‑QSBD‑C

Overview

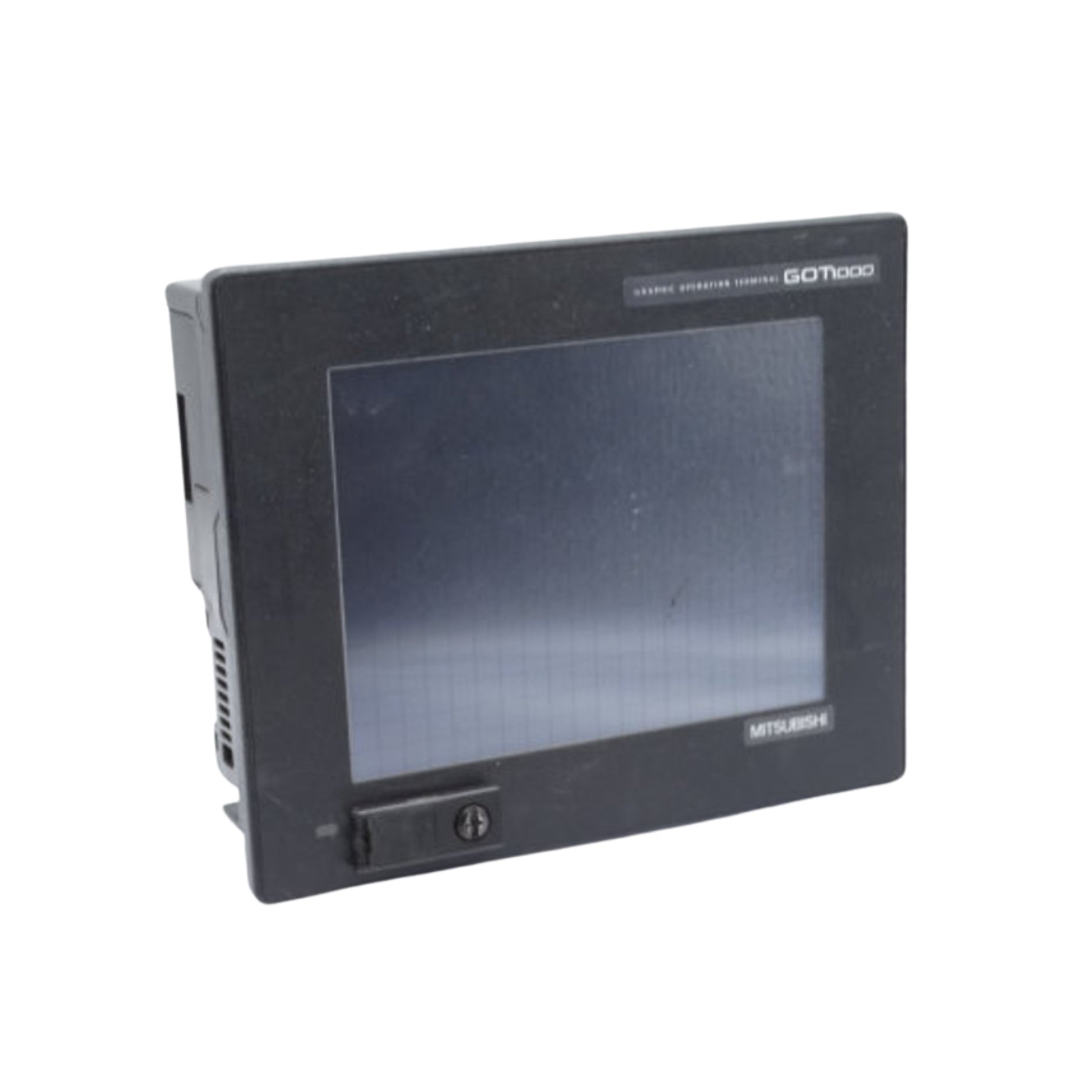

The Mitsubishi GT1155‑QSBD‑C is a large-format 15.6‑inch touchscreen HMI from the advanced GOT1000 series, delivering crisp 1366×768 resolution and responsive touch functionality. Equipped with Ethernet and USB interfaces, it provides seamless integration with Mitsubishi PLCs and supports real-time monitoring and control in industrial environments.

Key Features

• Series: GOT1000

• Display Size: 15.6″ TFT color LCD

• Resolution: 1366 × 768 (WXGA)

• Touch Panel: Analog resistive or capacitive type

• Backlight: LED (long life)

• Communication Ports: Ethernet, RS‑232/485, USB Host/Device

• Memory: 128 MB internal + SD card slot

• Mounting: Panel mount

• Cooling: Fanless design

Technical Specifications

• Model Number: GT1155‑QSBD‑C

• Display Area: Approx. 344 × 194 mm

• Colors: 65,536

• Power Supply: 24 V DC

• Operation Temp: 0°C to 50°C

• Storage Temp: –20°C to 60°C

• Front Protection: IP65 (when mounted)

• Dimensions: Approx. 405 × 265 × 55 mm

• Cutout Size: Approx. 385 × 245 mm

• Weight: ≈ 4.5 kg

• Certifications: CE, UL, RoHS

Applications

• Factory floor machine control

• SCADA and process panels

• Packaging and assembly line interfaces

• Batch control and monitoring

• OEM equipment operator panels

Why Choose the GT1155‑QSBD‑C

• Large, Rich Display: 15.6″ with high-resolution visuals

• Flexible Connectivity: Ethernet, USB, serial ports

• Durable Construction: IP65-rated front for harsh environments

• User-Friendly Interface: Fast, accurate touch operation

• Software Support: Configurable via GT Works3

Order Now

The Mitsubishi GT1155‑QSBD‑C HMI touchscreen is available and ships worldwide.

Return to the Mitsubishi Electric HMI – GOT Series Touch Panels collection for more options in this family.

Explore our full range of Mitsubishi Industrial Automation Products to discover PLCs, HMIs, drives, and motion solutions designed for high performance, connectivity, and flexibility across industrial applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
