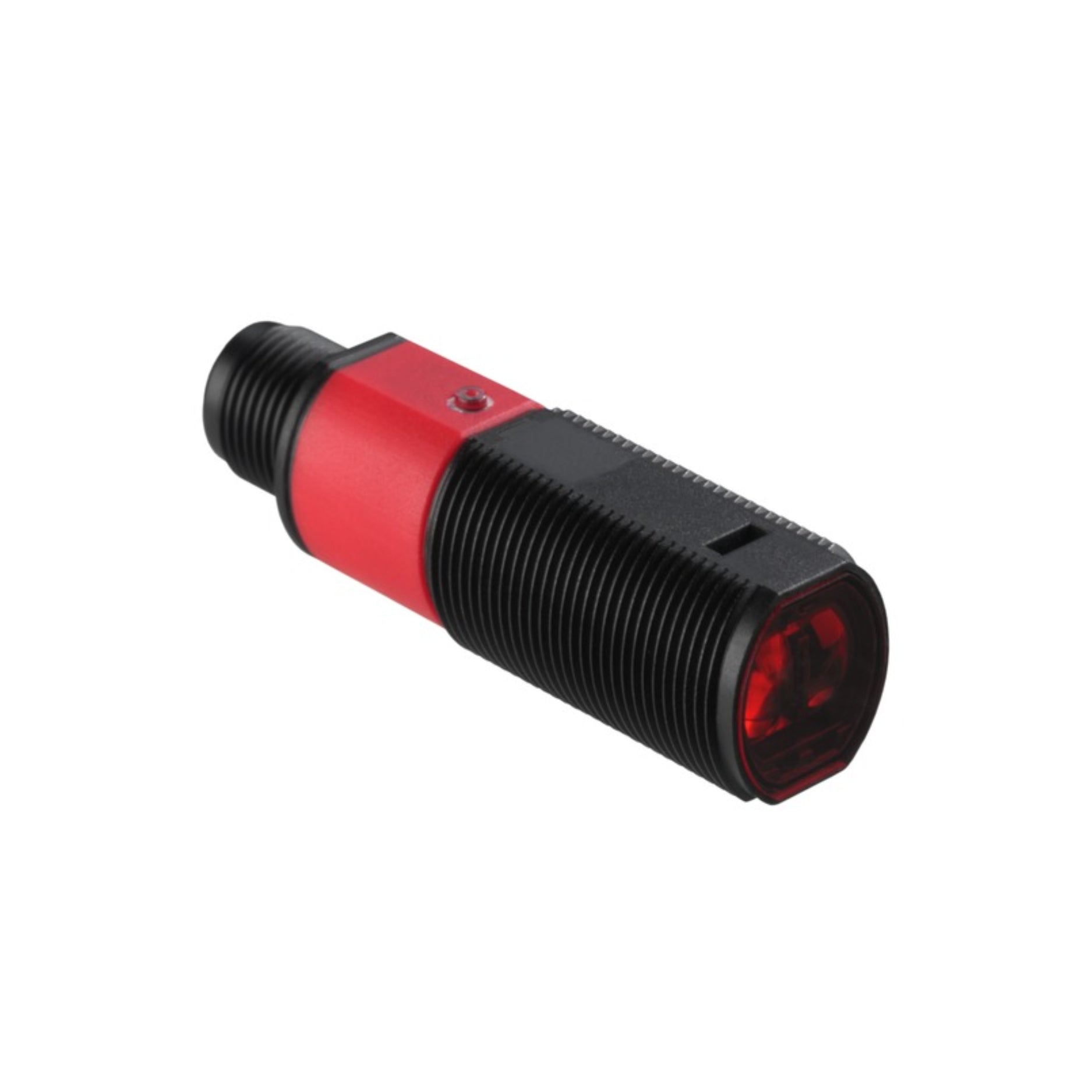

Leuze PRK318B/4P‑M12

Leuze PRK318B/4P‑M12 | Retro-Reflective Photoelectric Sensor | 0.1–5 m | Polarized Red Light | M12 Connector

Overview

The Leuze PRK318B/4P‑M12 is a polarized retro-reflective photoelectric sensor with a 5 m sensing range and a visible red light beam. Housed in a robust M18 cylindrical body with an M12 connector, this sensor is optimized for reliable object detection, including on shiny or reflective surfaces. It features a PNP switching output and is well-suited for general-purpose industrial automation applications.

Key Features

• Sensing range: 0.1 m to 5 m (with reflector)

• Polarized red LED for stable detection of reflective objects

• PNP switching output (normally open)

• M18 cylindrical housing with M12, 4-pin connector

• High resistance to ambient light and optical interference

• Bright LED indicators for status and alignment

• IP67-rated housing for demanding environments

Technical Specifications

• Catalog Number: 50116859

• Operating Principle: Polarized retro-reflective

• Sensing Range: 0.1 m to 5 m

• Light Source: Red LED

• Output Type: PNP, NO

• Electrical Connection: M12, 4-pin connector

• Housing Type: M18 cylindrical

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Housing Material: Nickel-plated brass or durable plastic (model-dependent)

• Weight: Approx. 50–70 g

Applications

• Conveyor and transport systems

• Packaging and labeling machines

• Detection of reflective materials or transparent containers

• General automation and material handling

• OEM systems requiring compact cylindrical sensors

Why Choose PRK318B/4P‑M12

• Reliable and accurate detection in a wide range of applications

• Polarized optics ensure precise switching on reflective targets

• Compact M18 housing ideal for machine mounting

• Quick connection via M12 plug simplifies wiring

• Designed for tough industrial environments

Order Now

The Leuze PRK318B/4P‑M12 photoelectric sensor (Part no. 50116859) is available and ships worldwide.
