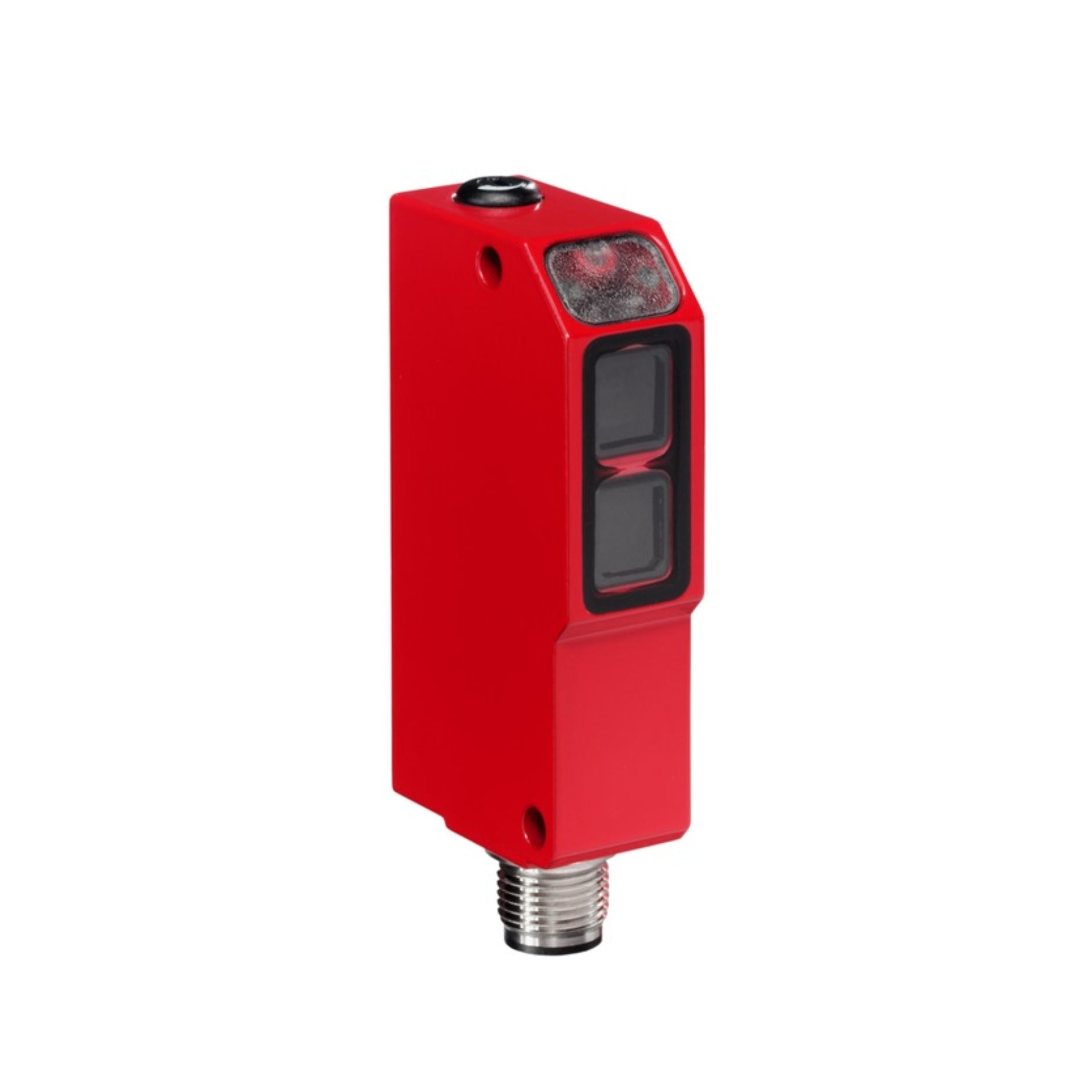

Leuze PRK 95/44 L.4

Leuze PRK 95/44 L.4 | Retro-Reflective Photoelectric Sensor | 0.1–15 m | Polarized Red Light | Terminal Connection

Overview

The Leuze PRK 95/44 L.4 is a robust polarized retro-reflective photoelectric sensor designed for precise object detection in industrial environments. With a long sensing range of up to 15 m and polarization filtering, it reliably detects objects even with reflective or shiny surfaces. The sensor includes a terminal connection interface and features a durable IP67-rated housing for reliable operation in demanding conditions.

Key Features

• Sensing range: 0.1 m to 15 m (with standard reflector)

• Polarized red LED for high reliability on reflective targets

• Digital switching output (PNP, normally open)

• Terminal block connection for secure wiring

• Highly visible LEDs for status indication

• Rugged industrial housing with IP67 protection

• High immunity to ambient light interference

Technical Specifications

• Catalog Number: 50025609

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 15 m

• Output Type: PNP, NO (normally open)

• Electrical Connection: Terminal block

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –25 °C to +60 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 50 × 50 × 20 mm

• Weight: Approx. 60 g

Applications

• Object detection on conveyor belts

• Pallet and box detection in material handling

• High-speed packaging and logistics systems

• Machine safety and access control zones

• OEM equipment requiring long-range retro-reflective sensing

Why Choose PRK 95/44 L.4

• Long-range detection up to 15 m

• Polarized optics for reliable sensing on reflective surfaces

• Terminal connection for robust industrial installations

• Fast response time for high-speed automation

• IP67-rated housing ensures durability in harsh environments

Order Now

The Leuze PRK 95/44 L.4 photoelectric sensor (Part no. 50025609) is available and ships worldwide.
