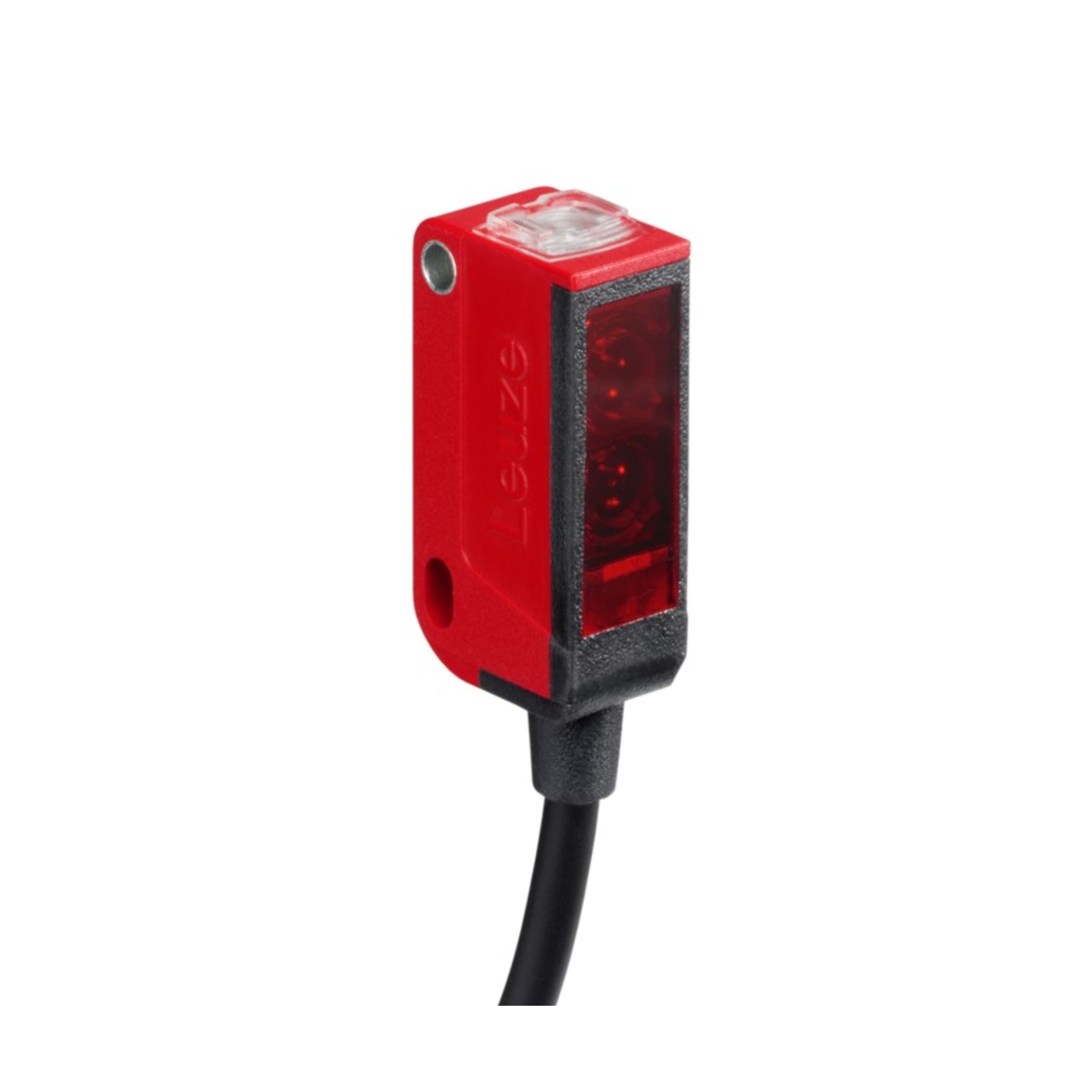

Leuze PRK 3B/66‑S8

Leuze PRK 3B/66‑S8 | Retro-Reflective Photoelectric Sensor | 0.1–3 m | Compact Design | S8 Connector

Overview

The Leuze PRK 3B/66‑S8 is a compact polarized retro-reflective photoelectric sensor designed for short to mid-range object detection. With a sensing range up to 3 m and polarization filtering, it ensures reliable detection even of shiny or angled surfaces. Its small housing and fixed 2 m cable (S8 type) make it easy to install in tight spaces within industrial automation setups.

Key Features

• Sensing range: 0.1 m to 3 m (with reflector)

• Polarized red light for high detection reliability

• Compact rectangular housing for tight mounting spaces

• Integrated 2 m cable (S8 version) for fast installation

• High switching frequency and short response time

• LED indicators for operational status

• Sealed IP67 housing for use in harsh environments

Technical Specifications

• Catalog Number: 50104694

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 3 m (with recommended reflector)

• Output Type: PNP, normally open

• Electrical Connection: 2 m cable (S8 type)

• Supply Voltage: 10–30 V DC

• Response Time: <1 ms

• Housing Material: Plastic

• Protection Class: IP67

• Operating Temperature: –25 °C to +55 °C

• Storage Temperature: –40 °C to +70 °C

• Dimensions: Approx. 30 × 16 × 12 mm

• Weight: Approx. 25 g

Applications

• Compact machinery and equipment

• Presence detection on conveyors and feeders

• Small-part verification in packaging lines

• Robotics and space-limited automation zones

• OEM sensor integration with fixed cabling

Why Choose PRK 3B/66‑S8

• Space-saving design without compromising performance

• Reliable sensing of reflective and angled targets

• Quick plug-free installation with pre-attached cable

• Excellent protection and durability in industrial conditions

• Fast response for dynamic detection needs

Order Now

The Leuze PRK 3B/66‑S8 photoelectric sensor (Part no. 50104694) is available and ships worldwide.
