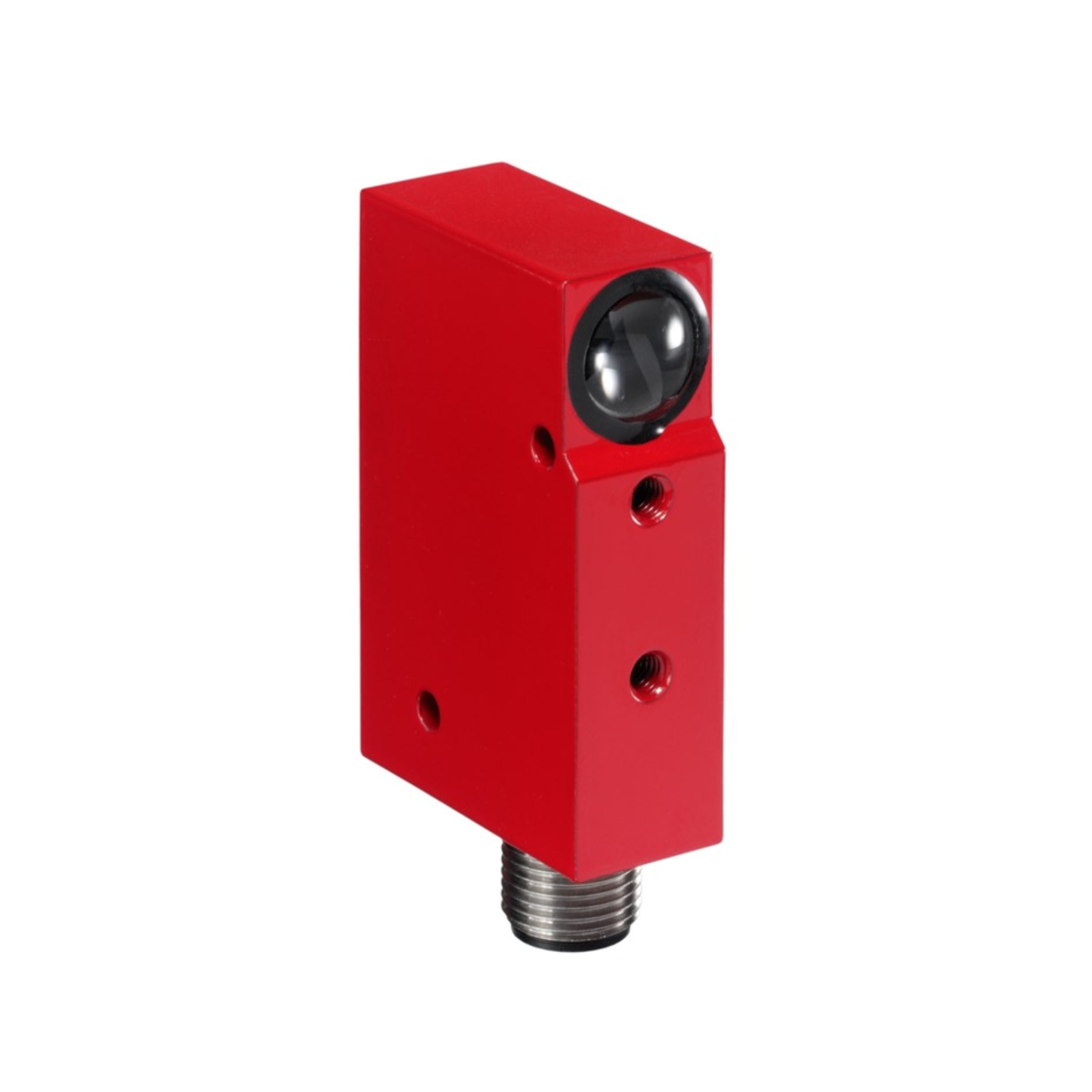

Leuze PRK 18/24 DL.46

Leuze PRK 18/24 DL.46 | Retro-Reflective Photoelectric Sensor | 18 m Range | M12 Connector

Overview

The Leuze PRK 18/24 DL.46 is a polarized retro-reflective photoelectric sensor designed for reliable object detection over long distances. With a sensing range of up to 18 m, it uses red light and polarization filtering to detect objects reliably even with shiny surfaces. Its robust design includes an M12 connector, IP67 protection, and a compact housing suited for industrial automation environments.

Key Features

• Sensing range up to 18 m with reflective target

• Polarized red light for reliable object detection

• Background suppression and immunity to shiny surfaces

• M12, 4-pin connector for quick integration

• Digital PNP switching output

• Bright LED indicators for status and alignment

• Compact cylindrical design (M18 thread)

Technical Specifications

• Catalog Number: 50032798

• Operating Principle: Polarized retro-reflective

• Light Source: Red LED

• Sensing Range: 0.1 m to 18 m (with reflector)

• Output Type: PNP switching output

• Supply Voltage: 10–30 V DC

• Connection Type: M12, 4-pin connector

• Protection Class: IP67

• Housing Style: M18 cylindrical threaded

• Material: Metal/plastic hybrid

• Operating Temperature: –25 °C to +55 °C

• Response Time: <1 ms

• Dimensions: Ø18 mm × 65 mm

• Weight: Approx. 50 g

Applications

• Object detection on conveyor lines

• Packaging and material handling

• Pallet detection and positioning

• High-speed industrial automation

• OEM machine integration with long-range sensing needs

Why Choose PRK 18/24 DL.46

• Reliable performance over long distances

• Immune to false triggers from reflective surfaces

• Easy to install and align with visible red LED

• Compact and rugged for harsh environments

• Standard M12 interface for seamless integration

Order Now

The Leuze PRK 18/24 DL.46 photoelectric sensor (Part no. 50032798) is available and ships worldwide.
