Leuze ODSL 96B M/C6‑S12

Leuze ODSL 96B M/C6‑S12 | Optical Distance Sensor | 50–650 mm | Class 2 Laser | Metal Housing

Overview

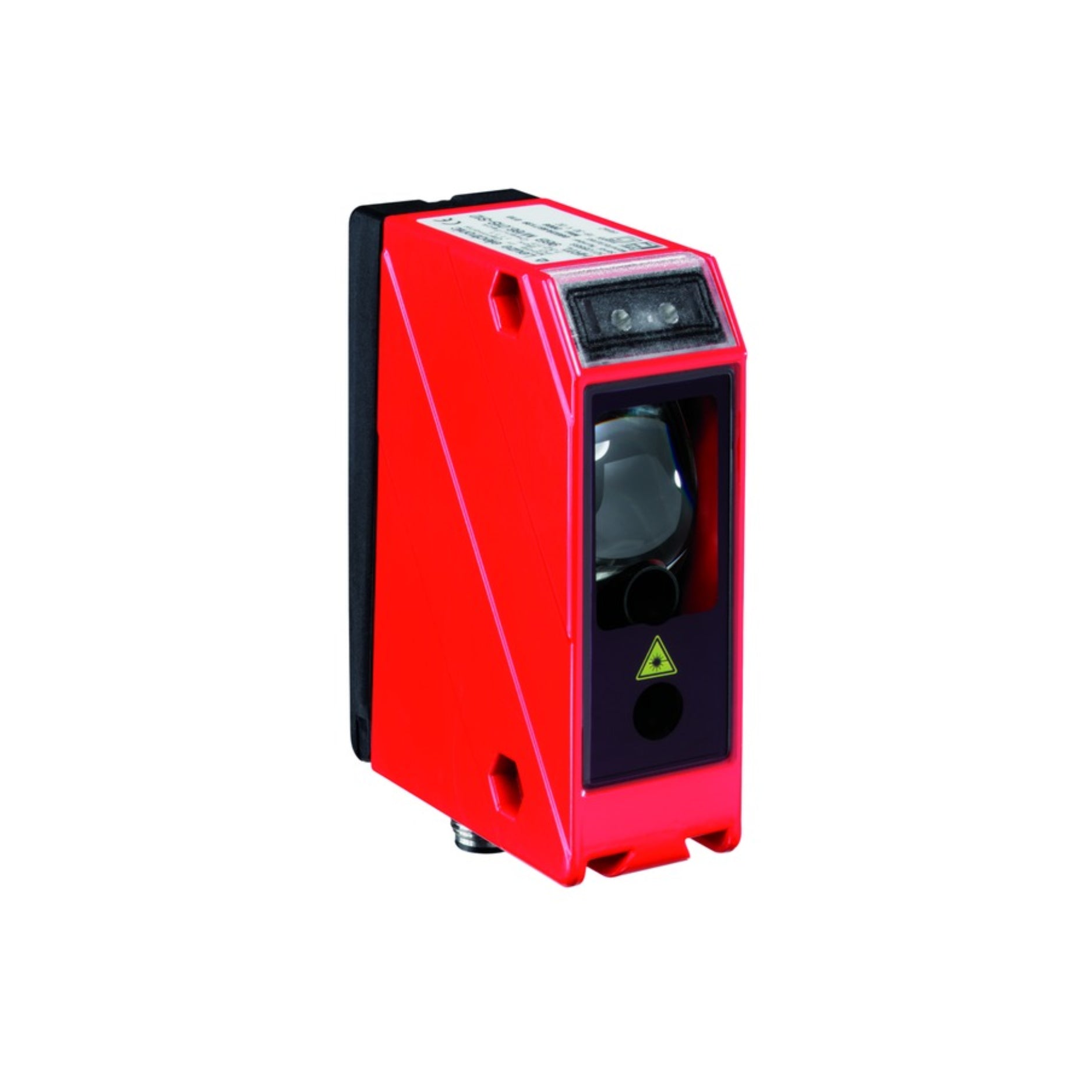

The Leuze ODSL 96B M/C6‑S12 is a high-precision optical distance sensor featuring a rugged metal housing and laser triangulation technology. With a sensing range from 50 mm to 650 mm, it offers fast and accurate detection for industrial automation applications. The sensor is equipped with a visible red Class 2 laser, PNP switching output, and an M12 connector for reliable and easy integration.

Key Features

• Sensing range: 50 mm to 650 mm

• Class 2 laser for safe, visible alignment

• Digital switching output (PNP)

• Rugged metal housing for industrial durability

• M12, 4-pin connector for standard connectivity

• High accuracy and repeatability in mid-range measurements

• Excellent performance on varied surface materials

Technical Specifications

• Catalog Number: 50109290

• Measuring Principle: Triangulation with laser

• Measurement Range: 50 mm to 650 mm

• Output: PNP switching output

• Laser Class: Class 2 (IEC 60825)

• Light Source: Red laser diode

• Supply Voltage: 10–30 V DC

• Connector: M12, 4-pin

• Housing Material: Metal

• Protection Class: IP67

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –25 °C to +70 °C

• Dimensions: Approx. 50 × 50 × 20 mm

• Weight: Approx. 100 g

Applications

• Distance and presence detection in conveyors

• Robotics and positioning systems

• Packaging machinery and palletizing stations

• Industrial environments requiring robust sensors

• OEM systems needing reliable mid-range sensing

Why Choose ODSL 96B M/C6‑S12

• Reliable detection with extended range

• Metal housing ensures long-term durability

• Precise laser-based measurement

• Easy setup via M12 connector

• Designed for challenging industrial conditions

Order Now

The Leuze ODSL 96B M/C6‑S12 optical distance sensor (Part no. 50109290) is available and ships worldwide.
