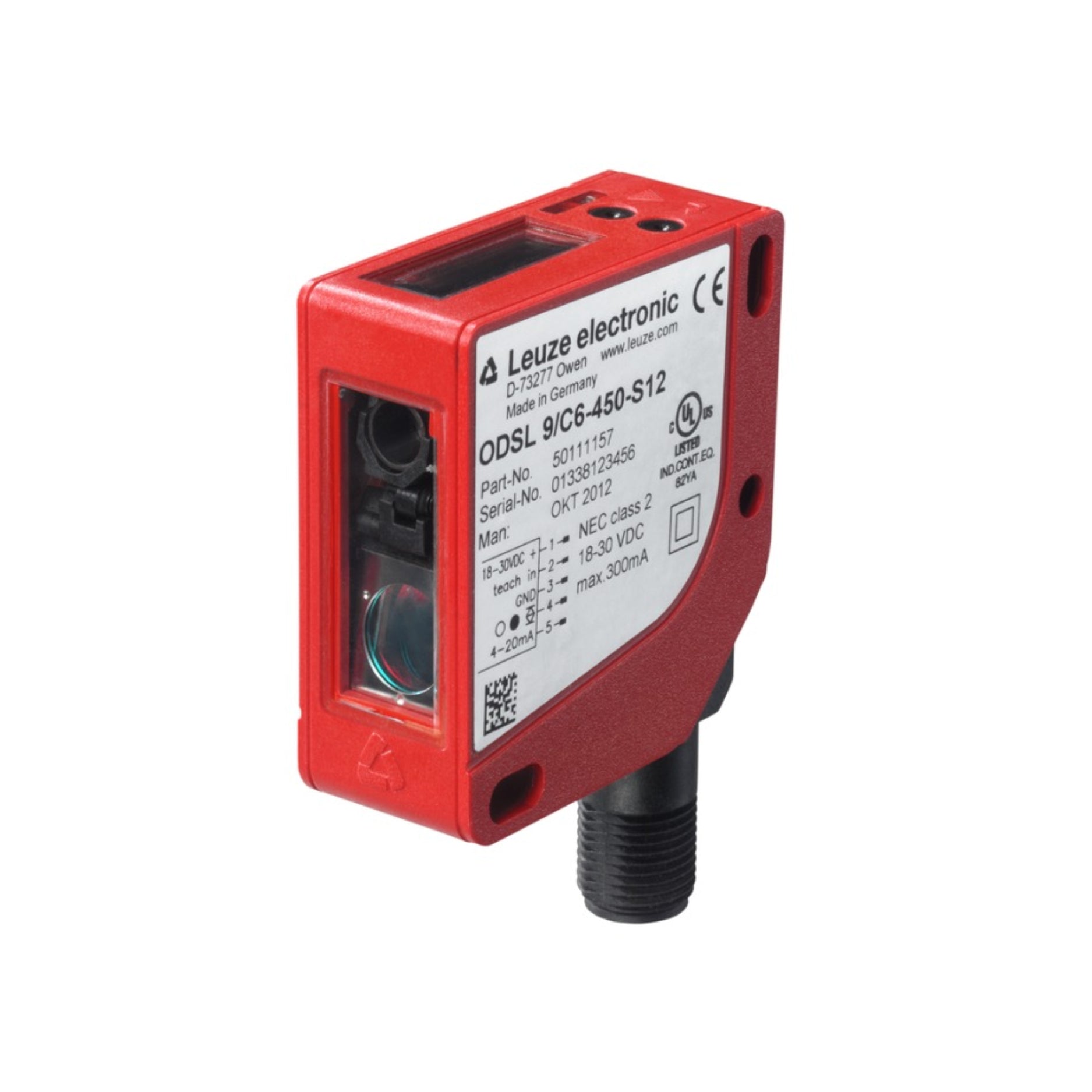

Leuze ODSL 9/C6‑450‑S12

Leuze ODSL 9/C6‑450‑S12 | Optical Distance Sensor | 100–450 mm | Class 2 Laser

Overview

The Leuze ODSL 9/C6‑450‑S12 is a compact optical distance sensor designed for non-contact object detection in automation environments. With a measurement range of 100 to 450 mm, it uses Class 2 laser triangulation for accurate and repeatable sensing. The sensor’s small form factor, PNP output, and M12 connector make it easy to integrate into existing systems, especially where space and precision are critical.

Key Features

• Measurement range: 100 mm to 450 mm

• Laser Class 2 for safe, visible laser targeting

• Digital PNP switching output

• Reliable operation with high repeatability

• Compact plastic housing for space-limited installations

• M12, 4-pin connector for quick wiring

• Suitable for a wide range of materials and surface types

Technical Specifications

• Catalog Number: 50111157

• Sensing Technology: Triangulation

• Range: 100 mm to 450 mm

• Output Type: PNP switching output

• Light Source: Red laser, Class 2 (IEC 60825)

• Connector: M12, 4-pin

• Supply Voltage: 10–30 V DC

• Protection Class: IP67

• Housing Material: Plastic

• Operating Temperature: –10 °C to +50 °C

• Storage Temperature: –25 °C to +70 °C

• Dimensions: Approx. 50 × 50 × 20 mm

• Weight: Approx. 60 g

Applications

• Object detection in automation lines

• Robotics and pick-and-place systems

• Conveyor belt presence sensing

• Height and distance control

• Small machinery integration requiring precise short-range sensing

Why Choose ODSL 9/C6‑450‑S12

• High accuracy over short distances

• Eye-safe laser with clear visual alignment

• Durable, compact design for industrial use

• Quick-connect M12 interface

• Simple integration with standard control systems

Order Now

The Leuze ODSL 9/C6‑450‑S12 optical distance sensor (Part no. 50111157) is available and ships worldwide.
