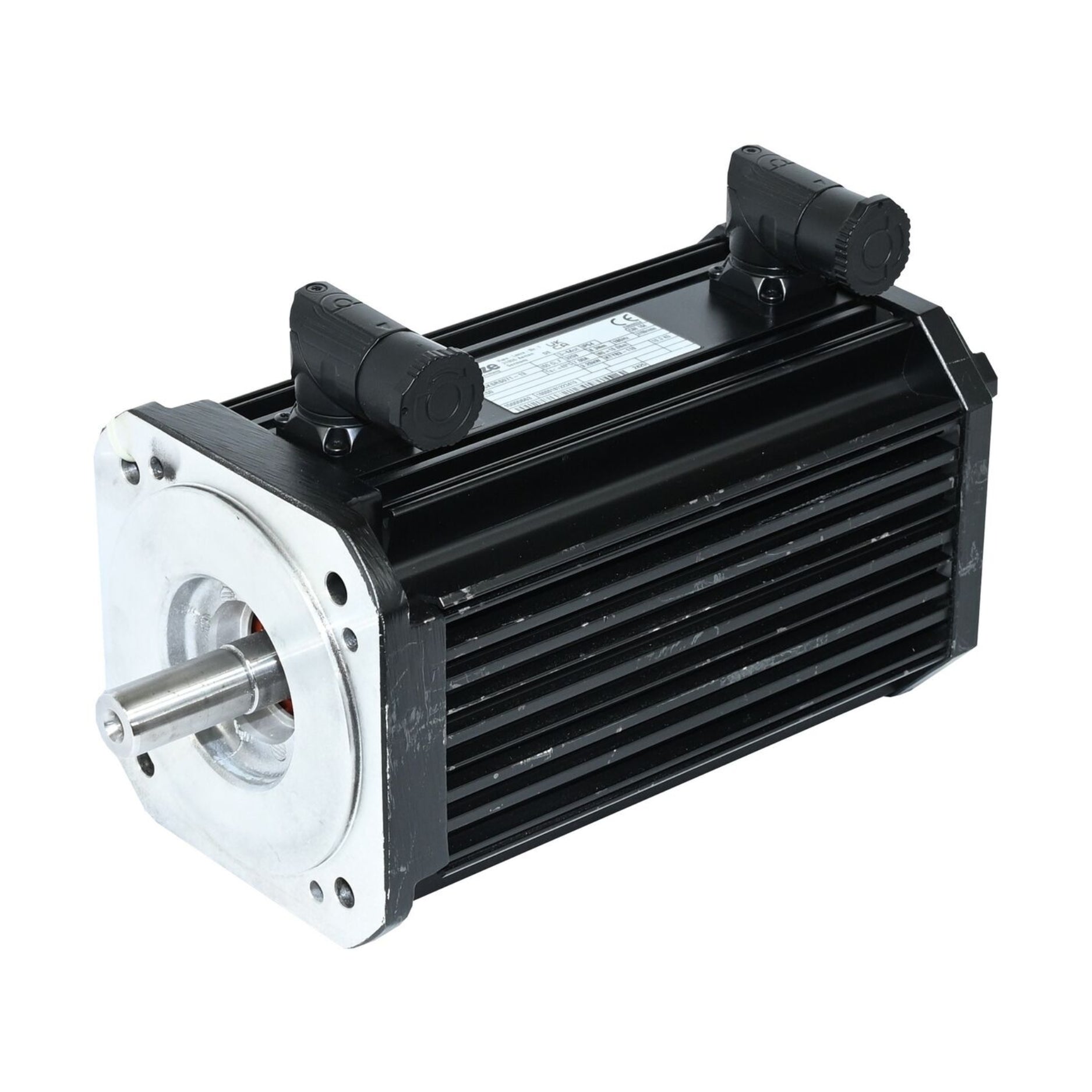

Lenze MDSKSRS071-13

Lenze MDSKSRS071-13 | High-Performance 3.2 kW Servo Motor for Industrial Automation

Overview

The Lenze MDSKSRS071-13 is a high-performance synchronous servo motor designed for precise and dynamic motion control in demanding industrial applications. With a power rating of 3.2 kW and support for 480V AC inputs, it delivers reliable performance and seamless integration into complex automation systems.

Key Features

• Power Rating: 3.2 kW

• Input Voltage: 3-phase 480V AC

• Rated Speed: 3700 RPM

• Maximum Speed: 5000 RPM

• Rated Torque: 8.3 Nm

• Peak Torque: 35.2 Nm

• Feedback Device: Resolver

• Cooling Method: Natural convection (no fan)

• Protection Class: IP54

• Mounting: Flange-mounted

• Shaft Diameter: 19 mm

• Rotor Inertia: 0.0008 kg·m²

• Weight: Approximately 22.4 kg

• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)

• Certifications: CE, UL, cUL

Applications

• Packaging machinery

• Material handling systems

• Robotics and automation

• Printing presses

• Textile machinery

Why Choose the MDSKSRS071-13?

• Precision Control: High torque and speed capabilities ensure accurate positioning and speed regulation

• Flexible Integration: Compatible with various servo drives and control systems

• Robust Design: Built to withstand demanding industrial environments

• Energy Efficiency: Optimized performance reduces energy consumption and operational costs

• Maintenance-Friendly: Natural cooling reduces maintenance requirements and increases reliability

Order Now

The Lenze MDSKSRS071-13 Servo Motor is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
