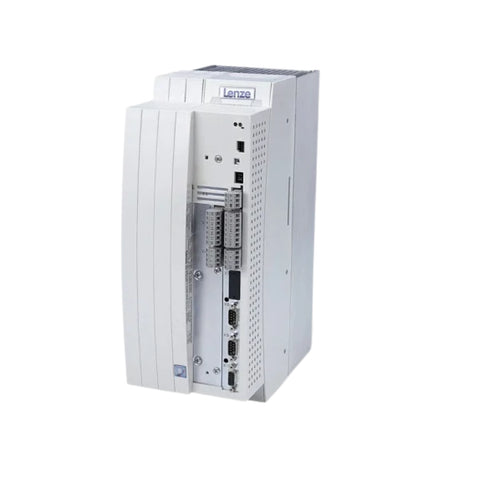

Lenze EVS9325-EP

Lenze EVS9325-EP | High-Performance 5.5 kW Servo Position Controller for Industrial Automation

Overview

The Lenze EVS9325-EP is a high-performance servo position controller from the 9300 series, designed for precise and dynamic motion control in demanding industrial applications. With a power rating of 5.5 kW and support for 400/480V AC inputs, it delivers reliable performance and seamless integration into complex automation systems.

Key Features

• Power Rating: 5.5 kW (7.5 HP)

• Input Voltage: 3-phase 400/480V AC

• Output Frequency: 0 to 480 Hz

• Control Modes: Position, speed, and torque control

• Integrated Functions:

  • Safe standstill function

  • PID control

  • S-ramps for smooth acceleration

  • Fixed frequencies

  • Freely configurable inputs and outputs

• Protection Class: IP20 for standard industrial environments

• Cooling Method: Forced air cooling

• Modular Design: Supports plug-in modules for communication and I/O expansion

• Communication Interfaces: Optional modules for CANopen, PROFIBUS DP, and more

• Display: Optional keypad for easy monitoring and configuration

Technical Specifications

• Catalog Number: EVS9325-EP

• Input Voltage: 3-phase 400/480V AC

• Rated Output Power: 5.5 kW

• Output Frequency: 0 to 480 Hz

• Switching Frequency: 8 kHz

• Dimensions (H x W x D): 360 mm x 90 mm x 200 mm

• Weight: Approximately 7.5 kg

• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)

• Certifications: CE, UL, cUL

Applications

• Packaging machinery

• Material handling systems

• Robotics and automation

• Printing presses

• Textile machinery

Why Choose the EVS9325-EP?

• Precision Control: Advanced control algorithms ensure accurate positioning and speed regulation

• Flexible Integration: Compatible with various communication protocols for seamless system integration

• Robust Design: Built to withstand demanding industrial environments

• User-Friendly Interface: Optional keypad and configurable I/O simplify setup and operation

• Energy Efficiency: Optimized performance reduces energy consumption and operational costs

Order Now

The Lenze EVS9325-EP Servo Position Controller is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
