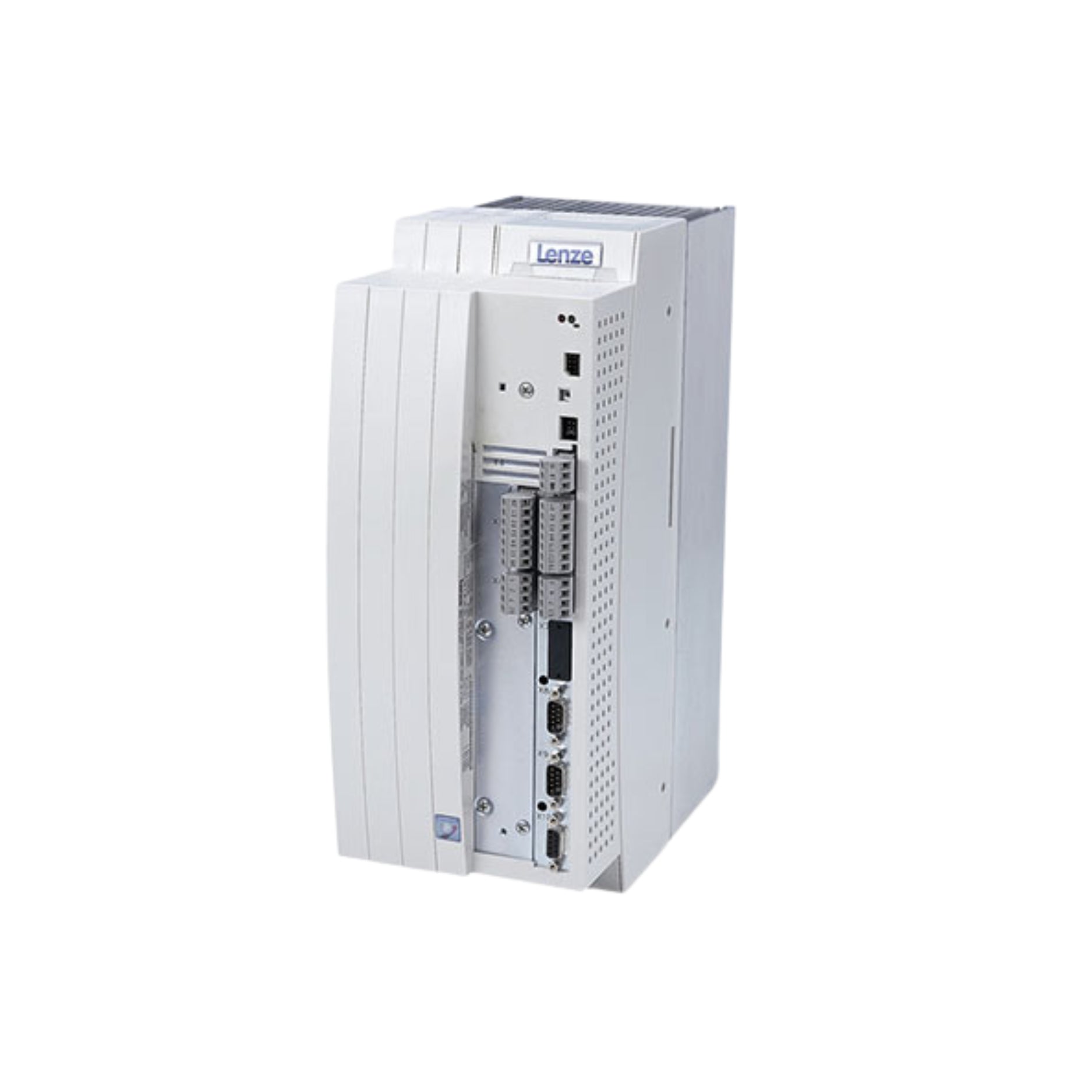

Lenze EVF9326-EVV004

Lenze EVF9326-EVV004 | High-Performance 22 kW Frequency Inverter from the 9300 Series

Overview

The Lenze EVF9326-EVV004 is a powerful frequency inverter from the 9300 series, specifically designed for complex drive tasks in industrial environments. With a power output of 22 kW, it supports dynamic speed and torque control, making it ideal for positioning tasks and demanding automation applications.

Key Features

• Rated Power: 22 kW

• Input Voltage: 3-phase 400V AC

• Output Voltage: 3-phase up to 400V AC

• Frequency Range: 0 to 650 Hz

• Control Method: Vector control and V/f control

• Integrated Functions:

  • Positioning control

  • Synchronous and asynchronous motor compatibility

  • DC braking

  • STO (Safe Torque Off)

• Communication Options: CANopen, PROFIBUS, EtherCAT (via modules)

• Modular Design: Expandable with plug-in function modules

• Cooling: Integrated fan cooling system

• User Interface: Integrated keypad or optional external operator panels

Technical Specifications

• Model Number: EVF9326-EVV004

• Output Current: ~45 A

• Switching Frequency: Up to 16 kHz

• Protection Class: IP20

• Ambient Temperature: 0°C to 45°C (derating above 40°C)

• Mounting: Panel mount

• Certifications: CE, UL, RoHS-compliant

• Dimensions (approx.): 450 x 180 x 250 mm

• Weight: ~12–15 kg

Applications

• Packaging machinery

• Elevators and cranes

• Extruders and winders

• Material handling systems

• Coordinated multi-axis systems

Why Choose the EVF9326-EVV004?

• High Torque Performance: Vector control ensures precise torque at low speeds

• Flexible Integration: Modular design allows for multiple I/O and communication options

• Application-Specific Control: Customizable logic and motion sequences

• Industrial Reliability: Rugged construction for continuous duty

• Lenze Engineering Tools: Supports EASY Starter and Global Drive Control

Order Now

The Lenze EVF9326-EVV004 is available and ready to ship globally.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
