Lenze ESV251N01SXB | Compact 0.33 HP Frequency Inverter for Industrial Applications

Overview

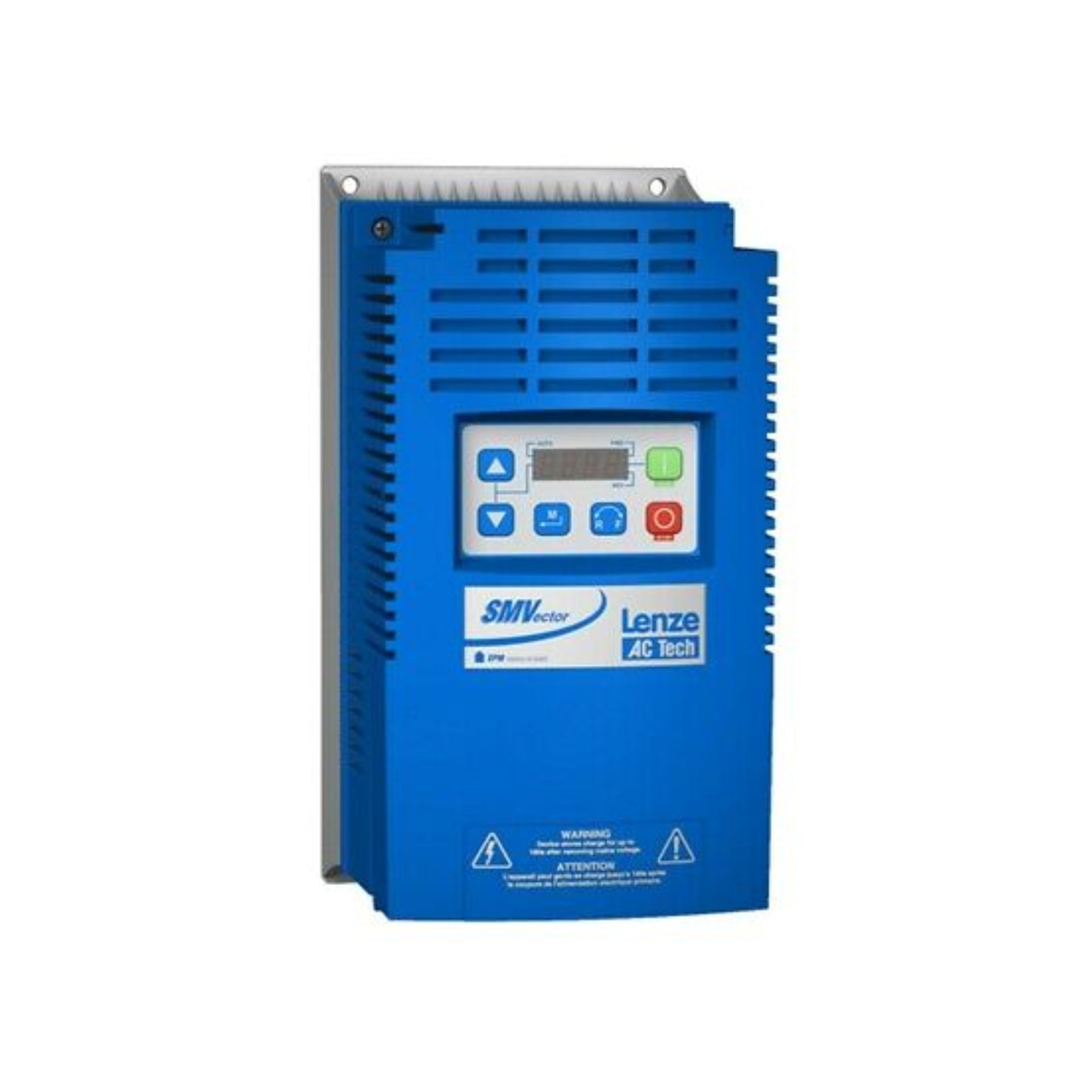

The Lenze ESV251N01SXB is a compact and efficient frequency inverter from the SMVector series, designed for precise motor control in various industrial applications. With a power rating of 0.33 HP (0.25 kW) and support for single-phase 120/240V inputs, it offers flexibility and reliability for your automation needs.

Key Features

• Power Rating: 0.33 HP (0.25 kW)

• Input Voltage: Single-phase 120/240V AC

• Output Voltage: 230V 3-phase

• Output Current: 1.7 A

• Control Method: Sensorless vector control for precise motor operation

• Integrated Functions:

  • DC braking

  • PID control

  • S-ramps for smooth acceleration

  • Fixed frequencies

  • Freely configurable inputs and outputs

• Protection Class: NEMA 1 (IP31) for standard industrial environments

• Cooling Method: Natural convection

• Compact Design: Space-saving installation in control cabinets

• Communication Interfaces: Optional modules for Modbus RTU, CANopen, PROFIBUS DP

• Display: LED display for easy monitoring

Technical Specifications

• Catalog Number: ESV251N01SXB

• Input Voltage: Single-phase 120/240V AC

• Rated Output Power: 0.33 HP (0.25 kW)

• Rated Output Current: 1.7 A

• Output Frequency: 0–500 Hz

• Switching Frequency: 4, 6, 8, 10, 12, or 16 kHz

• Dimensions (H x W x D): 190 mm x 99 mm x 111 mm

• Weight: 1.8 kg

• Operating Temperature Range: -10°C to 55°C (14°F to 131°F)

• Certifications: CE, UL, cUL

Applications

• Conveyor systems

• Packaging machinery

• Material handling equipment

• Pumps and fans

• General automation systems

Why Choose the ESV251N01SXB?

• Precise Motor Control: Sensorless vector control technology ensures accurate speed and torque regulation

• Flexible Input Options: Compatible with single-phase 120/240V supplies

• Integrated Functions: Built-in features reduce the need for external components

• Compact Footprint: Saves space in control panels and enclosures

• Easy Integration: Optional communication modules for seamless integration into various networks

• User-Friendly Interface: LED display and configurable inputs/outputs simplify operation
