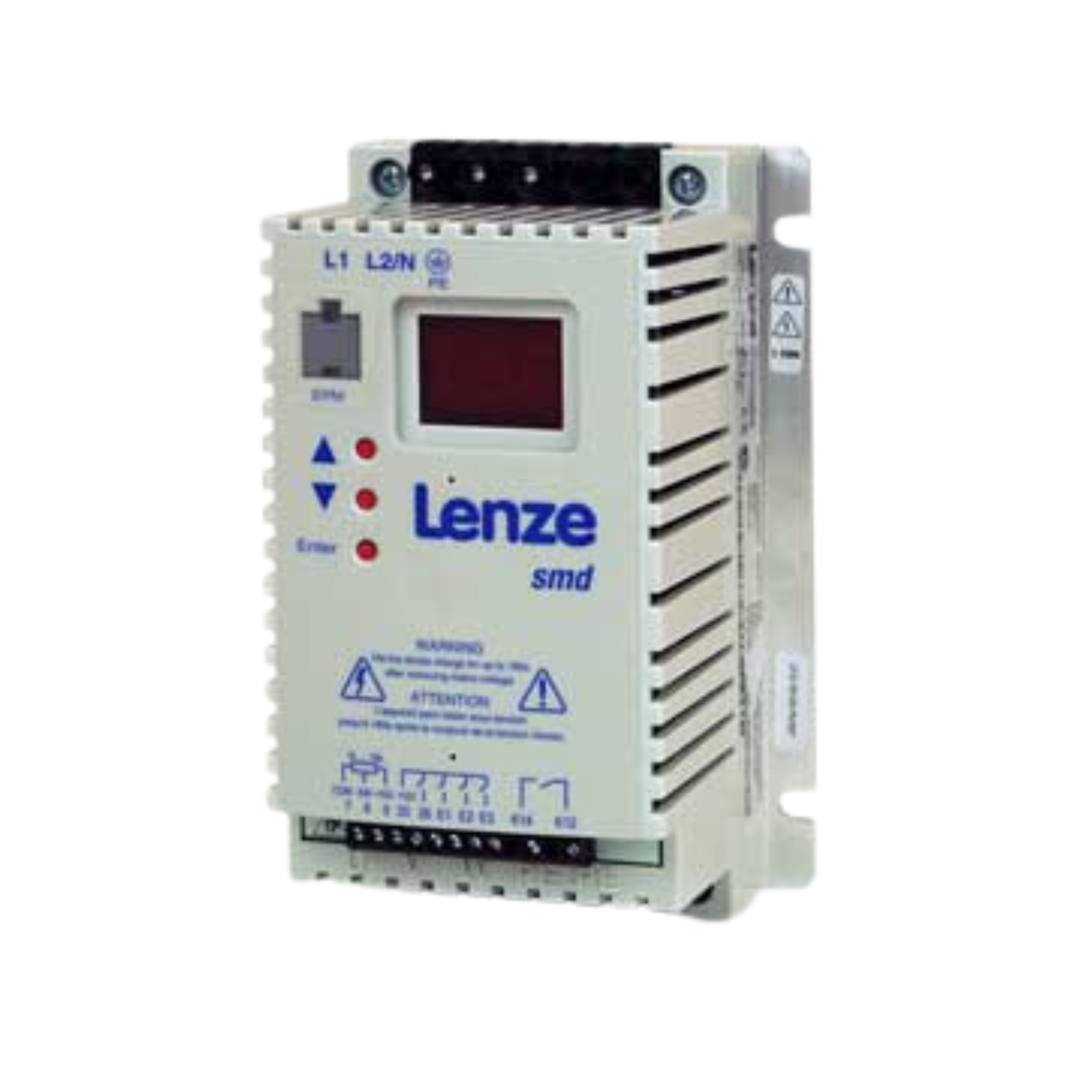

Lenze ESMD222X2SFA

Lenze ESMD222X2SFA | High-Performance 2.2 kW Frequency Inverter for Industrial Applications

Overview

The Lenze ESMD222X2SFA is a high-performance frequency inverter from the SMD series, designed for precise and efficient motor control in various industrial applications. With a power rating of 2.2 kW and support for 1-phase 230V AC inputs, it offers reliable performance and seamless integration into automation systems.

Key Features

• Power Rating: 2.2 kW (3 HP)

• Input Voltage: Single-phase 230V AC

• Output Voltage: 0–230V AC

• Output Frequency: 0 to 500 Hz

• Control Method: V/f (Voltage/Frequency) control

• Integrated Functions:

  • DC braking

  • PID control

  • S-ramps for smooth acceleration

  • Fixed frequencies

  • Freely configurable inputs and outputs

• Protection Class: IP20 for standard industrial environments

• Cooling Method: Natural convection

• Compact Design: Space-saving dimensions for easy installation

• Communication Interfaces: Optional modules for enhanced connectivity

• Display: LED display for monitoring and configuration

Technical Specifications

• Catalog Number: ESMD222X2SFA

• Input Voltage: Single-phase 230V AC

• Rated Output Power: 2.2 kW

• Output Frequency: 0 to 500 Hz

• Output Current: 9.5 A

• Switching Frequency: Up to 10 kHz

• Dimensions (H x W x D): 146 mm x 114 mm x 140 mm

• Weight: Approximately 1.4 kg

• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)

• Certifications: CE, UL, cUL

Applications

• Conveyors and material handling systems

• Packaging machinery

• Pumps and fans

• HVAC systems

• General industrial automation

Why Choose the ESMD222X2SFA?

• Efficient Motor Control: V/f control ensures optimal performance for various motor types

• Compact and Lightweight: Easy to install in space-constrained environments

• Flexible Integration: Compatible with optional communication modules for system integration

• User-Friendly Interface: LED display and configurable I/O simplify setup and operation

• Energy Efficiency: Optimized performance reduces energy consumption and operational costs

Order Now

The Lenze ESMD222X2SFA Frequency Inverter is available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
