Lenze ESMD222L4TXA

Lenze ESMD222L4TXA | Reliable 2.2 kW Frequency Inverter for Industrial Applications

Overview

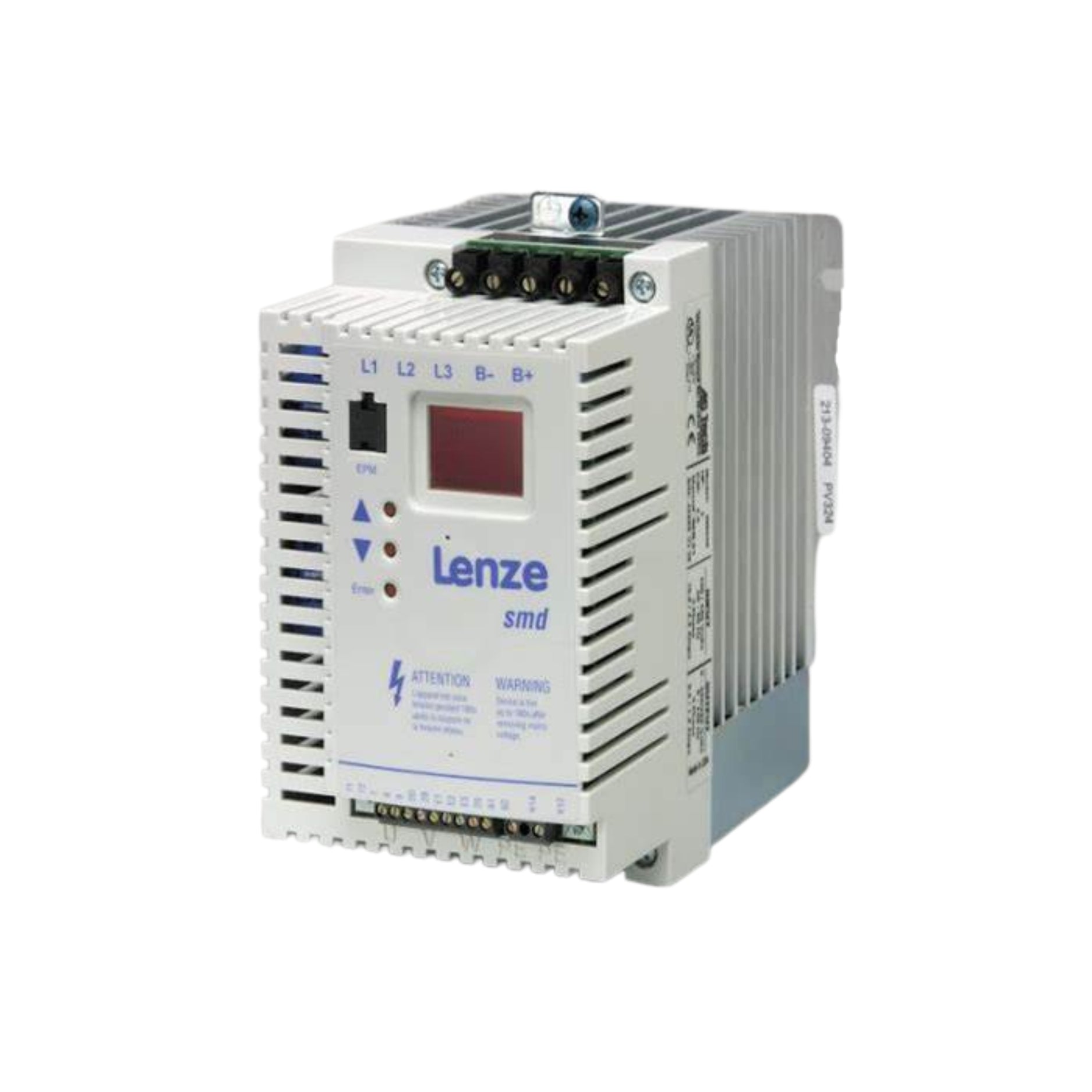

The Lenze ESMD222L4TXA is a robust and efficient frequency inverter from the SMD series, designed for precise motor control in various industrial applications. With a power rating of 2.2 kW and support for 3-phase 400/480V inputs, it offers flexibility and reliability for your automation needs.

Key Features

• Power Rating: 2.2 kW (3 HP)

• Input Voltage: 3-phase 400/480V AC

• Output Current: 5.8 A at 400V, 4.8 A at 480V

• Control Method: V/f control (linear or quadratic)

• Integrated Functions:

  • DC braking

  • Fault history buffer

  • S-ramps for smooth acceleration

  • Fixed frequencies

  • Freely configurable inputs and outputs

• Protection Class: IP20 for standard industrial environments

• Cooling Method: Forced air cooling

• Compact Design: Space-saving installation in control cabinets

• Communication Interfaces: RS485 (Modbus RTU), CAN-BUS

• Display: Clearly legible LED display for easy monitoring

Technical Specifications

• Catalog Number: ESMD222L4TXA

• Input Voltage: 3-phase 400/480V AC

• Rated Output Power: 2.2 kW

• Rated Output Current: 5.8 A at 400V, 4.8 A at 480V

• Output Frequency: 0–240 Hz (standard), up to 500 Hz

• Dimensions (W x H x D): 114 mm x 146 mm x 133 mm

• Weight: 1.4 kg

• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)

• Certifications: CE, cULus, C-Tick

Applications

• Conveyor systems

• Packaging machinery

• Material handling equipment

• Pumps and fans

• General automation systems

Why Choose the ESMD222L4TXA?

• Versatile Control: V/f control suitable for a wide range of applications

• Integrated Functions: Built-in features reduce the need for external components

• Compact Footprint: Saves space in control panels and enclosures

• Easy Integration: Compatible with standard industrial communication protocols

• User-Friendly Interface: LED display and configurable inputs/outputs simplify operation

Order Now

Available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
