Lenze EMZ9374IB

Lenze EMZ9374IB | Flexible I/O Expansion Module for Lenze 9300 Series Drives

Overview

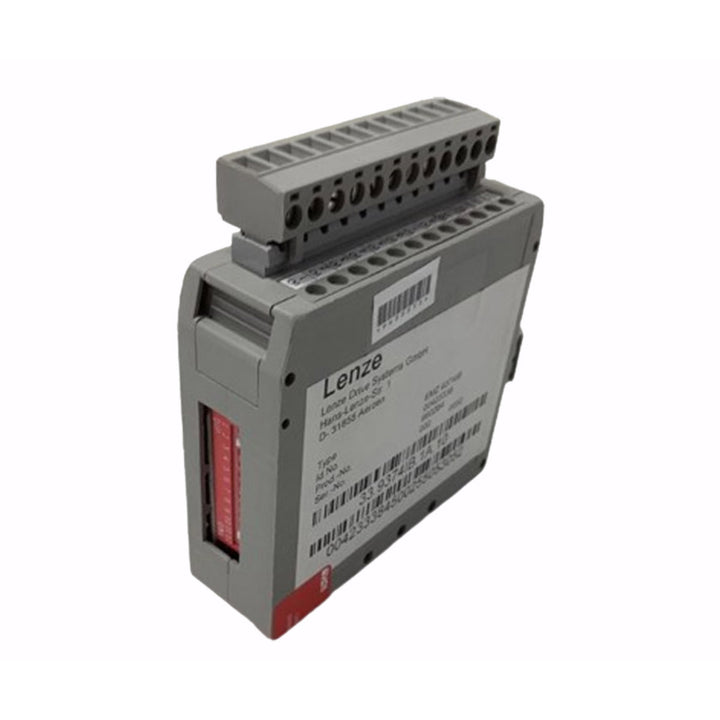

The Lenze EMZ9374IB is a plug-in terminal expansion module that increases the digital input/output capacity of compatible Lenze frequency inverters and controllers, particularly those in the 9300 series. Designed for DIN rail installation, it supports complex control architectures by enabling flexible I/O extensions in tight spaces.

Key Features

• Model: EMZ9374IB

• Function: Adds 8 digital I/O to Lenze drives

• Compatibility: Lenze 9300 series (servo and positioning controllers)

• I/O Type: Digital, configurable as input or output

• Mounting: DIN rail

• Connection: Plug-in terminal blocks for quick setup

• Protection Class: IP20

• Status Indicators: LED diagnostics for I/O channels

• Flexible Control: Enhances system modularity and programming options

Technical Specifications

• Supply Voltage: Provided via drive/controller

• Number of Channels: 8 digital (freely configurable)

• Input Type: 24 V DC

• Output Current: Max 0.5 A per output

• Dimensions (H x W x D): 93 mm x 67 mm x 38 mm

• Weight: 0.11 kg

• Operating Temp: -10°C to 60°C (14°F to 140°F)

• Certifications: CE, UL, cUL

Applications

• Machine I/O extension

• Packaging and labeling lines

• Positioning and servo drive logic

• Factory automation and conveyor systems

• Retrofit and expansion of Lenze 9300-based panels

Why Choose the EMZ9374IB?

• Seamless Integration: Directly connects with Lenze 9300 drives

• Expanded I/O: Adds extra control points without additional controllers

• Compact and Modular: Easy to install on DIN rails

• Reliable Design: Built for industrial environments with LED diagnostics

• Configurable Logic: Tailor digital inputs/outputs to suit your application

Order Now

Available for immediate delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
