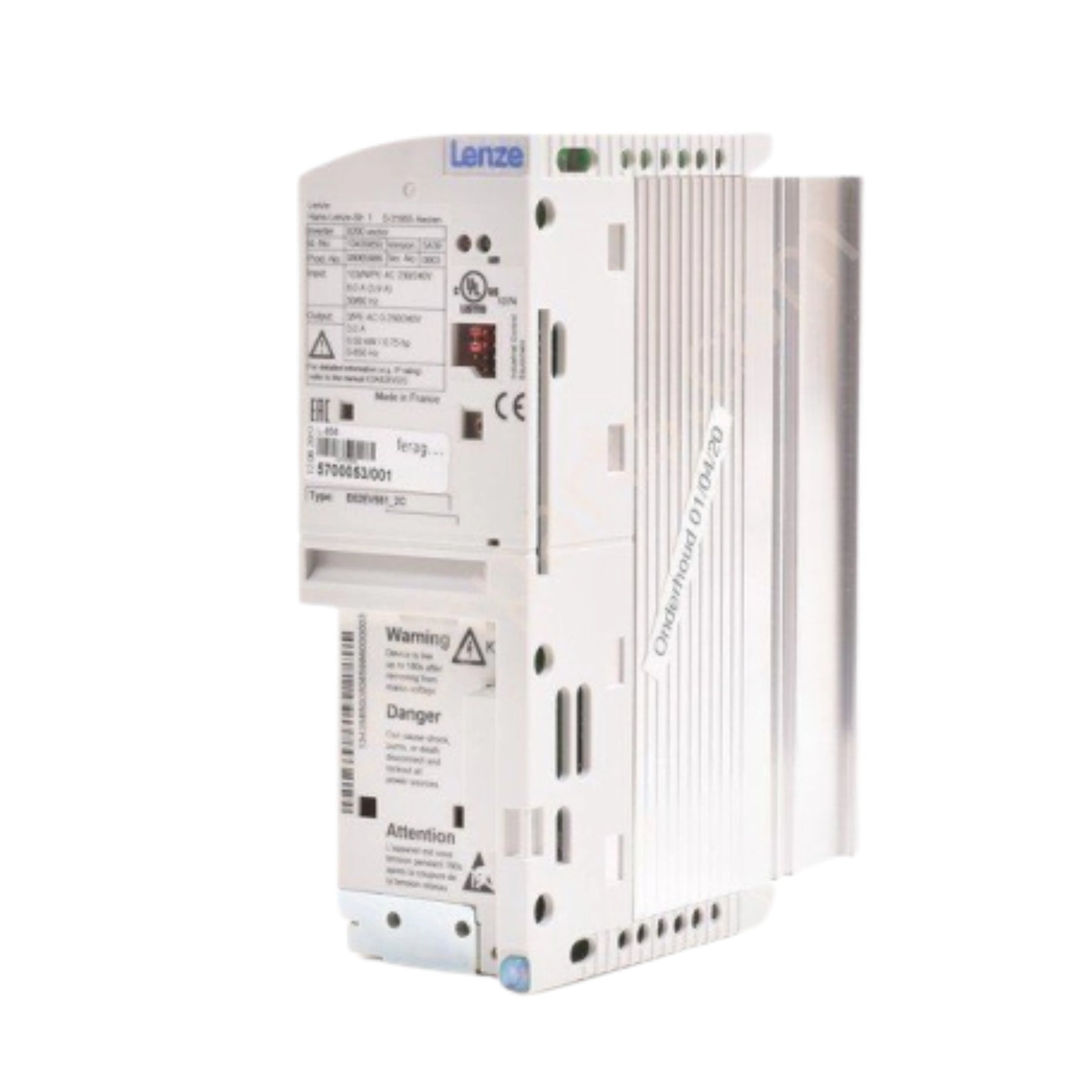

Lenze E82EV551_2C

Lenze E82EV551_2C | Compact 0.55 kW Frequency Inverter for Industrial Applications

Overview

The Lenze E82EV551_2C is a compact and efficient frequency inverter from the 8200 Vector series, designed for precise motor control in various industrial applications. With a power rating of 0.55 kW and support for 230V AC inputs, it offers flexibility and reliability for your automation needs.

Key Features

• Power Rating: 0.55 kW (0.75 HP)

• Input Voltage: 1-phase 230V AC, 50/60 Hz

• Output Voltage: 3-phase 0–230V AC

• Output Current: 3.0 A

• Control Methods: V/f and sensorless vector control

• Integrated Functions:

  • DC braking

  • PID control

  • S-ramps for smooth acceleration

  • Fixed frequencies

  • Freely configurable inputs and outputs

• Protection Class: IP20 for standard industrial environments

• Cooling Method: Natural convection

• Modular Design: Supports plug-in modules for communication and I/O expansion

• Communication Interfaces: Optional modules for CANopen, PROFIBUS DP, and more

• Display: Optional keypad for easy monitoring and configuration

Technical Specifications

• Catalog Number: E82EV551_2C

• Input Voltage: 1-phase 230V AC

• Rated Output Power: 0.55 kW

• Rated Output Current: 3.0 A

• Output Frequency: 0–650 Hz

• Switching Frequency: Up to 16 kHz

• Dimensions (H x W x D): 146 mm x 70 mm x 146 mm

• Weight: Approximately 0.9 kg

• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)

• Certifications: CE, UL, cUL

Applications

• Conveyor systems

• Packaging machinery

• Material handling equipment

• Pumps and fans

• General automation systems

Why Choose the E82EV551_2C?

• Precise Motor Control: V/f and sensorless vector control technology ensures accurate speed and torque regulation

• Flexible Input Options: Compatible with single-phase 230V supplies

• Integrated Functions: Built-in features reduce the need for external components

• Compact Footprint: Saves space in control panels and enclosures

• Easy Integration: Optional communication modules for seamless integration into various networks

• User-Friendly Interface: Optional keypad and configurable inputs/outputs simplify operation

Order Now

Available for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
