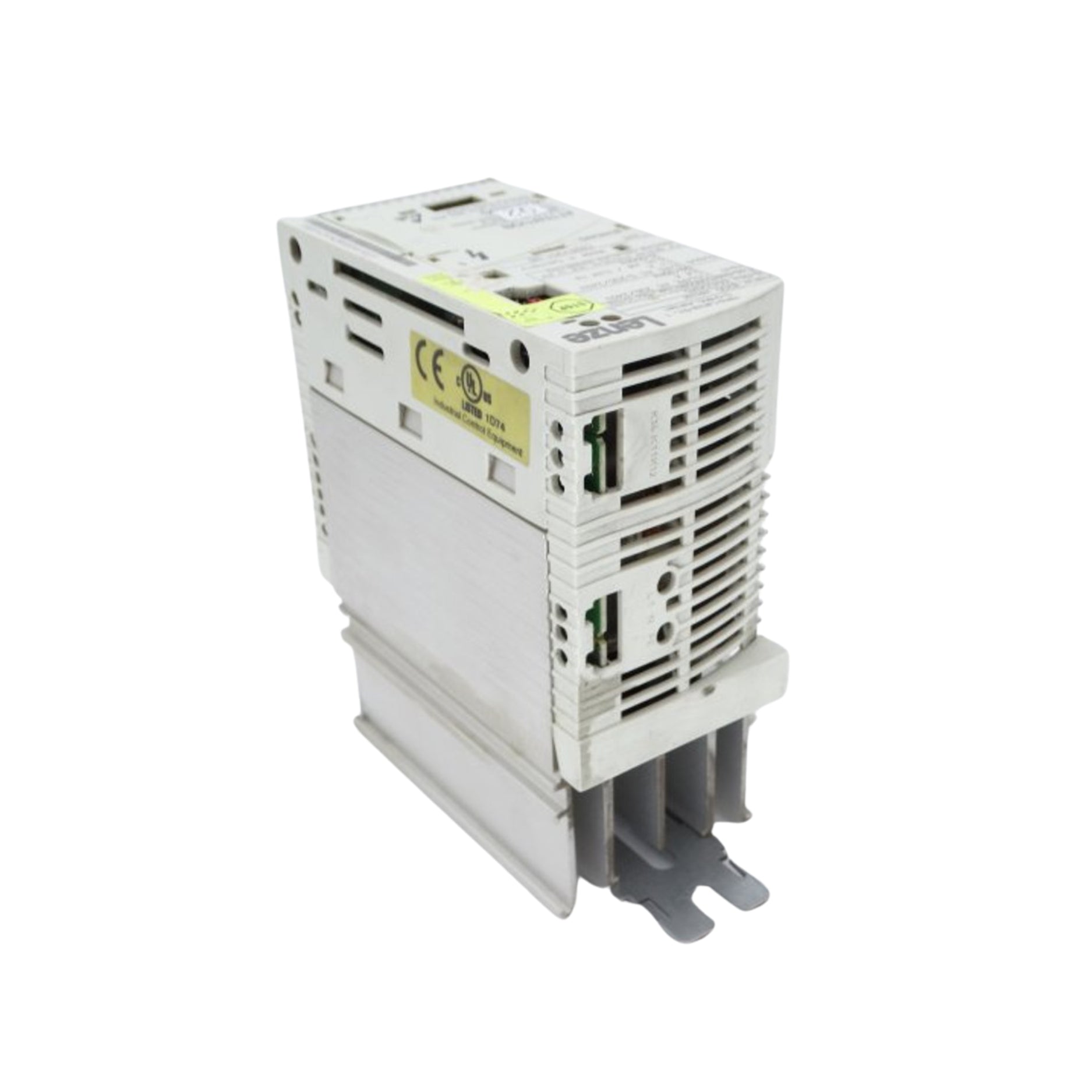

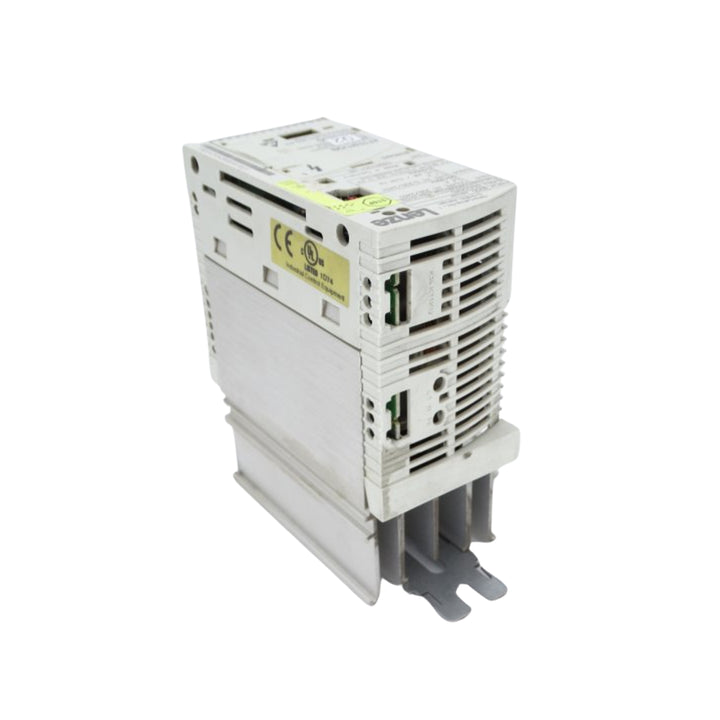

Lenze E82EV251_2B

Lenze E82EV251_2B | Compact 0.25 kW Vector Frequency Inverter for Precision Applications

Overview

The Lenze E82EV251_2B is a compact and modular frequency inverter from the 8200 Vector series, offering precise and dynamic motor control in low-power applications. With its 0.25 kW power rating and 1-phase 230V input, this drive is ideal for simple, space-saving automation tasks.

Key Features

• Rated Power: 0.25 kW

• Input Voltage: 1-phase 230V AC

• Output Voltage: 0–230V AC

• Control Method: Sensorless Vector Control (VVC+) and V/f control

• Integrated Functions:

  • PID control

  • DC braking

  • Built-in EMC filter

  • Integrated braking transistor

  • Adjustable ramp functions

• Modular Expansion: Compatible with communication and I/O plug-in modules

• Cooling: Natural convection or fan cooling

• Protection Class: IP20

Technical Specifications

• Model Number: E82EV251_2B

• Rated Output Current: ~1.5 A

• Frequency Range: 0 to 650 Hz

• Switching Frequency: Up to 16 kHz

• Ambient Temperature: 0°C to 45°C

• Dimensions (approx.): 173 x 73 x 148 mm

• Weight: ~1.2 kg

• Certifications: CE, UL, RoHS

Applications

• Small conveyors

• Fans and pumps

• Lab automation

• Positioning systems

• Compact machine tools

• Packaging and labeling

Why Choose the E82EV251_2B?

• Compact Performance: Ideal for low-power motor control in tight enclosures

• Precision Regulation: Sensorless vector control ensures smooth operation

• Flexible Integration: Supports a wide range of expansion options

• Modular Design: Easily add communication, I/O, or safety features

• Reliable and Safe: Compliant with key industry safety and quality standards

Order Now

The Lenze E82EV251_2B inverter is available for fast delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
