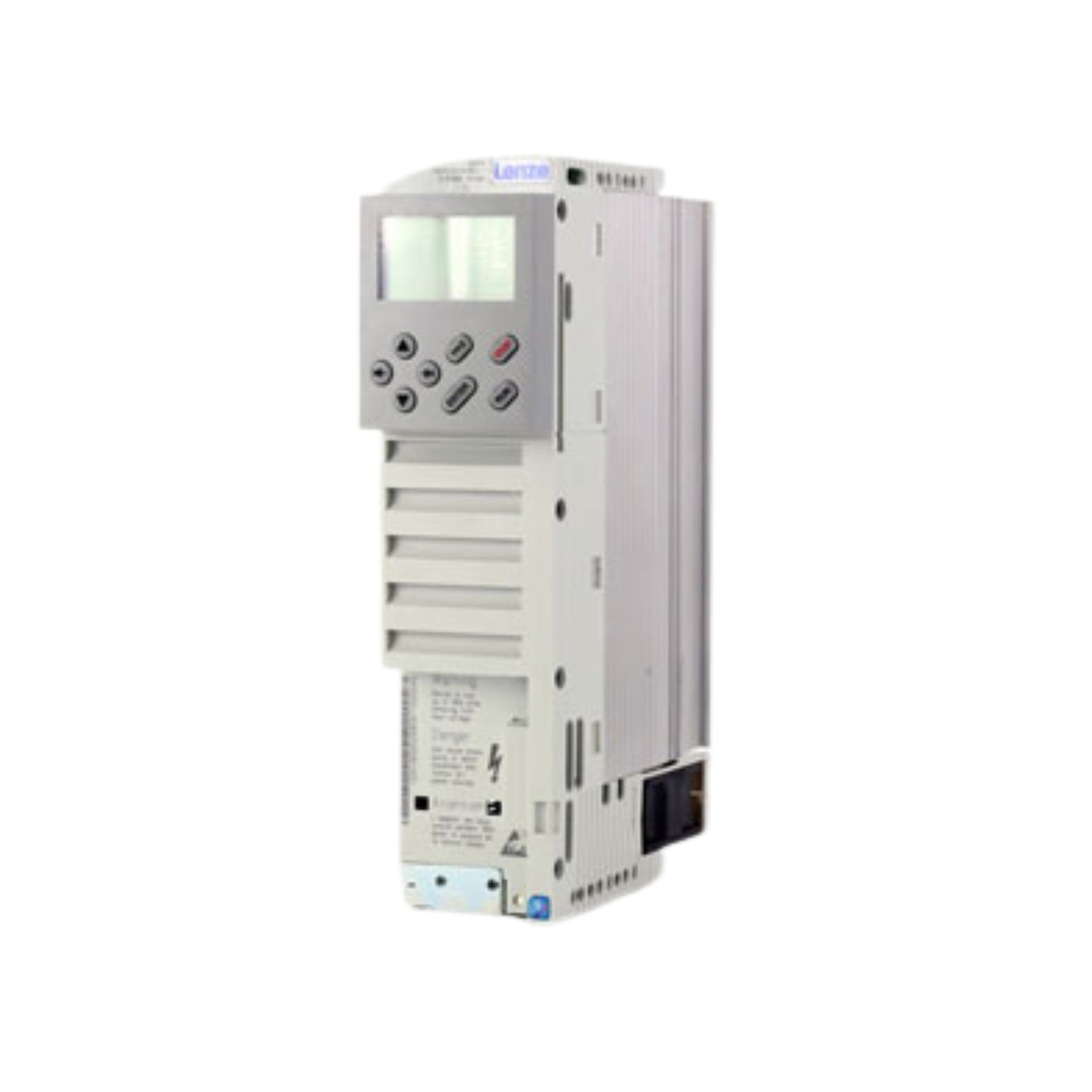

Lenze E82EV152K2C

Lenze E82EV152K2C | High-Performance 1.5 kW Frequency Inverter for Industrial Applications

Overview

The Lenze E82EV152K2C is a compact and efficient frequency inverter from the 8200 Vector series, designed for precise motor control in various industrial applications. With a power rating of 1.5 kW and support for both single-phase and three-phase 230V inputs, it offers flexibility and reliability for your automation needs.

Key Features

• Power Rating: 1.5 kW (2.0 HP)

• Input Voltage: 1/3-phase 230V AC ±10%

• Output Current: Rated 7 A, maximum 10.5 A

• Control Method: Vector control for precise motor operation

• Integrated Brake Transistor: Enables dynamic braking without external components

• Protection Class: IP20 for standard industrial environments

• Cooling Method: Forced air cooling

• Compact Design: Space-saving installation in control cabinets

• Modular Expansion: Supports plug-in modules for communication and I/O expansion

Technical Specifications

• Catalog Number: E82EV152K2C

• Input Voltage: 1/3-phase 230V AC ±10%

• Rated Output Power: 1.5 kW

• Rated Output Current: 7 A

• Maximum Output Current: 10.5 A

• Power Loss: Approximately 100 W

• Dimensions (H x W x D): 240 mm x 60 mm x 140 mm

• Weight: 1.6 kg

• Operating Temperature Range: -10°C to 45°C (14°F to 113°F)

• Certifications: CE, UL, cUL

Applications

• Conveyor systems

• Packaging machinery

• Material handling equipment

• Pumps and fans

• General automation systems

Why Choose the E82EV152K2C?

• Precise Motor Control: Vector control technology ensures accurate speed and torque regulation

• Flexible Input Options: Compatible with both single-phase and three-phase 230V supplies

• Integrated Braking: Built-in brake transistor simplifies installation and reduces costs

• Modular Design: Easily expandable with communication and I/O modules

• Compact Footprint: Saves space in control panels and enclosures

Order Now

Available for immediate shipment.

Return to Lenze 8200 Vector Frequency Inverters for more options in this series.

Explore our full range of Lenze Industrial Automation Products to find frequency inverters, servo drives, motors, and other motion control solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
