Infineon FZ600R12KS4

Infineon FZ600R12KS4

Overview

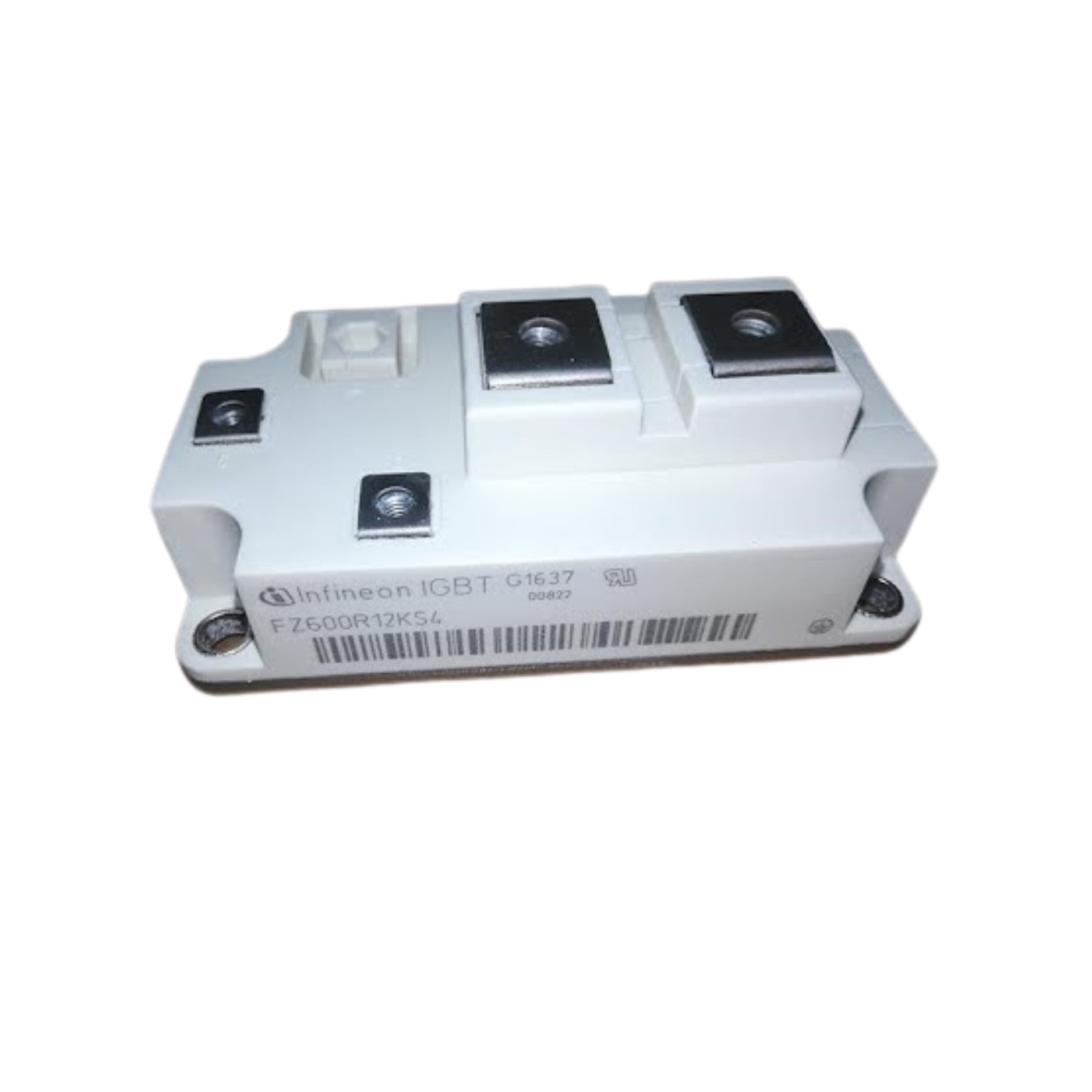

The Infineon FZ600R12KS4 is a high-power IGBT module in PrimePACK™ 2 housing, optimized for demanding industrial and energy applications. It offers 600 A current handling at 1200 V with low switching losses and robust thermal characteristics. Built for efficiency and reliability in motor drives, power converters, and renewable systems.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 600 A

• Trench/Field-stop IGBT4 technology

• Integrated fast recovery free-wheeling diode

• PrimePACK 2 industry-standard package

• High isolation and thermal cycling capability

• Chassis mount for secure installation

Technical Specifications

• Part Number: FZ600R12KS4

• Voltage Rating: 1200 V

• Current Rating: 600 A

• Housing Type: PrimePACK 2

• Isolation Voltage: ≥4000 V

• Switching Frequency: Up to 10 kHz

• Mounting: Chassis mount with screw terminals

• Operating Temperature: –40 °C to +150 °C (Tj)

• Application Class: Industrial, traction, energy

Applications

• Industrial motor drives

• Wind and solar power inverters

• Traction systems

• Welding and induction heating

• Power converters and UPS

Why Choose the FZ600R12KS4

• Reliable under harsh industrial conditions

• PrimePACK 2 design simplifies system integration

• High efficiency and thermal performance

• Backed by Infineon's proven IGBT4 technology

Order Now

The Infineon FZ600R12KS4 IGBT module is available and ships worldwide.
