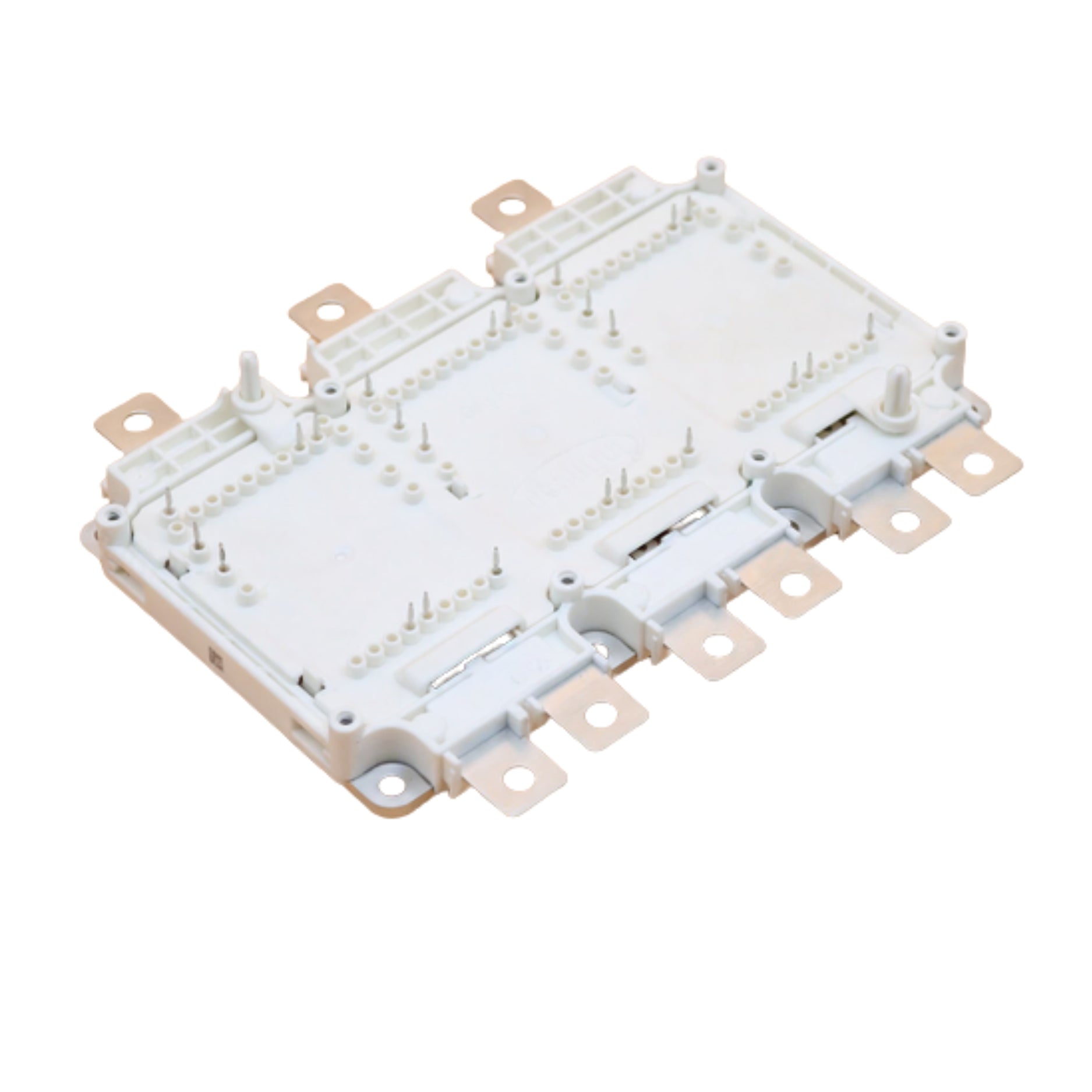

Infineon FS820R08A6P2B

Infineon FS820R08A6P2B

Overview

The Infineon FS820R08A6P2B is a high-performance IGBT module designed for advanced power electronics applications. Housed in a PrimePACK™ 2 package, it offers a current rating of 820 A and a voltage rating of 800 V. With low switching losses and robust thermal capabilities, this module is ideal for high-efficiency motor drives, renewable energy systems, and industrial inverters.

Key Features

• Collector-Emitter Voltage: 800 V

• Continuous Collector Current: 820 A

• Trench/Field-stop IGBT technology

• PrimePACK 2 industry-standard package

• Integrated NTC temperature sensor

• High thermal conductivity and low inductance

• Chassis mount with screw terminals

Technical Specifications

• Part Number: FS820R08A6P2B

• Voltage Rating: 800 V

• Current Rating: 820 A

• Package: PrimePACK 2

• Isolation Voltage: ≥4000 V

• Operating Temperature: –40 °C to +150 °C (Tj)

• Mounting: Chassis mount

• Control: NTC thermistor integrated

• Switching Frequency: Up to 10 kHz

Applications

• Motor drives and industrial automation

• Wind and solar inverters

• High-power UPS systems

• Railway and traction systems

• Power conversion systems

Why Choose the FS820R08A6P2B

• Delivers high current capacity in a compact design

• Excellent thermal performance and switching efficiency

• Reliable and rugged for harsh environments

• Compatible with standard PrimePACK systems

Order Now

The Infineon FS820R08A6P2B IGBT module is available and ships worldwide.
