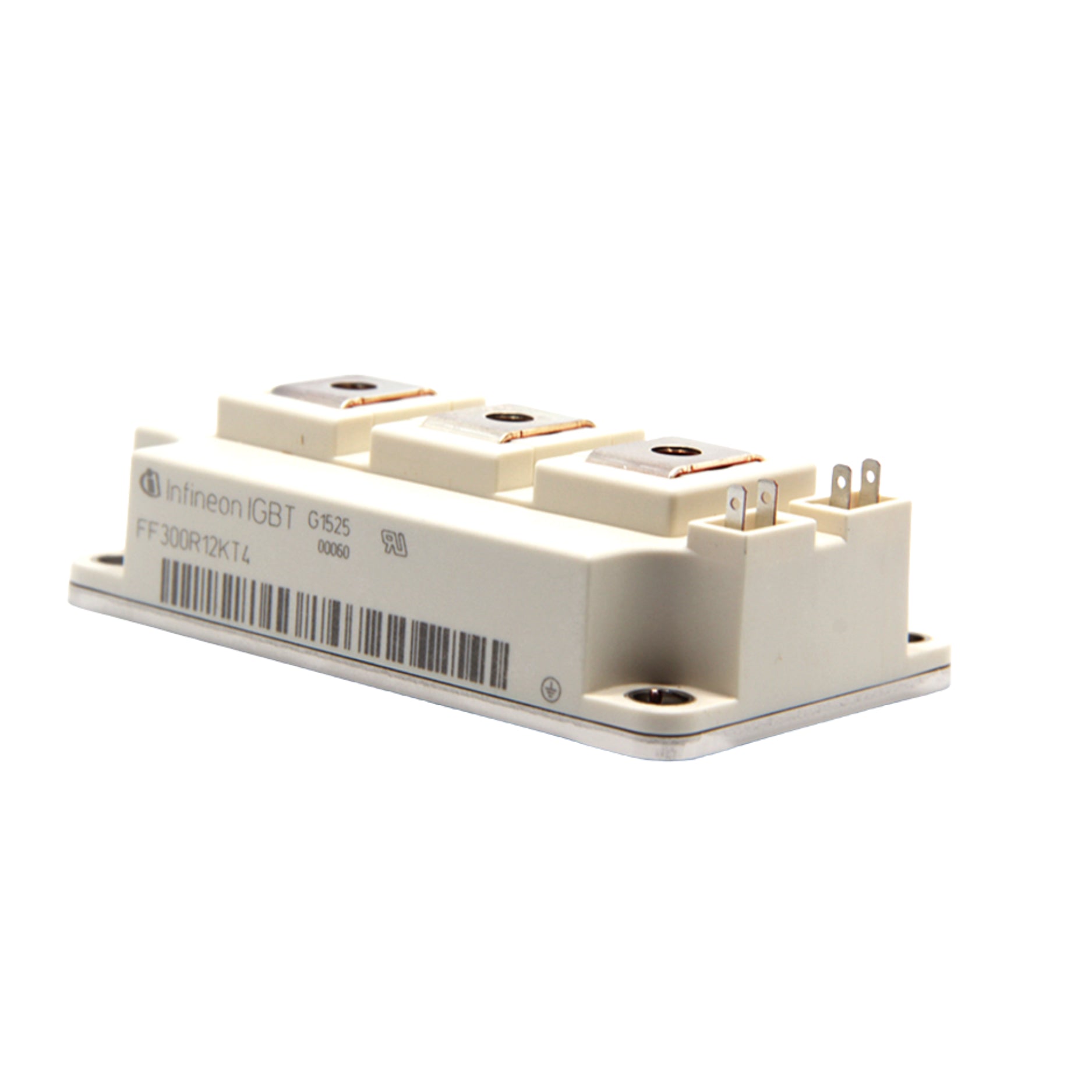

Infineon FF300R12KT4

Infineon FF300R12KT4

Overview

The Infineon FF300R12KT4 is a high-performance IGBT module designed for demanding industrial power applications. Rated at 300 A and 1200 V, this 62 mm module features trench/field-stop IGBT4 technology for fast switching, low conduction losses, and enhanced thermal performance. Suitable for motor drives, power converters, and renewable energy systems.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 300 A

• Low VCE(sat) for high efficiency

• Trench/Field-Stop IGBT4 technology

• Built-in fast recovery free-wheeling diode

• Robust insulated baseplate

• Chassis mount with screw terminals

Technical Specifications

• Part Number: FF300R12KT4

• Voltage Rating: 1200 V

• Current Rating: 300 A

• Switching Frequency: Up to 20 kHz

• Package: 62 mm standard industrial housing

• Isolation Voltage: ≥2500 V

• Operating Temperature: –40 °C to +150 °C (Tj)

• Mounting: Screw terminal, chassis mount

• Technology: Trench/Field-Stop IGBT4

Applications

• Variable frequency drives (VFDs)

• Industrial motor control

• Renewable energy inverters

• UPS systems

• Welding and induction equipment

Why Choose the FF300R12KT4

• Reliable and efficient for heavy-duty industrial use

• Compact 62 mm package with high power density

• Superior thermal performance and durability

• Trusted quality from Infineon

Order Now

The Infineon FF300R12KT4 IGBT module is available and ships worldwide.

Return to the Infineon IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
