Allen-Bradley 800T-FXQH2RAV

Allen-Bradley 800T-FXQH2RAV | Illuminated 30mm Red Push Button for Industrial Control Panels

Overview

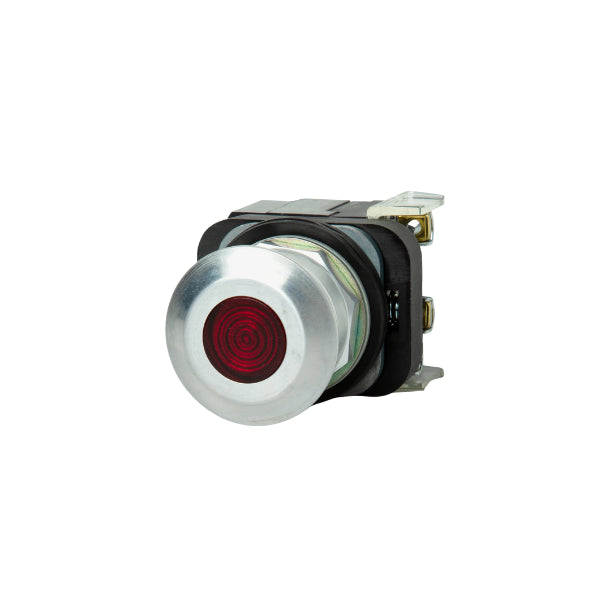

The Allen-Bradley 800T-FXQH2RAV is a heavy-duty, 30mm momentary illuminated push button switch designed for harsh industrial environments. With a red lens, transformer type illumination, and two normally open (N.O.) contacts, this button offers reliable operation in control stations and operator panels that demand durability and clarity.

Key Features

• Operator Type: Illuminated push button

• Color: Red

• Action: Momentary (spring return)

• Contact Configuration: 2 N.O. (normally open)

• Voltage Rating: 120V AC

• Illumination Type: Transformer type lamp circuit

• Operator Size: 30mm

• Construction: Heavy-duty die-cast metal

• Enclosure Rating: Type 4, 13 (oiltight and watertight)

• Panel Mount: Standard 30mm hole

• LED Lamp compatibility

Technical Specifications

• Catalog Number: 800T-FXQH2RAV

• Operator Style: Extended button

• Contact Block: Screw terminal type

• Mounting: Front panel, 30mm diameter

• Ambient Temp: -20°C to 65°C

• Standards: UL, CSA, CE, RoHS

• Mechanical Life: Up to 10 million operations

Applications

• Industrial control stations

• Machine start/stop functions

• Operator interface panels

• OEM equipment

• Harsh environment control enclosures

Why Choose the 800T-FXQH2RAV?

• Durable and reliable for demanding applications

• Transformer-based illumination for stable visibility

• Easy to wire and install in standard 30mm panels

• UL Type 4/13 for wet, oily, and dusty environments

• Trusted performance from Allen-Bradley 800T series

Order Now

In stock and shipping worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
