GE ST-1218

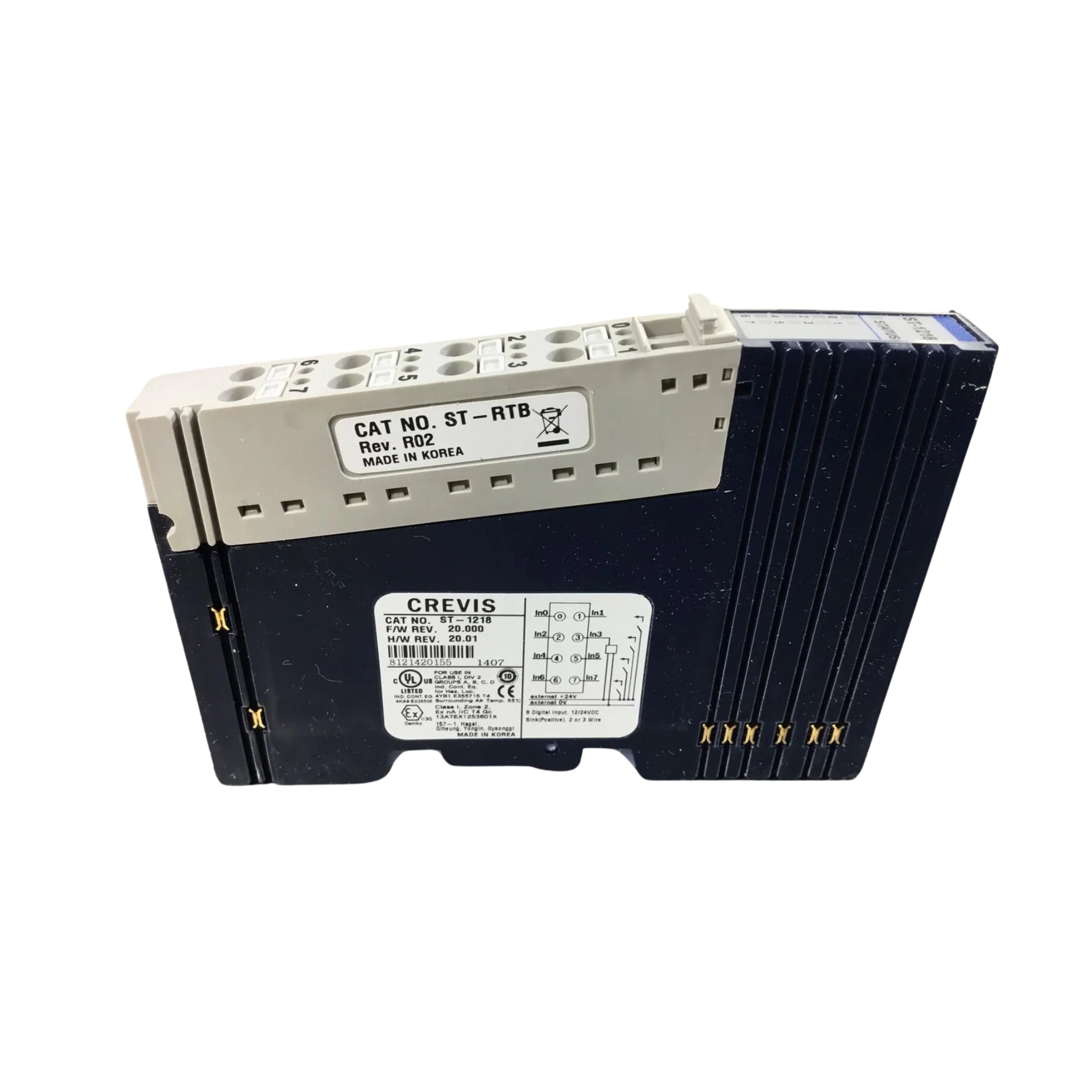

GE Fanuc ST-1218 | Compact 8-Channel Digital Input Module for RSTi Systems

Overview

The GE Fanuc ST-1218 is a high-performance digital input module for the RSTi I/O system, featuring 8 sourcing inputs for 24VDC signals. It is designed to collect discrete signals from field devices such as switches and sensors. With a compact DIN-rail mountable form factor and support for hazardous location installation, it's well-suited for industrial and process automation applications.

Key Features

• Digital Inputs: 8 sourcing (positive logic) channels

• Input Voltage: 24VDC (operational range: 11–28.8VDC)

• Logic Type: Positive logic (ON >10.2V, OFF <5V)

• Input Delay: Fixed 3 ms response time

• LED Indicators: Per-channel status indication

• System Power Draw: 35 mA at 5VDC

• Certifications: UL 508, CSA, CE, Class I Div 2 / Zone 2

Technical Specifications

• Model Number: ST-1218

• Channels: 8 sourcing digital inputs

• Input Current: 3.5 mA @ 24VDC

• Operating Temperature: -20°C to +60°C

• Storage Temp: -40°C to +85°C

• Mounting Type: DIN rail

• Dimensions: Approx. 12 x 99 x 70 mm

• Weight: ~120 g

Applications

• Machine input signal monitoring

• Sensor feedback for PLC logic

• Distributed I/O in factory automation

• High-speed signal acquisition in hazardous environments

Why Choose the ST-1218?

• Compact Design: Saves space in control cabinets

• Fast Response Time: Ideal for time-critical automation processes

• Industrial-Grade Build: Operates reliably in rugged environments

• Field Proven: Part of the robust RSTi I/O platform

• Visual Diagnostics: LED indicators simplify troubleshooting

Order Now

The GE ST-1218 digital input module is in stock and ready for deployment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
