GE IC697CMM742

GE Fanuc IC697CMM742 | Ethernet Interface Module | Series 90-70 | Type 2 | 10BaseT / 10Base2 / AUI

Overview

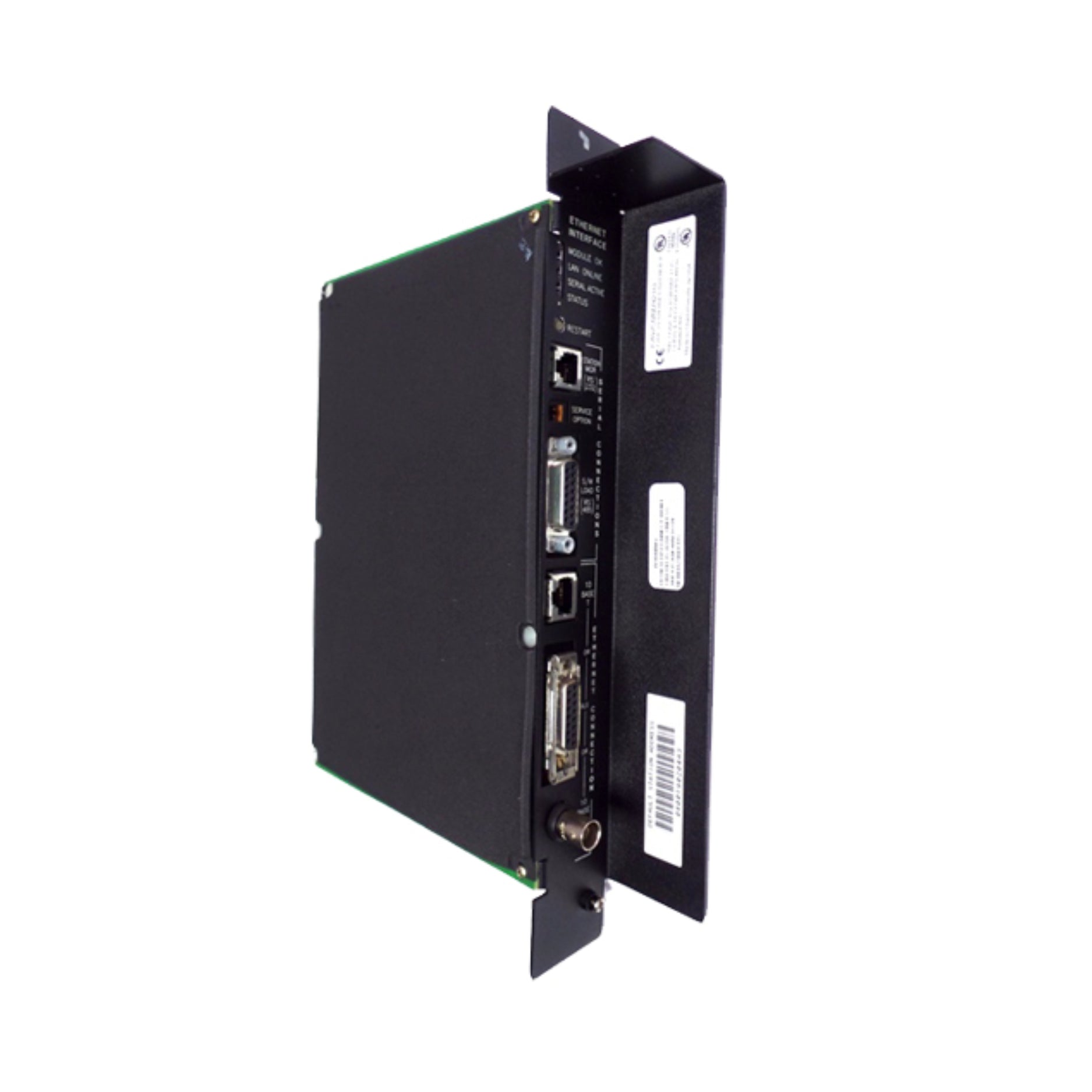

The GE Fanuc IC697CMM742 is a Type 2 Ethernet Interface Module designed for the Series 90-70 PLC systems. It facilitates high-performance TCP/IP communications, enabling seamless integration of PLCs into Ethernet networks. The module supports multiple network media types, providing flexibility in network configurations.

Key Features

• Network Ports:

  • 10BaseT (RJ-45): Direct connection to twisted pair Ethernet networks.

  • 10Base2 (BNC): Direct connection to ThinWire coaxial Ethernet networks.

  • AUI (15-pin D-connector): Allows connection to various media types using external transceivers.

• Communication Protocols:

  • SRTP (Service Request Transport Protocol): For TCP/IP communication services.

  • Ethernet Global Data (EGD): Supports both configuration-based and logic-based data exchange.

• Firmware:

  • Preloaded for easy installation.

  • Upgradable in-system via RS-485 serial port.

• Indicators:

  • MODULE OK: Indicates module status.

  • LAN ONLINE: Shows network connection status.

  • SERIAL ACTIVE: Displays serial port activity.

  • STATUS: Provides diagnostic information.

• Installation:

  • Occupies a single slot in the Series 90-70 PLC rack.

  • Up to four Ethernet Interface Modules can be installed in a single PLC CPU rack.

Technical Specifications

• Model Number: IC697CMM742

• Supported Media Types: 10BaseT, 10Base2, 10Base5, 10BaseF, 10Broad36 (via AUI with appropriate transceivers)

• Power Requirements:

  • +5 VDC: 2.0 Amps (typical)

  • +12 VDC: 0.5 Amps (maximum when using external AUI transceiver)

• Operating Temperature: 0°C to +55°C (32°F to 131°F)

• Compliance: IEEE 802.3 CSMA/CD 10Mbps Ethernet LAN

• Serial Ports:

  • RS-232 (6-pin RJ-11): For station management.

  • RS-485 (15-pin D-type): For software loading.

Applications

• Integrating Series 90-70 PLCs into Ethernet networks.

• Facilitating communication between PLCs and host computers.

• Enabling remote programming and diagnostics.

• Supporting data exchange in industrial automation systems.

Why Choose the IC697CMM742?

• Versatility: Supports multiple Ethernet media types for flexible network integration.

• Reliability: Designed for industrial environments with robust performance.

• Ease of Use: Preloaded firmware and in-system upgrades simplify maintenance.

• Scalability: Supports installation of multiple modules within a single PLC system.

Order Now

The GE Fanuc IC697CMM742 Ethernet Interface Module is available for immediate shipment.
