GE IC697CMM711

GE Fanuc IC697CMM711 | Communications Coprocessor Module | Series 90-70 | Dual Serial Ports | 12 MHz

Overview

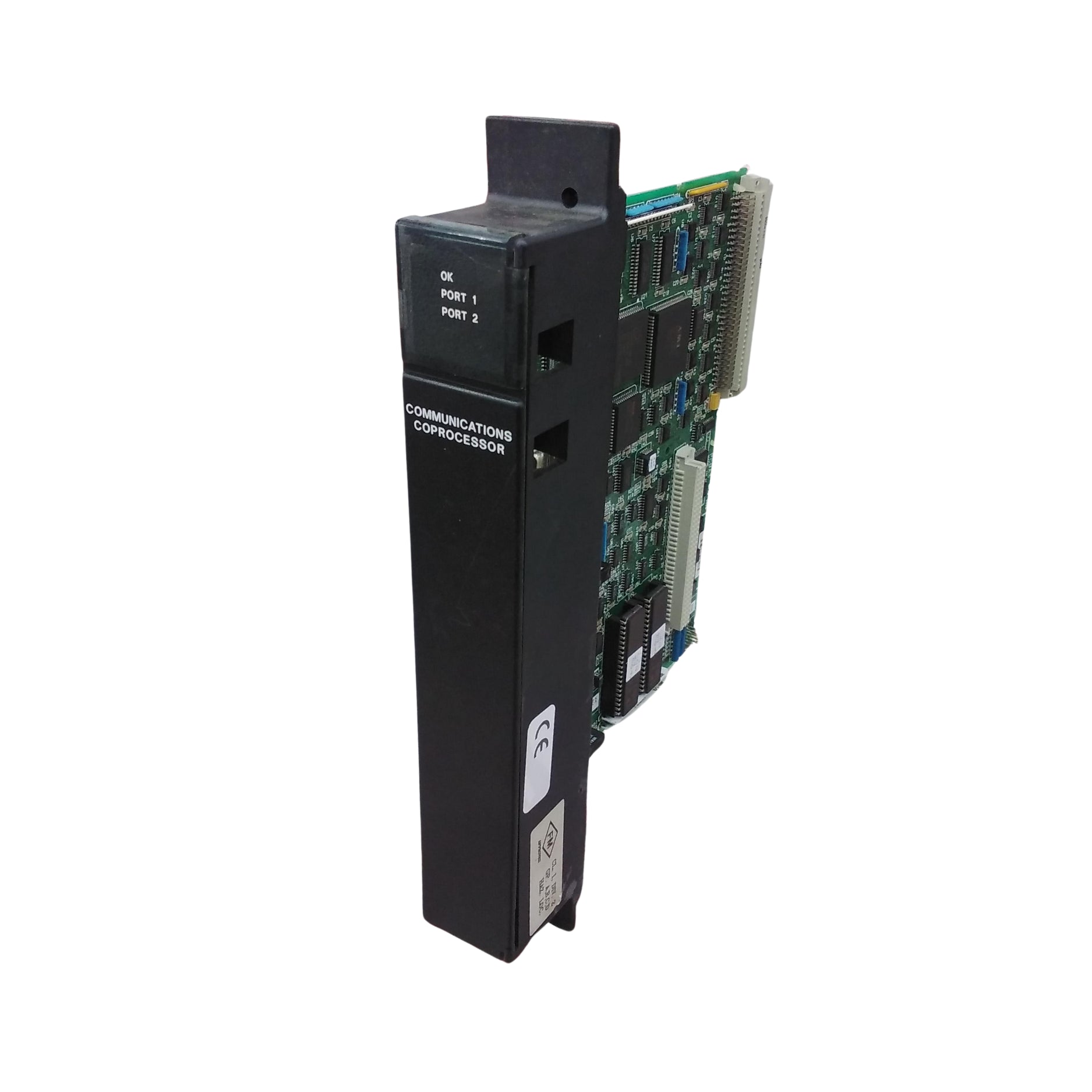

The GE Fanuc IC697CMM711 is a Communications Coprocessor Module (CMM) designed for the Series 90-70 PLC systems. It provides enhanced communication capabilities by supporting multiple protocols and dual serial ports, facilitating efficient data exchange in industrial automation environments.

Key Features

• Processor: 12 MHz Intel 80C186 microprocessor

• Serial Ports: Two configurable RS-232 or RS-422/RS-485 ports

• Supported Protocols:

  • CCM (Communications Control Module): Master, Slave, and Peer modes

  • RTU (Remote Terminal Unit): Slave mode

  • SNP/SNPX (Serial Network Protocol): Master and Slave modes

• Configuration: Soft switch setup; no physical switches or jumpers required

• Indicators: Three LEDs for module and port status

• Reset: Pushbutton for module reset

• Memory: 128 KB SRAM for communication tasks

• Installation: Occupies a single slot in the Series 90-70 rack

• Power Requirements: 5V DC at 0.7A

• Operating Temperature: 0°C to 60°C

Technical Specifications

• Model Number: IC697CMM711

• Microprocessor: Intel 80C186, 12 MHz

• Memory: 128 KB SRAM

• Serial Ports: Two 25-pin D-shell connectors, configurable for RS-232 or RS-422/RS-485

• Protocols Supported: CCM, RTU (slave), SNP/SNPX

• Configuration: Software-configurable; no hardware switches or jumpers

• Status Indicators: Three LEDs (Module OK, Port 1 Activity, Port 2 Activity)

• Reset Function: Pushbutton on the front panel

• Power Consumption: 0.7A at 5V DC

• Operating Temperature Range: 0°C to 60°C

• Certifications: UL, CSA, CE

Applications

• Industrial Automation: Facilitates communication between PLCs and other devices

• Process Control Systems: Enables integration of various communication protocols

• Data Acquisition: Supports efficient data exchange in monitoring systems

• Legacy System Integration: Provides connectivity options for older equipment

Why Choose the IC697CMM711?

• Versatility: Supports multiple communication protocols for diverse applications

• Dual Ports: Allows simultaneous connections to different devices or networks

• Easy Configuration: Software-based setup simplifies installation and maintenance

• Reliability: Designed for industrial environments with robust performance

Order Now

The GE Fanuc IC697CMM711 Communications Coprocessor Module is available for immediate shipment.
