GE Fanuc IC697ALG320 | 4-Channel Analog Output Module | ±10VDC / 0–20mA | 16-Bit Resolution | Series 90-70

Overview

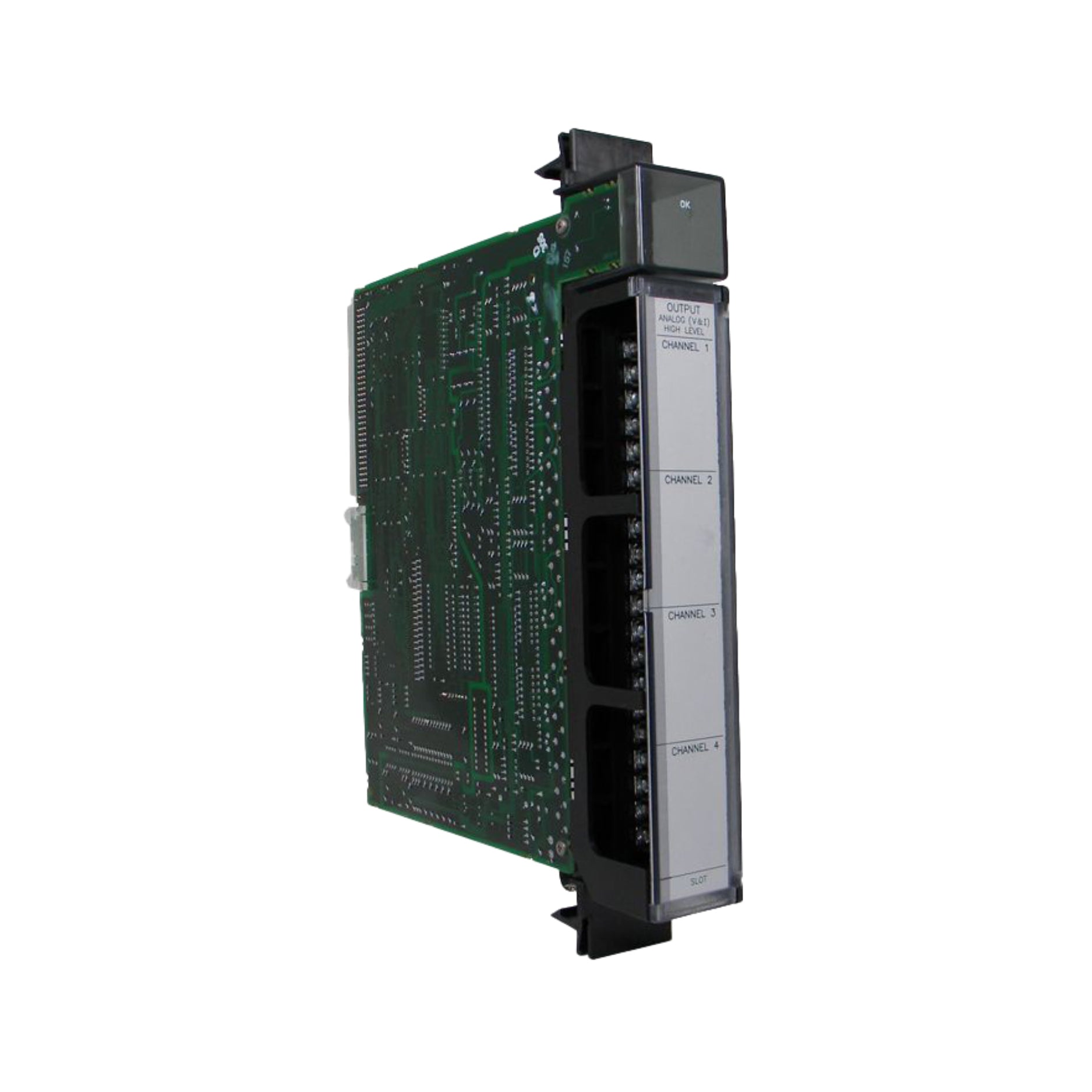

The GE Fanuc IC697ALG320 is a high-performance analog output module designed for the Series 90-70 PLC systems. It offers four individually configurable channels that can output either voltage or current signals, providing flexibility for various industrial control applications. With a 16-bit resolution, it ensures precise signal generation for accurate process control.

Key Features

• Channels: 4 analog outputs

• Output Types: Individually configurable for voltage or current

• Voltage Output Range: -10V to +10V

• Current Output Range: 0 to 20mA or 4 to 20mA

• Resolution: 16-bit with 14-bit monotonicity

• Conversion Rate: 2 ms for all channels

• Factory Calibration: Calibration data stored in EEPROM

• Diagnostics: Overrange, underrange, open-wire detection, and module health monitoring

• Installation: Occupies a single slot in the Series 90-70 rack

Technical Specifications

• Model Number: IC697ALG320

• Output Channels: 4

• Voltage Output Range: -10V to +10V

• Current Output Range: 0 to 22.2mA (default 4 to 20mA)

• Resolution: 16 bits (312.5 µV per LSB for voltage)

• Accuracy:

  • Voltage: ±0.025% of full scale

  • Current: ±0.025% of full scale

• Power Requirements:

  • 5V DC at 1.66A (8.3W)

  • External 24V DC for current outputs

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CSA, CE

Applications

• Industrial process control requiring precise analog signal outputs

• Driving actuators, valves, and other analog devices

• Systems needing flexible voltage/current output configurations

• Applications demanding high-resolution signal generation

Why Choose the IC697ALG320?

• Flexibility: Each channel can be independently configured for voltage or current output

• Precision: High-resolution 16-bit DAC ensures accurate signal representation

• Reliability: Built-in diagnostics and factory calibration enhance system integrity

• Compatibility: Seamlessly integrates with GE Fanuc Series 90-70 PLC systems

Order Now

The GE Fanuc IC697ALG320 analog output module is available for immediate shipment.
