GE IC697ALG230

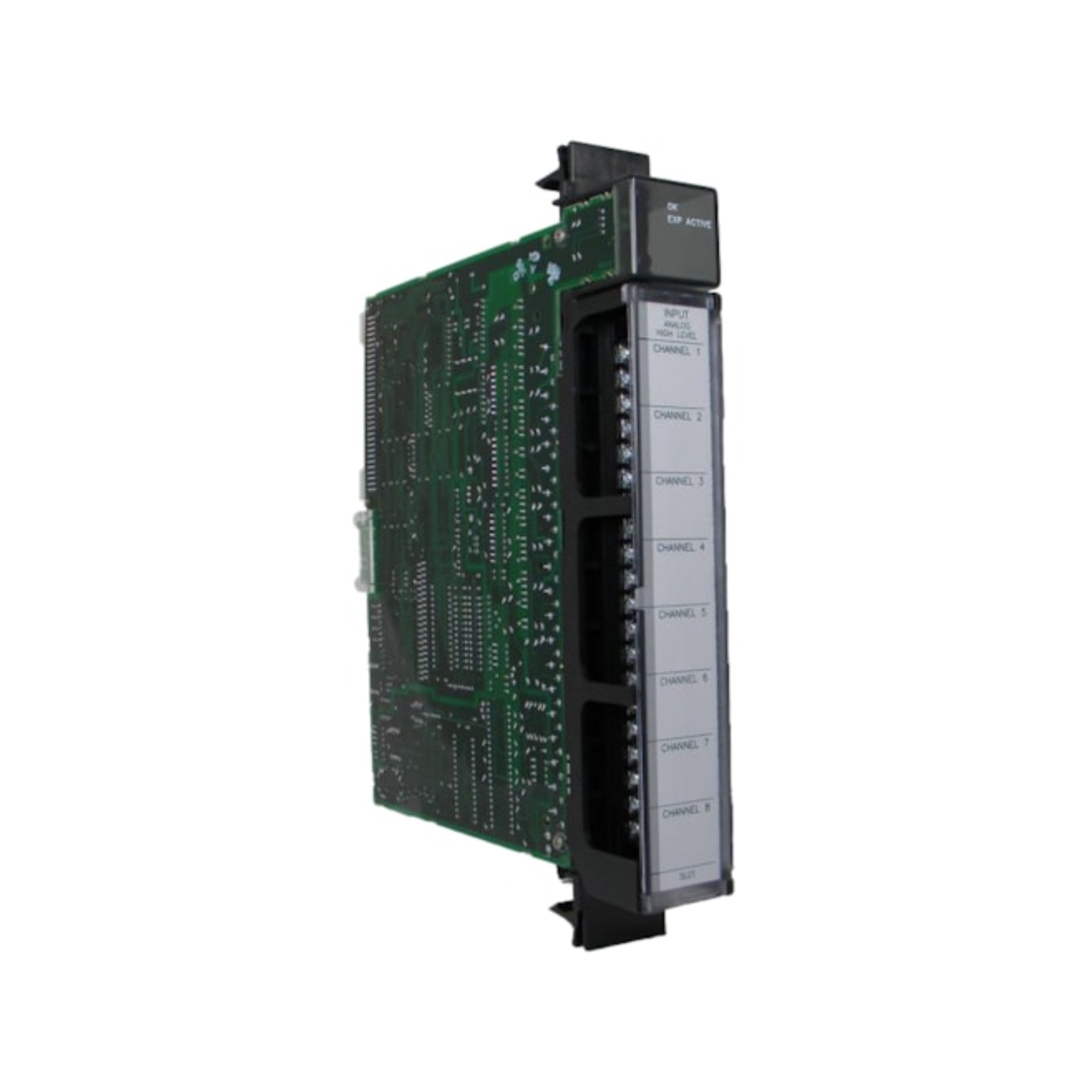

GE Fanuc IC697ALG230 | Series 90-70 Analog Input Module | 8-Channel | 4–20mA Current Input

Overview

The GE Fanuc IC697ALG230 is an 8-channel analog input module for the Series 90-70 PLC platform, designed to receive 4–20mA current loop signals from field transmitters, sensors, and process instruments. It offers accurate signal conversion and scalable integration for industrial automation systems.

Key Features

• Input Type: Analog current (4–20mA)

• Number of Channels: 8

• Resolution: 12-bit (1 in 4096)

• Input Isolation: Individual channel isolation

• Signal Conditioning: Factory-calibrated with user-configurable scaling

• Diagnostics: Channel fault detection and status indicators

Technical Specifications

• Model Number: IC697ALG230

• Input Range: 4–20mA

• Resolution: 12 bits

• Accuracy: ±0.25% of full scale

• Input Impedance: ~250 Ohms

• Backplane Current: 5V @ 250 mA

• Isolation: 1500V between field and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Process control and monitoring

• Industrial automation with current-loop sensors

• Remote transmitter integration (e.g., temperature, flow, pressure)

• OEM machinery with analog signal input needs

Why Choose the IC697ALG230?

• Standard 4–20mA Compatibility: Works with most industrial transmitters

• High Resolution: 12-bit for accurate analog measurement

• Built-In Diagnostics: Enhances system reliability

• Modular Integration: Fits seamlessly into Series 90-70 racks

Order Now

The GE Fanuc IC697ALG230 analog input module is in stock and available for worldwide shipping.

Return to GE IC697 PLC Series 90-70 for more options in this series.
