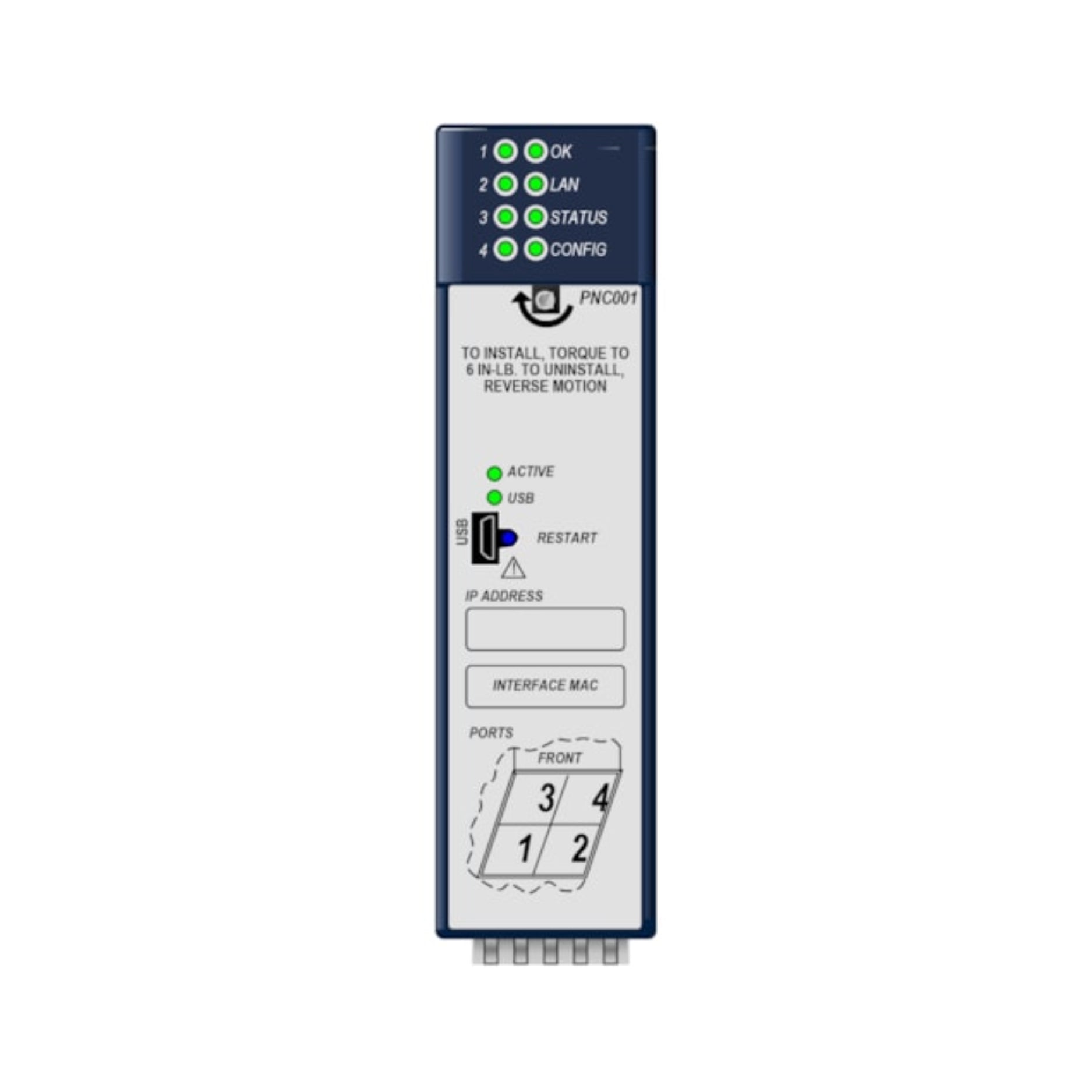

GE IC695PNC001

GE Fanuc IC695PNC001 | RX3i PROFINET Controller Module | Real-Time Ethernet | I/O Network Interface

Overview

The GE Fanuc IC695PNC001 is a PROFINET Controller module for the PACSystems RX3i platform. It provides real-time Ethernet-based I/O communication, allowing RX3i systems to serve as a PROFINET I/O Controller. This module is ideal for high-performance, deterministic industrial networking applications, with support for up to 16 PROFINET devices.

Key Features

• Network Interface: PROFINET RT (Real-Time)

• Device Support: Controls up to 16 PROFINET devices

• Port Configuration: Dual 100 Mbps full-duplex copper Ethernet ports (RJ-45)

• Topology Support: Line/star/ring network topologies

• Diagnostics: LED indicators for module and network status

• Hot-Swappable: Yes (with proper RX3i system configuration)

Technical Specifications

• Model Number: IC695PNC001

• Protocols Supported: PROFINET RT, SNMP, LLDP

• Max Devices: 16 I/O devices per controller

• Baud Rate: 100 Mbps

• Connector Type: Dual RJ-45

• Power Requirements: 5V @ 400 mA

• Operating Temperature: 0°C to 60°C

• Isolation: 1500V port-to-backplane

• Certifications: UL, CE, RoHS

Applications

• Industrial Ethernet I/O network control

• Real-time motion and process automation

• OEM machine control systems

• Distributed I/O architectures using PROFINET protocol

Why Choose the IC695PNC001?

• High-Performance Networking: Real-time deterministic control

• Reliable Device Management: Supports up to 16 PROFINET nodes

• Scalable Ethernet Topology: Flexible star, line, and ring options

• Easy Troubleshooting: Status LEDs and diagnostics built-in

Order Now

The GE Fanuc IC695PNC001 PROFINET controller module is in stock and ready for fast global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
