GE IC695PBS301

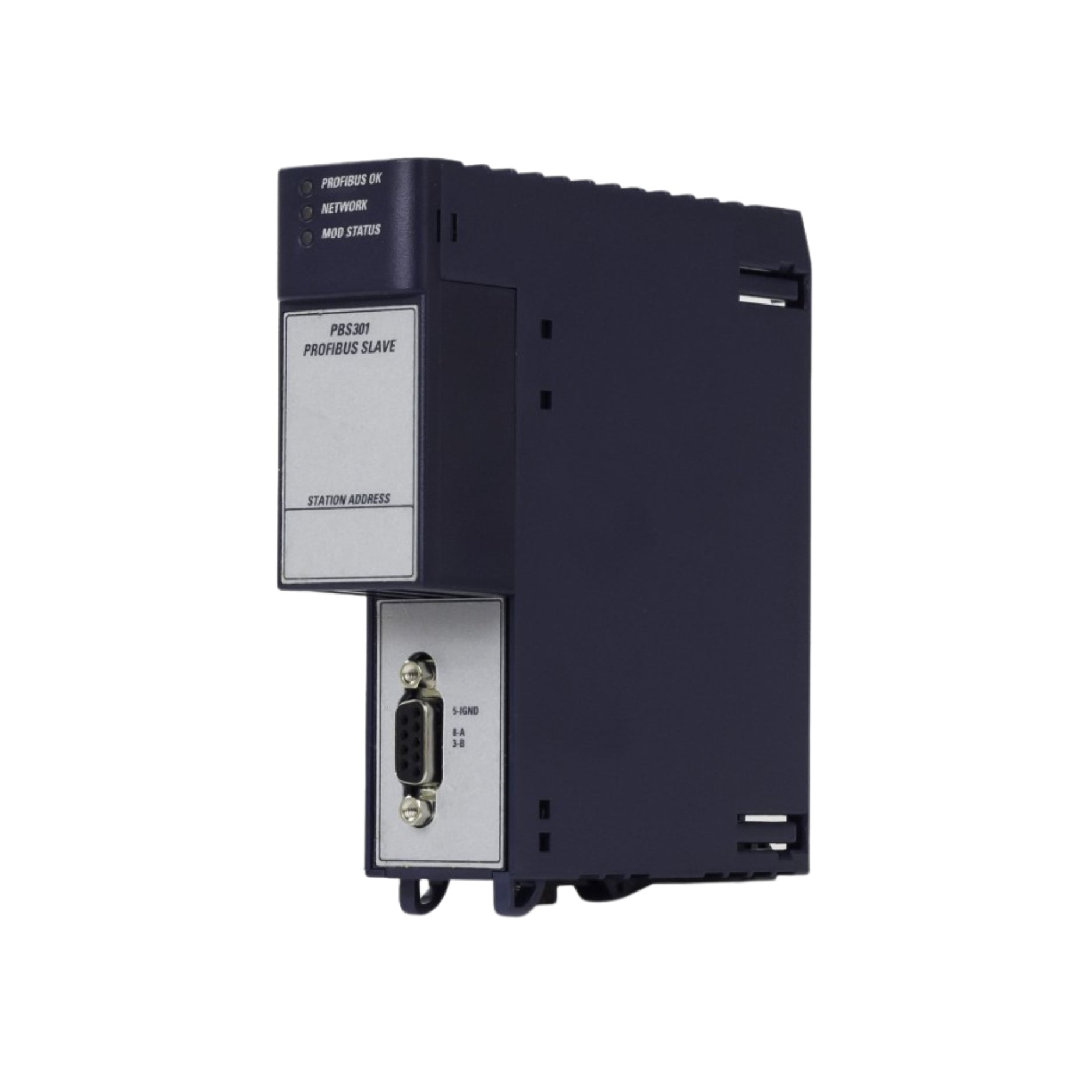

GE Fanuc IC695PBS301 | RX3i PROFIBUS Slave Module | DP Communication | Fieldbus Interface for Distributed Control

Overview

The GE Fanuc IC695PBS301 is a PROFIBUS DP Slave module designed for use with the PACSystems RX3i platform. It enables an RX3i controller rack to act as a slave device on a PROFIBUS network, allowing efficient and deterministic data exchange with PROFIBUS DP masters. This module is ideal for integrating RX3i I/O into third-party PROFIBUS-based control systems.

Key Features

• Function: PROFIBUS DP slave interface for RX3i

• Compatibility: Communicates with PROFIBUS DP-V0 masters

• Baud Rate: Supports 9.6 Kbps to 12 Mbps (auto-detected)

• I/O Data: Up to 244 bytes input and 244 bytes output

• Status LEDs: Indicate module, bus, and communication status

• Hot-Swappable: Yes (in supported RX3i racks)

Technical Specifications

• Model Number: IC695PBS301

• Protocol: PROFIBUS DP-V0 Slave

• Baud Rate: 9.6 Kbps to 12 Mbps

• I/O Capacity: 244 bytes input / 244 bytes output

• Connector: 9-pin D-sub female (standard PROFIBUS interface)

• Power Requirements: 5V @ 400 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Connecting RX3i systems to third-party PROFIBUS DP masters

• Distributed control in factory automation environments

• OEM equipment integration into existing PROFIBUS networks

• Real-time fieldbus data exchange with PLCs and SCADA systems

Why Choose the IC695PBS301?

• Effortless Integration: Connects RX3i I/O to PROFIBUS networks

• High Data Throughput: Up to 244 bytes each of input and output data

• Flexible Speed Detection: Automatically adjusts to master’s baud rate

• Industrial Reliability: Built to perform in demanding environments

Order Now

The GE Fanuc IC695PBS301 PROFIBUS DP slave module is available and ready for fast global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
