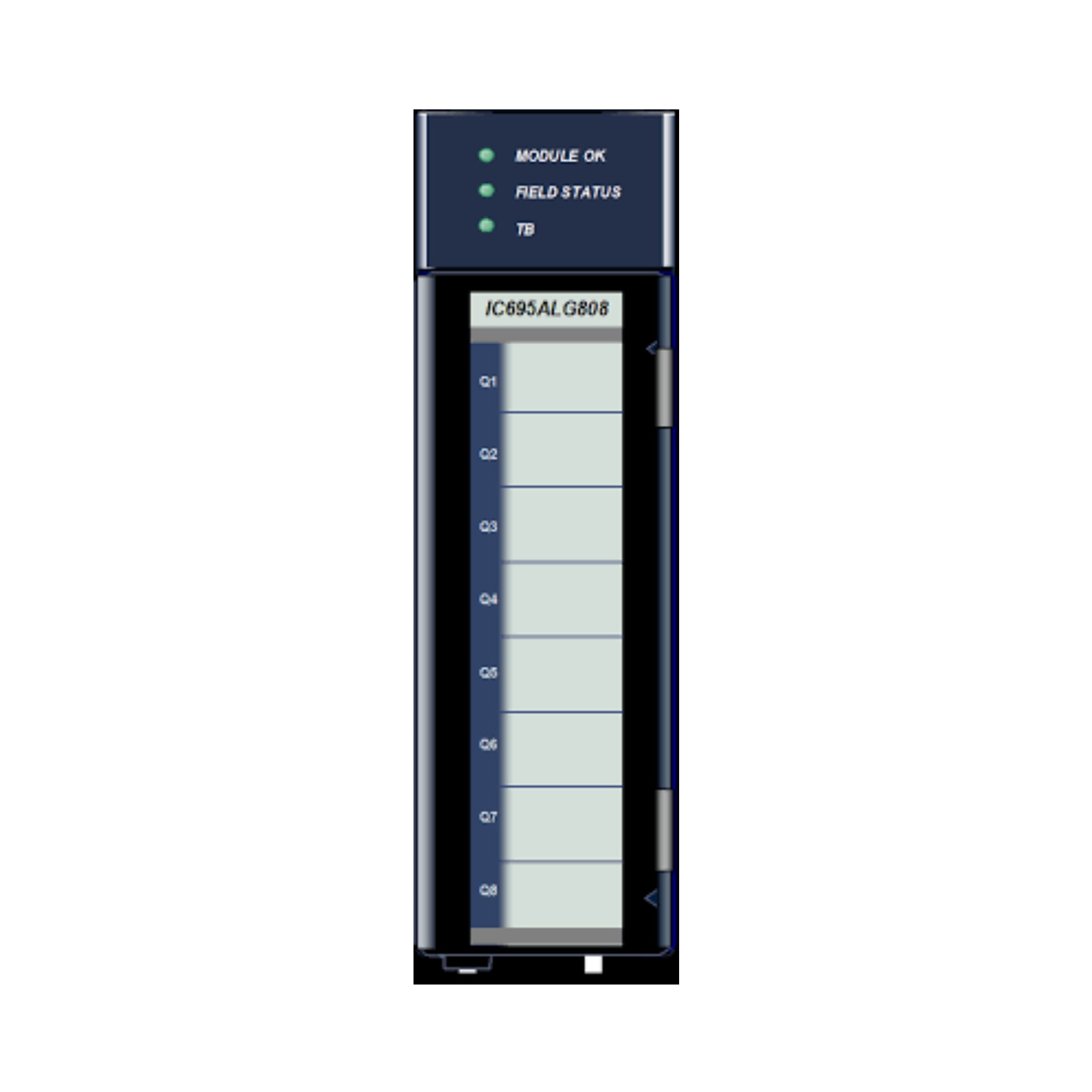

GE Fanuc IC695ALG808 | RX3i Analog Output Module | 8 Channels | Isolated Voltage/Current Outputs | High-Resolution DAC

Overview

The GE Fanuc IC695ALG808 is an 8-channel isolated analog output module for the PACSystems RX3i platform. Each channel can be individually configured for voltage or current output, providing flexible and high-accuracy signal generation. With channel-to-channel isolation and high-resolution digital-to-analog conversion, this module is ideal for critical industrial applications requiring precision and electrical separation.

Key Features

• Output Types: Voltage (0–10V, ±10V) or Current (0–20mA, 4–20mA)

• Channels: 8 independently configurable and isolated outputs

• Resolution: 16-bit DAC

• Channel Isolation: 250V channel-to-channel and to logic

• Diagnostics: Over-range, open wire, and fault detection

• Hot-Swappable: Yes (within supported RX3i systems)

Technical Specifications

• Model Number: IC695ALG808

• Output Ranges:

  • Voltage: 0–10V, ±10V

  • Current: 0–20mA, 4–20mA

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Load Requirements:

  • Voltage: ≥ 1 kΩ

  • Current: ≤ 750 Ω

• Power Requirements: 5V @ 150 mA, 24V @ 260 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• High-precision analog control for process automation

• Signal generation for drives, actuators, and instrumentation

• OEM equipment requiring electrically isolated outputs

• Industrial systems demanding high accuracy and noise immunity

Why Choose the IC695ALG808?

• Individually Isolated Channels: Protects signals from cross-talk and electrical interference

• High Accuracy & Resolution: Perfect for precision analog output needs

• Flexible Output Options: Configurable per channel for voltage or current

• Robust Diagnostics: Built-in fault detection for safer operation

Order Now

The GE Fanuc IC695ALG808 analog output module is available and ready for fast worldwide shipping.
