GE IC695ALG728

GE Fanuc IC695ALG728 | RX3i Analog Input Module | 8 Channels | Isolated | High-Density Voltage/Current Input

Overview

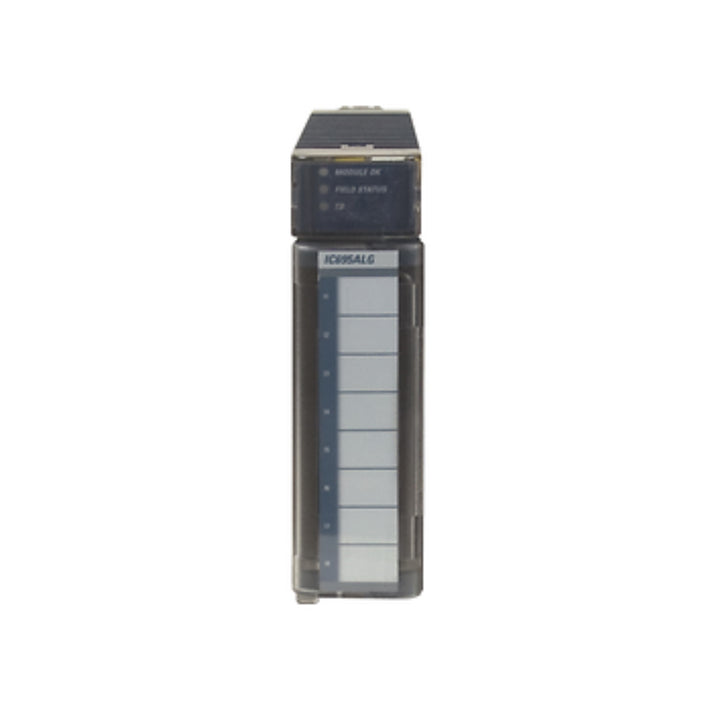

The GE Fanuc IC695ALG728 is a high-density 8-channel analog input module for the PACSystems RX3i platform. It supports both voltage and current input signals, with each channel being individually isolated, ensuring precise measurement and protection in electrically noisy environments. This module is ideal for industrial applications requiring reliable, high-resolution analog data acquisition.

Key Features

• Input Types: Voltage (±10V, 0–10V) and Current (4–20mA, 0–20mA)

• Channels: 8 individually isolated inputs

• Resolution: 16-bit high accuracy

• Channel Configuration: Independent voltage or current per channel

• Diagnostics: Over/under-range detection, open wire detection

• Hot-Swappable: Yes (with supported RX3i systems)

Technical Specifications

• Model Number: IC695ALG728

• Input Ranges:

  • Voltage: 0–10V, ±10V

  • Current: 0–20mA, 4–20mA

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Isolation: 250V per channel (channel-to-channel and channel-to-logic)

• Update Rate: Configurable per channel

• Power Requirements: 5V @ 110 mA, 24V @ 160 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Process control and monitoring

• Sensor and transducer signal acquisition

• Machine automation with analog instrumentation

• OEM equipment needing multi-range analog input

Why Choose the IC695ALG728?

• Fully Isolated Channels: Enhances signal integrity and system safety

• High Accuracy & Resolution: Ideal for precision control applications

• Flexible Input Options: Configurable per channel for voltage or current

• Robust Diagnostics: Simplifies commissioning and troubleshooting

Order Now

The GE Fanuc IC695ALG728 analog input module is in stock and available for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
