GE IC695ALG708

GE Fanuc IC695ALG708 | RX3i Analog Input Module | 8 Channels | Voltage/Current | High-Resolution | Isolated Inputs

Overview

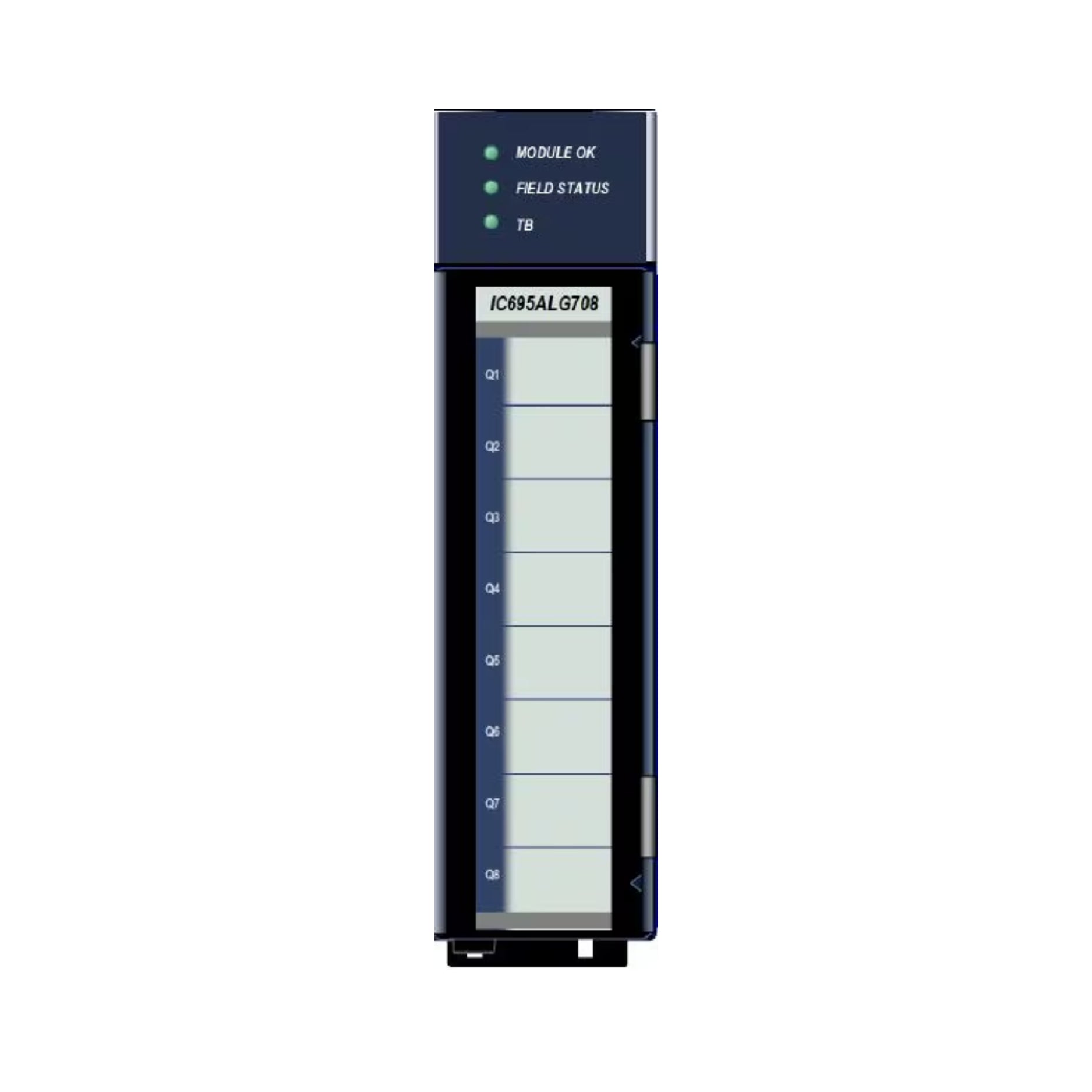

The GE Fanuc IC695ALG708 is an 8-channel analog input module designed for the PACSystems RX3i platform. It provides high-resolution measurements for both voltage and current input ranges, with each channel being individually isolated. This makes the module ideal for demanding industrial environments that require precise analog signal acquisition with minimal noise interference.

Key Features

• Input Types: Voltage (±10V, 0–10V) and Current (4–20mA, 0–20mA)

• Channels: 8 individually isolated analog inputs

• Resolution: 16-bit

• Configurable per Channel: Input type and range selectable via software

• Built-In Diagnostics: Open wire detection, over/under range, and fault LEDs

• Hot-Swappable: Yes (with proper system configuration)

Technical Specifications

• Model Number: IC695ALG708

• Input Ranges:

  • Voltage: ±10V, 0–10V

  • Current: 4–20mA, 0–20mA

• Resolution: 16-bit

• Accuracy: ±0.1% of full scale

• Update Rate: Configurable per channel

• Isolation: 250V per channel (channel-to-channel and channel-to-logic)

• Power Requirements: 5V @ 110 mA, 24V @ 160 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Industrial process control and monitoring

• High-precision sensor and transducer input

• SCADA and DCS systems requiring accurate analog data

• OEM systems with mixed analog input requirements

Why Choose the IC695ALG708?

• Isolated Channels: Superior signal integrity and safety

• Flexible Configuration: Supports both voltage and current signals

• High Accuracy: Ideal for demanding automation environments

• Diagnostics Built-In: Reduces commissioning and troubleshooting time

Order Now

The GE Fanuc IC695ALG708 analog input module is available for immediate global delivery.
