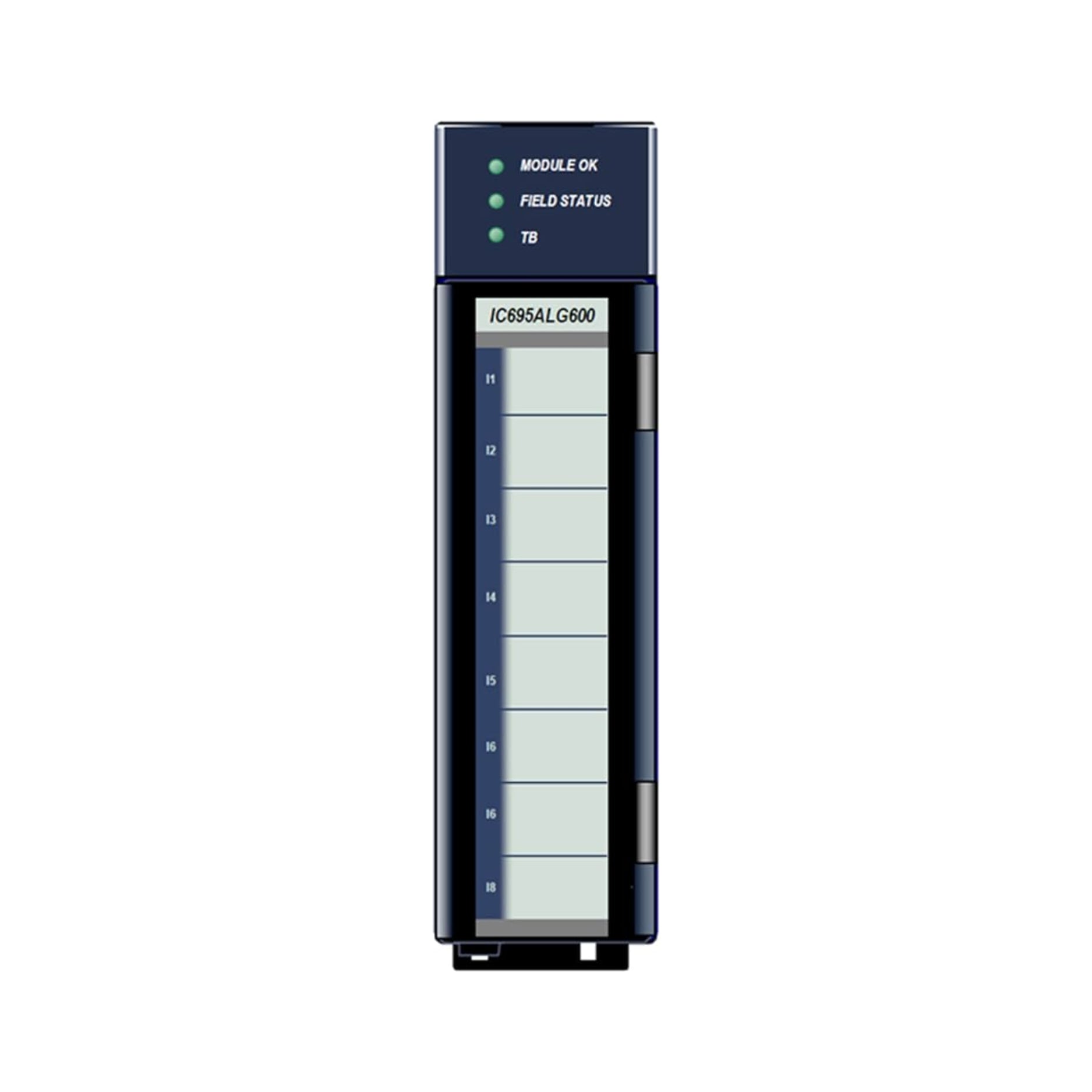

GE IC695ALG600

GE Fanuc IC695ALG600 | RX3i Analog Input Module | 8 Channels | ±10V / 0–10V / 0–5V / 1–5V | High-Resolution Voltage Input

Overview

The GE Fanuc IC695ALG600 is an 8-channel analog voltage input module for the PACSystems RX3i platform. It supports a wide range of voltage input signals including ±10V, 0–10V, 0–5V, and 1–5V, making it ideal for industrial monitoring of analog sensors and devices. With 16-bit resolution and group isolation, this module delivers accurate and reliable signal acquisition in demanding environments.

Key Features

• Input Type: Analog voltage

• Channels: 8 (single-ended, group-isolated)

• Supported Ranges (software-selectable):

  • ±10V

  • 0–10V

  • 0–5V

  • 1–5V

• Resolution: 16-bit A/D conversion

• Diagnostics: Overrange, underrange, open-wire detection

• Hot-Swappable: Yes (in supported RX3i racks)

Technical Specifications

• Model Number: IC695ALG600

• Input Impedance: >100k Ohms

• Accuracy: ±0.1% of full scale

• Update Rate: <2 ms per channel

• Power Requirements: 5V @ 90 mA, 24V @ 85 mA

• Isolation: Group-isolated from backplane and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Monitoring of analog voltage signals from transmitters and sensors

• Process automation in manufacturing, energy, and infrastructure

• OEM systems with multi-range voltage input needs

• High-resolution data acquisition in distributed control systems

Why Choose the IC695ALG600?

• Multi-Range Voltage Input: Supports ±10V, 0–10V, 0–5V, and 1–5V

• High Resolution: 16-bit precision ensures accurate measurements

• Group Isolation: Enhances reliability and reduces electrical noise

• Scalable Design: 8 channels in one compact module

Order Now

The GE Fanuc IC695ALG600 analog input module is in stock and ready for fast global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
