GE IC695ALG106

GE Fanuc IC695ALG106 | RX3i Analog Input Module | 6 Channels | Voltage/Current | High-Resolution Monitoring

Overview

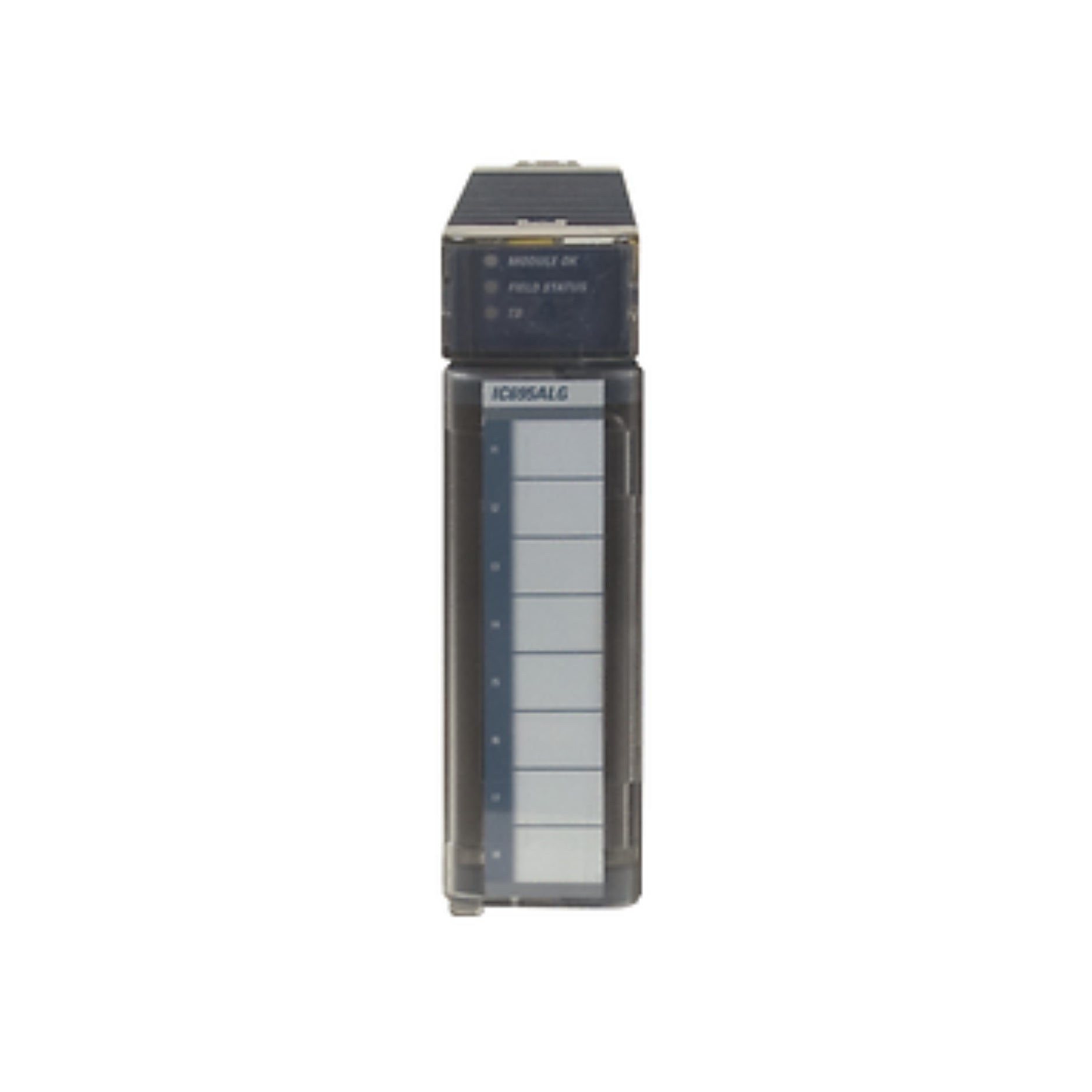

The GE Fanuc IC695ALG106 is a 6-channel analog input module designed for the PACSystems RX3i platform. It accepts both voltage and current signals and provides high-resolution analog-to-digital conversion for accurate signal monitoring. Ideal for industrial applications requiring precise analog input data for process control or monitoring systems.

Key Features

• Input Types: Voltage (±10V, 0–10V) and Current (4–20mA, 0–20mA)

• Channels: 6 configurable analog input channels

• Resolution: 15-bit

• Channel Configuration: Software-selectable per channel

• Diagnostics: Open wire, over/under-range detection

• Hot-Swappable: Yes (with supported RX3i configurations)

Technical Specifications

• Model Number: IC695ALG106

• Input Ranges:

  • Voltage: 0–10V, ±10V

  • Current: 0–20mA, 4–20mA

• Resolution: 15-bit

• Accuracy: ±0.1% of full scale

• Input Impedance: >10 MΩ (voltage), 250 Ω (current)

• Isolation: Group-isolated from logic and other modules

• Power Requirements: 5V @ 100 mA, 24V @ 150 mA

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS

Applications

• Industrial process control and data acquisition

• Machine automation systems with analog instrumentation

• OEM applications requiring mid-range analog signal monitoring

• Integration with SCADA and control systems

Why Choose the IC695ALG106?

• Versatile Signal Input: Accepts voltage or current on all channels

• High-Resolution A/D Conversion: Ensures precision in control applications

• Diagnostic Features: Built-in alarms for signal integrity

• Compact Design: 6 channels in a single-slot RX3i module

Order Now

The GE Fanuc IC695ALG106 analog input module is available and ready for immediate global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
