GE IC694MDL940

GE Fanuc IC694MDL940 | RX3i Relay Output Module | 16 Points | 2A per Point | AC/DC Switching

Overview

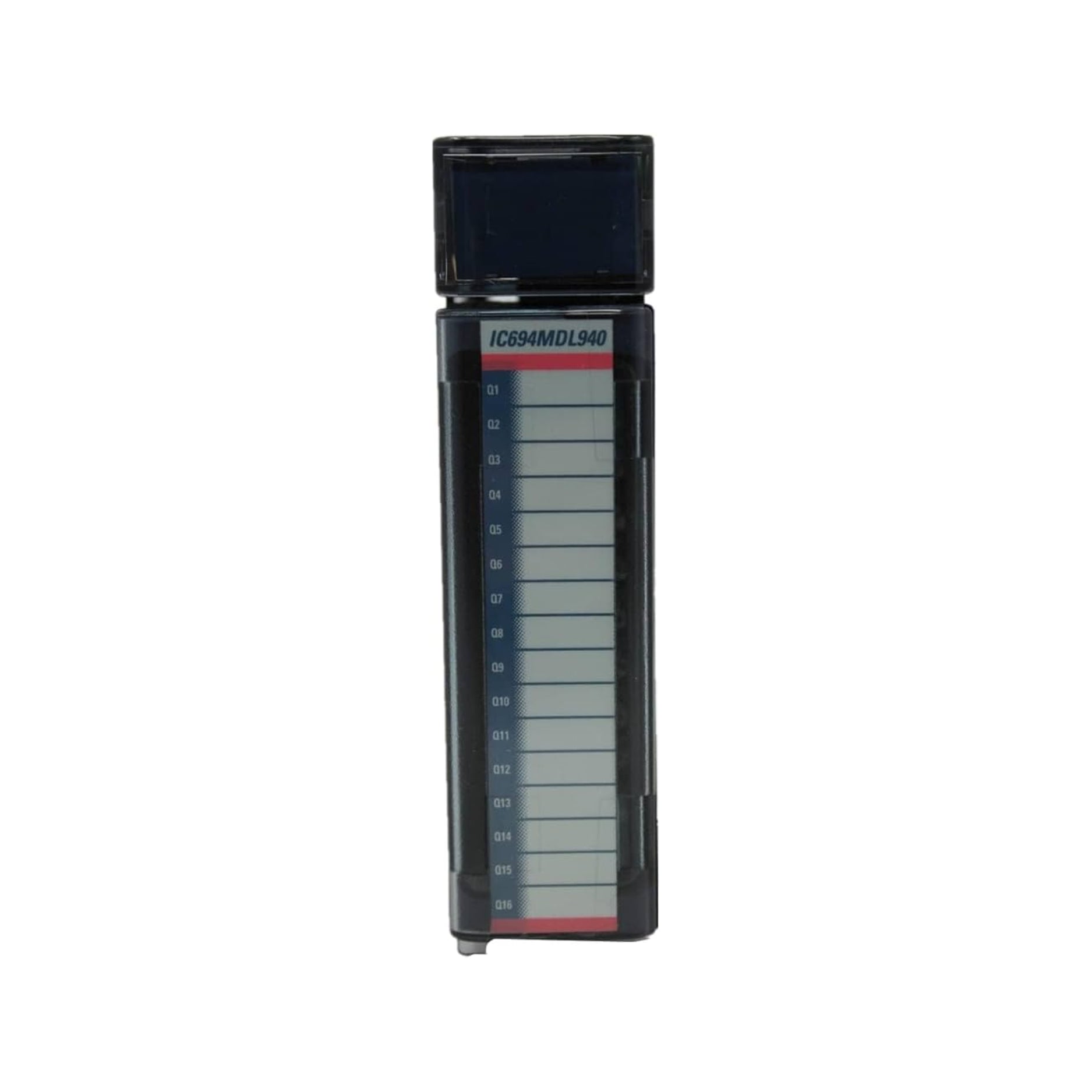

The GE Fanuc IC694MDL940 is a 16-point relay output module for the PACSystems RX3i series. It features Form A (SPST-NO) relay contacts that support both AC and DC loads, offering versatility for a wide range of industrial switching applications. Outputs are arranged in two isolated groups of eight, enabling flexible power domain separation.

Key Features

• Output Type: Relay (Form A, SPST-NO)

• Channels: 16 (2 groups of 8)

• Load Voltage Support: Up to 250VAC / 30VDC

• Current Rating: 2A per output (resistive load)

• Group Isolation: Electrically isolated from logic and each other

• Status Indicators: 16 LEDs (1 per channel)

• Hot-Swappable: Yes (within RX3i systems)

Technical Specifications

• Model Number: IC694MDL940

• Contact Rating: 2A @ 250VAC / 30VDC resistive

• Minimum Load: 10 mA @ 5VDC

• Surge Current: 5A (for 0.1s)

• Relay Contact Life: 100,000 operations at rated load

• Power Requirements: 5V at 110 mA

• Isolation Voltage: 250V between groups and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Switching solenoids, contactors, alarms, pilot lights

• Mixed AC and DC control environments

• Industrial control panels and OEM machines

• Reliable signal switching in remote I/O racks

Why Choose the IC694MDL940?

• Dual Voltage Support: Switches both AC and DC loads

• Group Isolation: Provides electrical protection and noise immunity

• Compact Design: 16 outputs in a single-slot module

• Built-In Diagnostics: LED indicators for each output simplify maintenance

Order Now

The GE Fanuc IC694MDL940 relay output module is available for immediate global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
