GE IC694MDL732

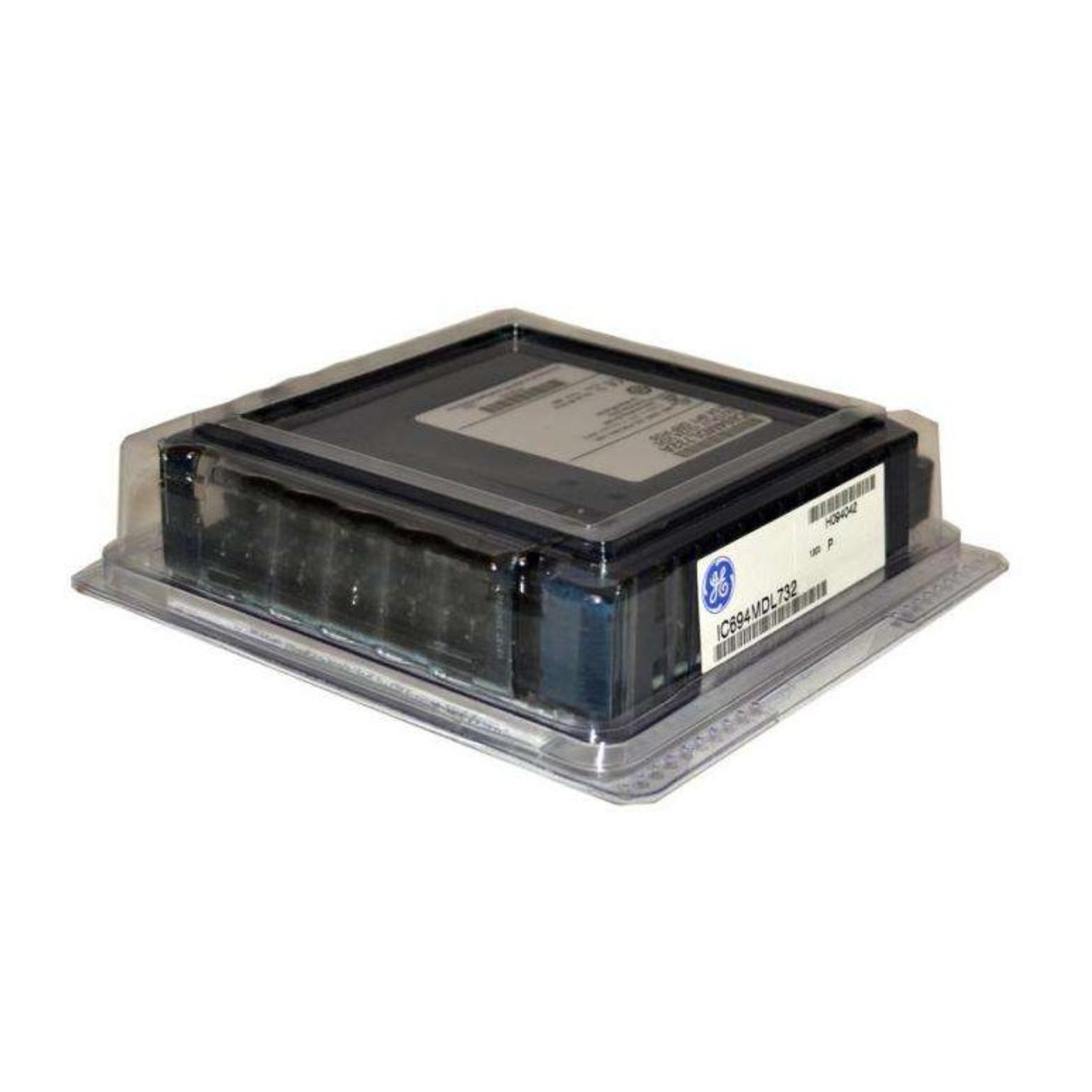

GE Fanuc IC694MDL732 | RX3i 120VAC Discrete Input Module | 32 Points | Group-Isolated Inputs

Overview

The GE Fanuc IC694MDL732 is a 32-point 120VAC discrete input module for the PACSystems RX3i series. Designed for high-density input needs, it features four groups of eight inputs, each group electrically isolated from the others. This allows for greater noise immunity and flexibility in wiring.

Key Features

• Input Type: 120VAC, 60 Hz nominal

• Channels: 32 (divided into 4 isolated groups of 8)

• Response Time: Typical 20 ms ON/OFF

• Status Indicators: 32 green LEDs (one per point)

• Hot-Swappable: Yes (when used with RX3i systems)

• Input Isolation: 1500V between groups and logic

Technical Specifications

• Model Number: IC694MDL732

• Rated Voltage: 120VAC (range: 0–132 VAC)

• On-State Voltage: 74–132 VAC

• Off-State Voltage: 0–20 VAC

• On-State Current (min): 6 mA

• Off-State Current (max): 2.1 mA

• Power Requirements:

  • 5V: 150 mA

• Frequency: 47–63 Hz

• Isolation: 1500V between field groups and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• High-density input monitoring

• Panel installations with multiple voltage domains

• Discrete signal input from switches, pushbuttons, and sensors

• OEM and large-scale automation systems

Why Choose the IC694MDL732?

• High Point Density: 32 inputs in a single module

• Group Isolation: Enhanced electrical noise protection

• Diagnostic LEDs: Simplifies troubleshooting

• Industrial-Grade Reliability: GE Fanuc build quality

Order Now

The GE Fanuc IC694MDL732 module is available for fast global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
