GE IC694MDL645

GE Fanuc IC694MDL645 | RX3i 24VDC Discrete Input Module | 32 Points | Positive Logic

Overview

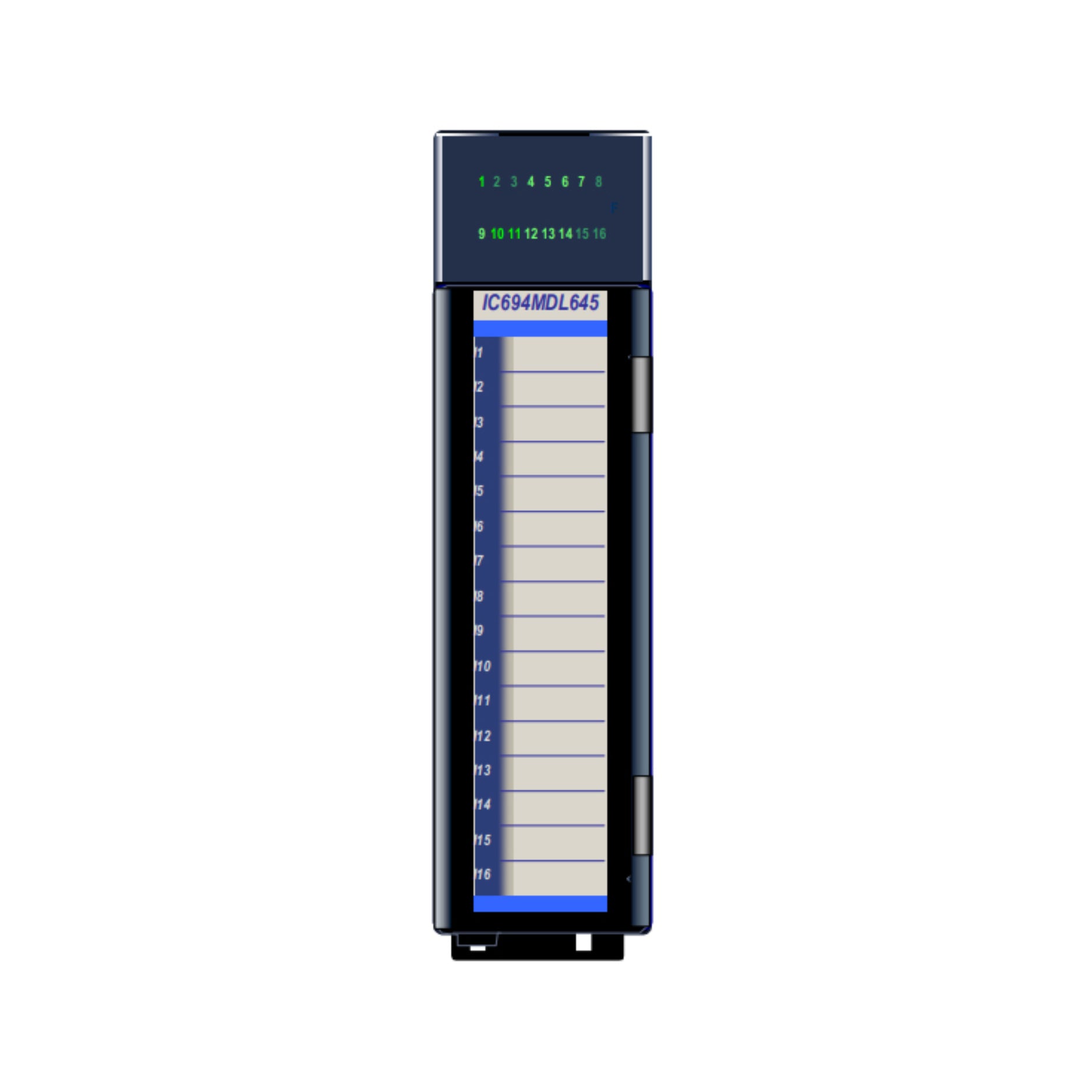

The GE Fanuc IC694MDL645 is a 32-point 24VDC discrete input module for the PACSystems RX3i series. Designed for high-density input requirements, it uses positive logic (sinking inputs) and provides two groups of 16 inputs each, with group isolation for improved signal integrity and flexibility.

Key Features

• Input Type: 24VDC sinking (positive logic)

• Number of Inputs: 32 (2 isolated groups of 16)

• Status Indicators: 32 green LEDs (one per input)

• Hot-Swappable: Yes (within RX3i systems)

• Group Isolation: Electrical isolation between input groups

Technical Specifications

• Model Number: IC694MDL645

• Input Voltage Range: 0–30 VDC

• On-State Voltage: 11.5–30 VDC

• Off-State Voltage: 0–5 VDC

• On-State Current (min): 3.2 mA

• Off-State Current (max): 1.1 mA

• Power Requirements:

  • 5V at 75 mA

• Input Delay (typical): 7 ms ON/OFF

• Group Isolation Voltage: 250V

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• High-density digital input applications

• Sinking (positive logic) sensor signal acquisition

• Machine control panels and OEM automation systems

• Industrial I/O expansion with minimal footprint

Why Choose the IC694MDL645?

• High Input Density: 32 inputs in a single-slot

• Group Isolation: Improves noise immunity and system design flexibility

• Positive Logic Support: Ideal for PLC applications using sinking inputs

• Reliable Diagnostics: LED indicators per point simplify maintenance

Order Now

The GE Fanuc IC694MDL645 is available for global shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
