GE IC694MDL634

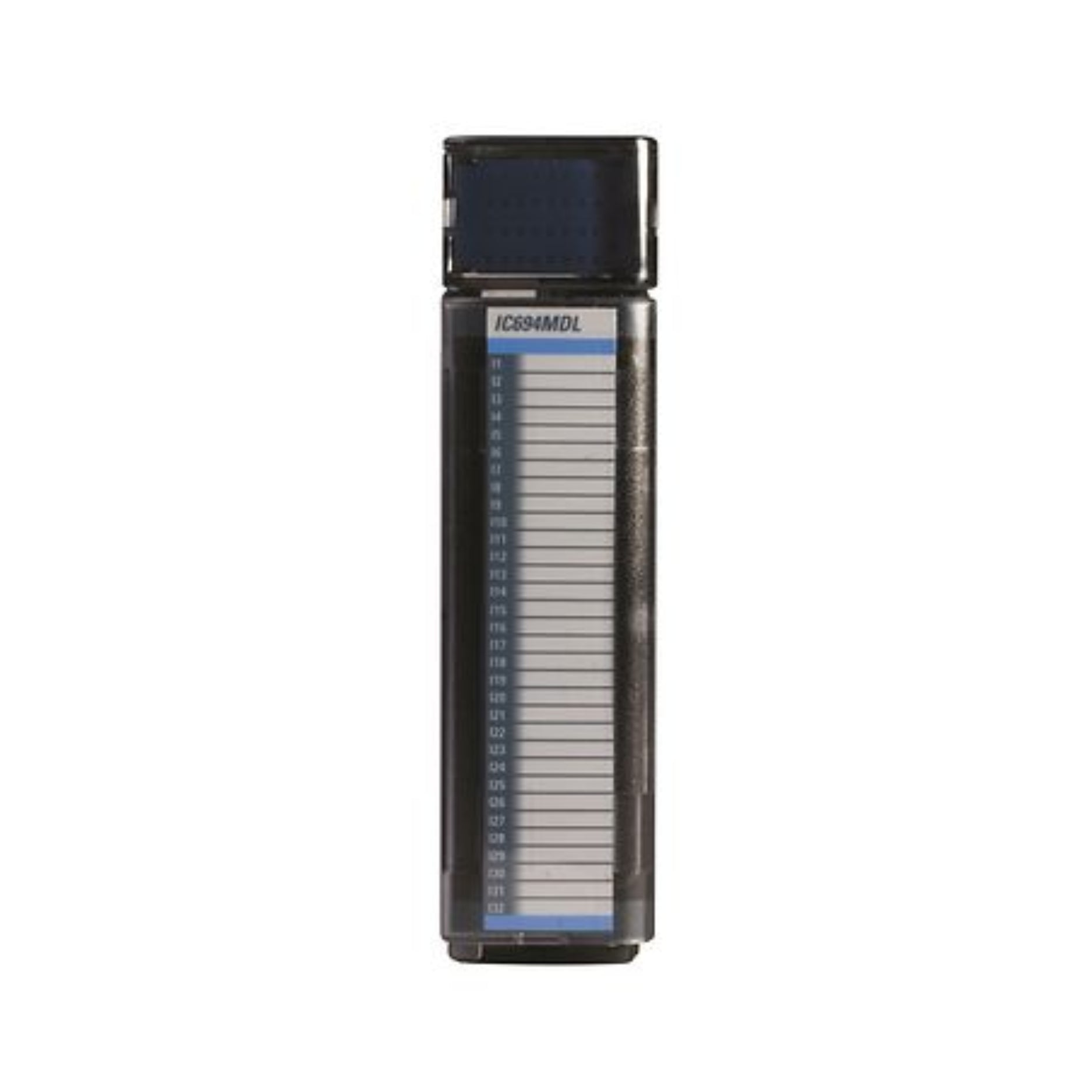

GE Fanuc IC694MDL634 | RX3i 24VDC Discrete Input Module | 8 Points | Positive/Negative Logic

Overview

The GE Fanuc IC694MDL634 is an 8-point 24VDC discrete input module designed for the PACSystems RX3i platform. It supports both positive and negative logic inputs, offering flexible signal compatibility for various industrial sensors and switches.

Key Features

• Input Type: 24VDC (both sinking and sourcing)

• Logic Support: Positive and negative logic

• Channels: 8 isolated inputs (grouped together)

• Response Time: Typical 7 ms ON/OFF

• Indicators: 8 green LEDs for input status

• Hot-Swappable: Yes (when used with RX3i systems)

Technical Specifications

• Model Number: IC694MDL634

• Input Voltage Range: 0–30 VDC

• On-State Voltage: 11.5–30 VDC

• Off-State Voltage: 0–5 VDC

• On-State Current (min): 3.2 mA

• Off-State Current (max): 1.1 mA

• Power Requirements:

  • 5V: 45 mA

  • 24V: 62 mA

• Isolation: 250V between field and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Industrial automation input monitoring

• Discrete signal acquisition from sensors or switches

• OEM machine control panels

• Material handling and packaging equipment

Why Choose the IC694MDL634?

• Dual Logic Support: Works with both sourcing and sinking field devices

• Compact & Efficient: 8 points in a single-slot module

• Reliable Operation: Proven GE quality for continuous industrial use

• Visual Feedback: LED indicators simplify diagnostics and setup

Order Now

The GE Fanuc IC694MDL634 input module is available for fast global delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
