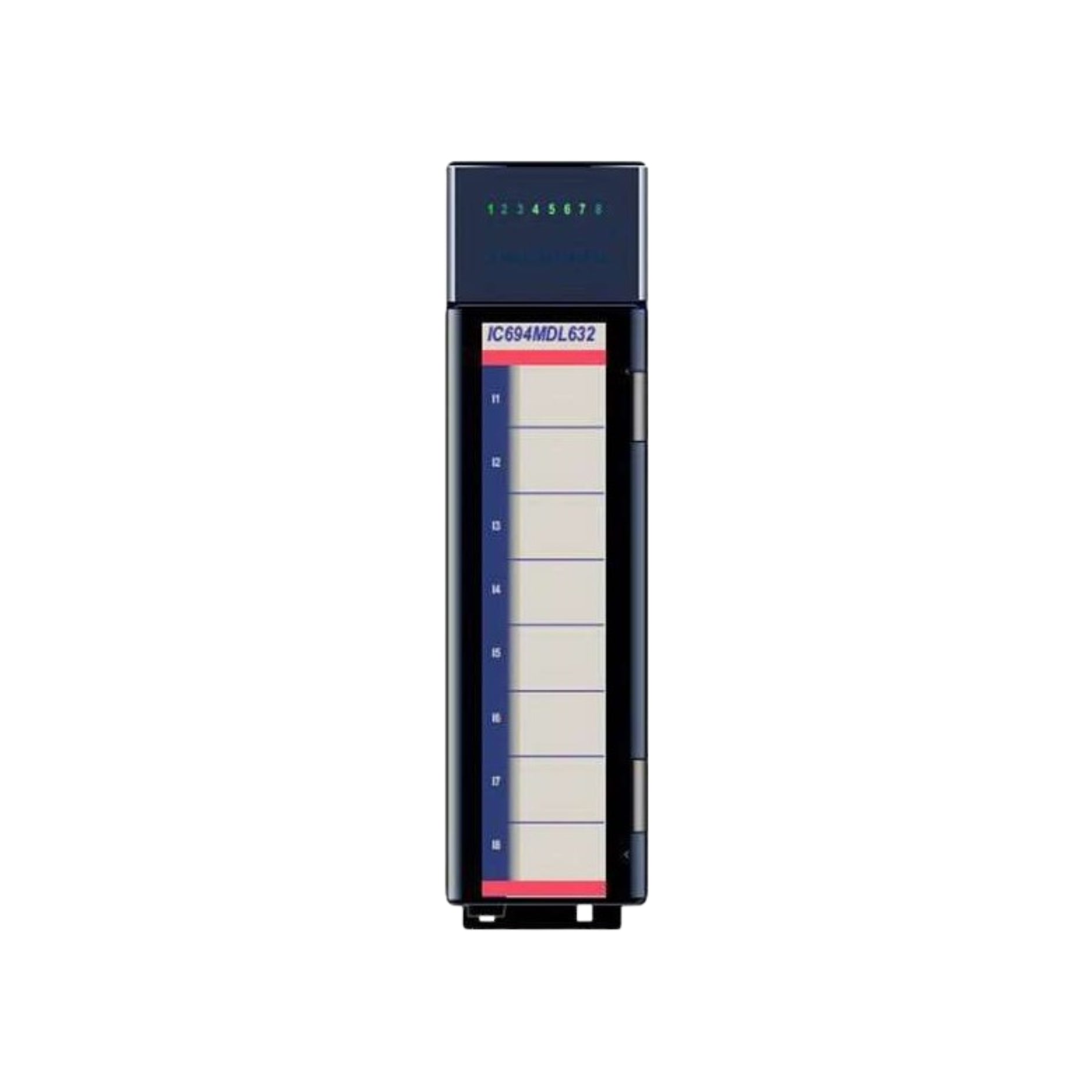

GE Fanuc IC694MDL632 | RX3i 24VDC Discrete Input Module | 16 Points | Positive Logic

Overview

The GE Fanuc IC694MDL632 is a 16-point discrete input module designed for use with the PACSystems RX3i series. It supports positive logic (sinking inputs) and is ideal for acquiring digital signals from pushbuttons, limit switches, proximity sensors, and other 24VDC field devices. The inputs are divided into two isolated groups of eight for noise immunity and flexible field wiring.

Key Features

• Input Type: 24VDC (positive logic, sinking input devices)

• Number of Inputs: 16 (2 groups of 8)

• Status Indicators: 16 green LEDs, one per channel

• Group Isolation: Electrically isolated from each other and logic

• Hot-Swappable: Yes (when used with compatible RX3i hardware)

Technical Specifications

• Model Number: IC694MDL632

• Input Voltage Range: 0–30 VDC

• On-State Voltage: 11.5–30 VDC

• Off-State Voltage: 0–5 VDC

• On-State Current (min): 3.2 mA

• Off-State Current (max): 1.1 mA

• Input Delay (typical): 7 ms ON/OFF

• Power Requirements: 5V at 80 mA

• Isolation Voltage: 250V between groups and logic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

Applications

• Digital signal acquisition from field devices

• Machine automation control panels

• OEM system integration

• Industrial input monitoring for switches and sensors

Why Choose the IC694MDL632?

• Reliable Input Monitoring: Designed for 24VDC digital signal acquisition

• Group Isolation: Reduces cross-talk and enhances system stability

• Compact Design: 16 inputs in a single-slot form factor

• Field-Friendly Diagnostics: Channel LEDs simplify troubleshooting

Order Now

The GE Fanuc IC694MDL632 input module is available and ready to ship worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
