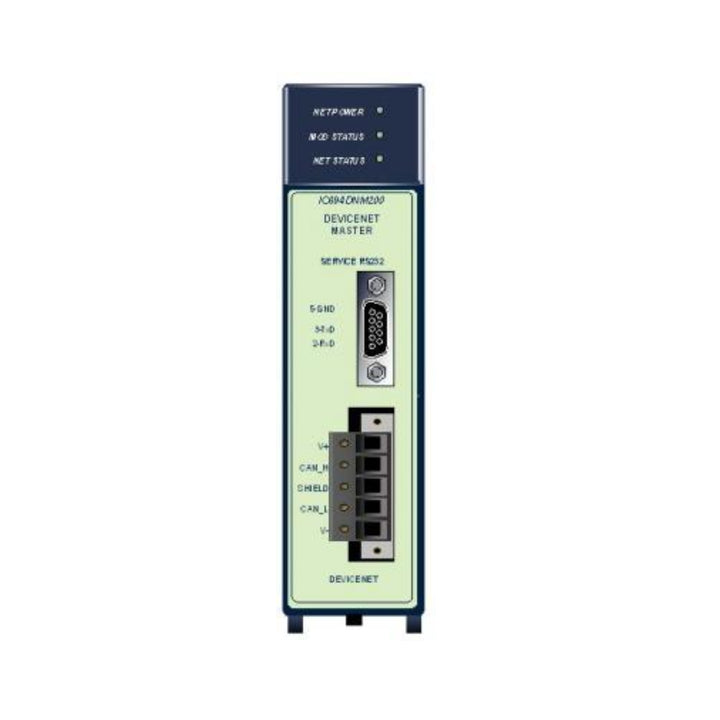

GE IC694DNM200

GE Fanuc IC694DNM200 | RX3i DeviceNet Master Module | Network Interface | Controls Up to 63 Devices

Overview

The GE Fanuc IC694DNM200 is a DeviceNet Master Module designed for the PACSystems RX3i platform. It enables the RX3i controller to operate as a DeviceNet scanner, managing communication with up to 63 DeviceNet slave devices. This module is ideal for integrating industrial sensors, actuators, drives, and other DeviceNet-enabled equipment.

Key Features

• Function: DeviceNet Master (Scanner)

• Max Devices: Supports up to 63 DeviceNet slave nodes

• Baud Rates: 125 Kbps, 250 Kbps, and 500 Kbps

• Network Topology: Supports trunk-line/drop-line configuration

• Diagnostics: Onboard LED indicators for status and communication

• Hot-Swappable: Yes (with supported RX3i systems)

Technical Specifications

• Model Number: IC694DNM200

• Communication Protocol: DeviceNet

• Connector Type: 5-pin removable terminal block (open-style)

• Power Requirements: 5V @ 500 mA

• Isolation: 500V between network and logic

• Supported Message Types: Poll, Bit-Strobe, Change of State (COS), Cyclic

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE, RoHS compliant

Applications

• Industrial communication with DeviceNet field devices

• Integration of drives, sensors, and distributed I/O

• OEM machinery with DeviceNet infrastructure

• Flexible fieldbus solutions in process and factory automation

Why Choose the IC694DNM200?

• Powerful Master Capabilities: Supports up to 63 nodes

• Multiple Baud Rates: Adaptable to legacy and modern networks

• Reliable Diagnostics: Status LEDs and advanced error handling

• Flexible Integration: Seamless with GE RX3i and DeviceNet ecosystems

Order Now

The GE Fanuc IC694DNM200 DeviceNet master module is in stock and available for immediate global shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
