GE Fanuc IC694CHS392 | RX3i Universal Backplane | 10 Slots | Standard Baseplate for PACSystems Modules

Overview

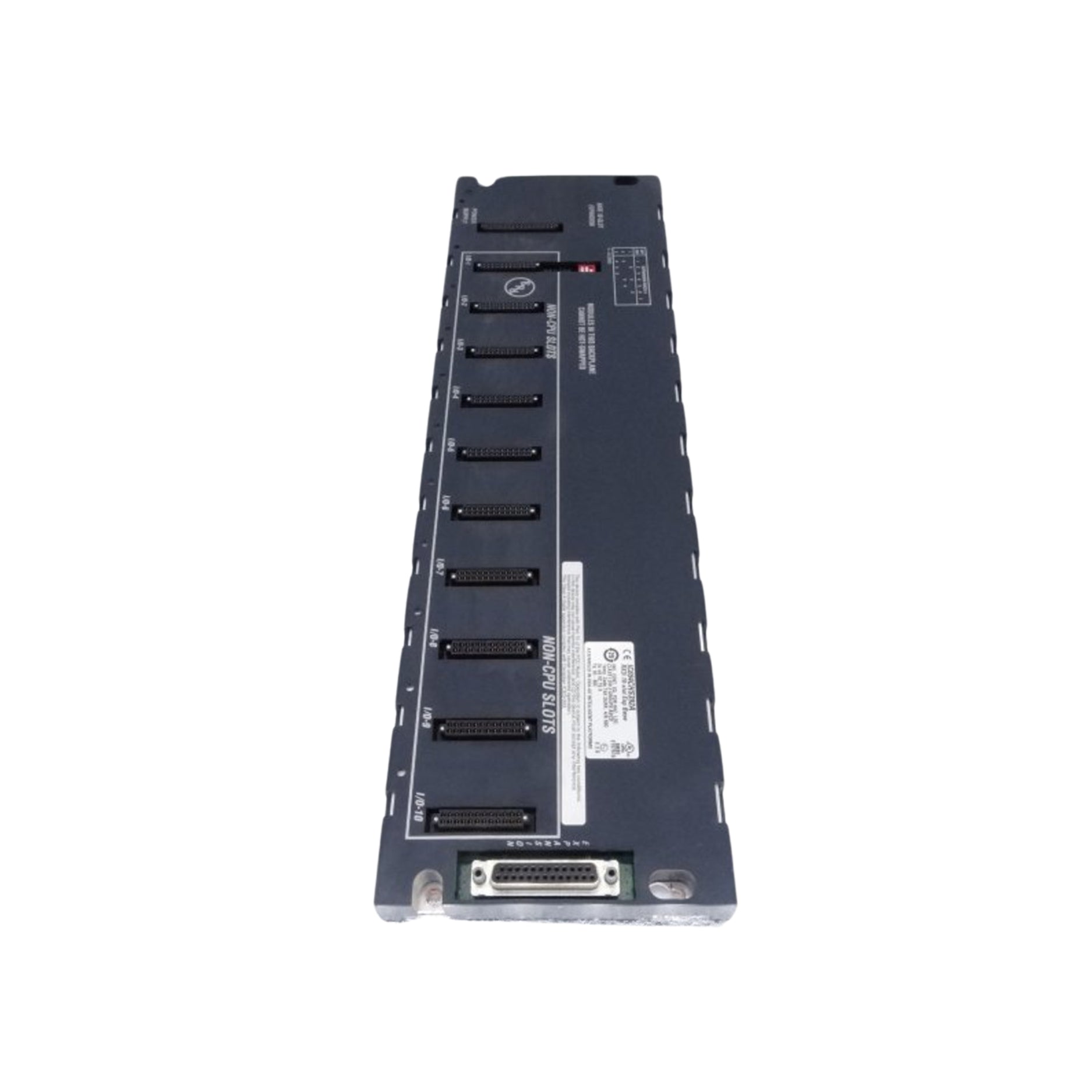

The GE Fanuc IC694CHS392 is a 10-slot universal backplane for the PACSystems RX3i series. It provides the physical and electrical foundation for mounting RX3i modules such as CPUs, power supplies, and I/O modules. The backplane ensures high-speed data communication and stable power distribution across installed components.

Key Features

• Backplane Type: Universal RX3i baseplate

• Slot Count: 10 module slots

• Mounting: Panel mount with standard brackets

• Power Bus: Supports 5V and 3.3V backplane power

• Hot-Swappable Support: Yes (for compatible modules)

• Mechanical Keying: Prevents incorrect module placement

• High-Speed Bus: Enables fast communication between CPU and modules

Technical Specifications

• Model Number: IC694CHS392

• Number of Slots: 10

• Power Distribution: Supports RX3i power supply modules

• Dimensions: Approx. 13.3 in. (W) × 5.25 in. (H) × 5.75 in. (D)

• Operating Temperature: 0°C to 60°C

• Certifications: UL, CE

• Compatible Series: PACSystems RX3i CPUs, I/O, and communication modules

Applications

• RX3i main control racks

• Mid-size and large industrial automation panels

• OEM systems requiring centralized control

• Distributed control architectures needing reliable module interconnection

Why Choose the IC694CHS392?

• High Capacity: Accommodates up to 10 RX3i modules

• Expandable Design: Supports CPUs, I/O, and comm modules

• Reliable Connectivity: Stable mechanical and electrical interface

• Ease of Integration: Standard panel mounting and GE PACSystems compatibility

Order Now

The GE Fanuc IC694CHS392 10-slot backplane is available for fast global shipping.
